SDO HMI 2014-08-03 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.30 | 112.81 | 19.30 | 61.59 | -18.79 | 238.54 | 0.49 | 181.15 | 0.4221 | 115.8 | -64.3 | |
|
previous
or next observation for the same group /

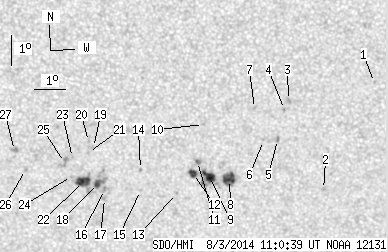

back to the solar disc SDO HMI 2014-08-03 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.49 | -15.91 | 245.46 | 7.41 | 198.47 | 0.3931 | 870.0 | 643.8 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -19.45 | 243.95 | 5.90 | 192.75 | 0.4408 | 737.0 | 512.8 | |
| 0.00 | 2.62 | 0.00 | 1.41 | -16.47 | 242.74 | 4.69 | 191.63 | 0.3904 | 761.0 | 623.9 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -16.76 | 242.62 | 4.57 | 191.18 | 0.3947 | 923.0 | 686.9 | |
| 0.00 | 2.17 | 0.00 | 1.18 | -17.75 | 242.42 | 4.36 | 190.23 | 0.4097 | 815.0 | 719.2 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -17.78 | 241.97 | 3.92 | 189.19 | 0.4090 | 749.0 | 662.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -16.72 | 241.66 | 3.61 | 188.90 | 0.3914 | 850.0 | 653.4 | |
| 10.14 | 14.48 | 5.55 | 7.93 | -19.08 | 240.90 | 2.85 | 186.34 | 0.4271 | 952.0 | 710.2 | |
| 8.42 | 27.78 | 4.60 | 15.19 | -18.97 | 240.26 | 2.20 | 184.93 | 0.4245 | 1098.6 | 648.2 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.24 | 240.05 | 1.99 | 184.82 | 0.3966 | 838.0 | 570.8 | |
| 0.54 | 2.99 | 0.30 | 1.63 | -18.47 | 239.87 | 1.81 | 184.15 | 0.4160 | 955.0 | 829.3 | |
| 4.07 | -9.00 | 2.22 | -9.00 | -18.87 | 239.74 | 1.69 | 183.80 | 0.4222 | 997.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -19.54 | 239.20 | 1.14 | 182.51 | 0.4324 | -671.0 | -379.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.73 | 238.04 | -0.02 | 179.96 | 0.4191 | 642.0 | 497.2 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -19.44 | 238.04 | -0.02 | 179.96 | 0.4303 | -575.0 | -460.7 | |
| 0.00 | 3.35 | 0.00 | 1.84 | -19.40 | 236.88 | -1.18 | 177.40 | 0.4302 | -955.0 | -636.4 | |
| 0.00 | 2.99 | 0.00 | 1.64 | -19.71 | 236.87 | -1.18 | 177.43 | 0.4350 | -613.0 | -496.5 | |
| 3.17 | 11.95 | 1.73 | 6.53 | -19.20 | 236.65 | -1.40 | 176.88 | 0.4272 | -920.1 | -623.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.00 | 236.54 | -1.52 | 176.44 | 0.4082 | -799.0 | -555.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.80 | 236.38 | -1.68 | 176.04 | 0.4051 | -735.0 | -592.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -18.16 | 236.37 | -1.68 | 176.09 | 0.4110 | -893.0 | -672.2 | |
| 8.96 | 17.29 | 4.90 | 9.46 | -19.14 | 236.20 | -1.85 | 175.88 | 0.4266 | -1060.9 | -702.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.33 | 235.86 | -2.20 | 174.94 | 0.4143 | -785.0 | -666.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.97 | 235.82 | -2.24 | 174.99 | 0.4244 | -839.0 | -629.4 | |
| 0.00 | 5.79 | 0.00 | 3.15 | -18.50 | 235.60 | -2.46 | 174.39 | 0.4173 | -790.0 | -777.3 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -18.74 | 234.34 | -3.71 | 171.64 | 0.4236 | -856.0 | -559.3 | |
| 0.00 | 3.62 | 0.00 | 1.97 | -18.11 | 234.00 | -4.05 | 170.63 | 0.4144 | -895.0 | -759.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
