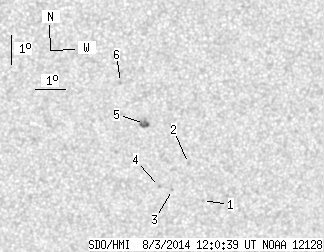

SDO HMI 2014-08-03 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.85 | 0.00 | 7.29 | -21.04 | 249.10 | 11.59 | 202.53 | 0.4908 | 779.2 | 709.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.53 | -23.12 | 250.87 | 13.37 | 203.76 | 0.5298 | 596.0 | 519.2 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -21.82 | 250.27 | 12.77 | 203.89 | 0.5088 | 638.0 | 532.4 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -22.71 | 249.82 | 12.31 | 202.40 | 0.5182 | 701.0 | 586.6 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -22.59 | 249.37 | 11.86 | 201.76 | 0.5141 | 758.0 | 567.5 | |
| 0.00 | 6.97 | 0.00 | 3.93 | -20.42 | 248.69 | 11.19 | 202.36 | 0.4799 | 1146.0 | 841.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -19.01 | 247.81 | 10.30 | 201.92 | 0.4549 | 836.0 | 571.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
