SDO HMI 2014-08-03 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.30 | 86.44 | 17.70 | 47.21 | -18.78 | 238.94 | 1.99 | 184.51 | 0.4233 | 136.1 | 68.5 | |
|
previous
or next observation for the same group /

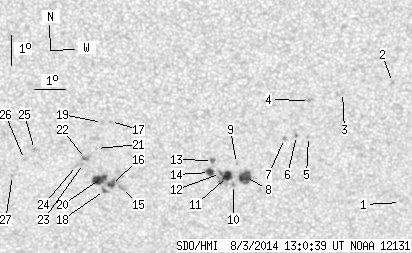

back to the solar disc SDO HMI 2014-08-03 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.20 | -20.00 | 245.97 | 9.02 | 198.67 | 0.4622 | 474.0 | 433.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -15.99 | 245.52 | 8.56 | 201.03 | 0.4006 | 854.0 | 609.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -16.30 | 243.93 | 6.98 | 197.16 | 0.3969 | 598.0 | 493.3 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -16.54 | 242.89 | 5.93 | 194.54 | 0.3962 | 937.0 | 684.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -17.74 | 242.89 | 5.94 | 193.80 | 0.4147 | 756.0 | 612.8 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -17.70 | 242.50 | 5.55 | 192.96 | 0.4126 | 740.0 | 616.6 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -17.79 | 242.12 | 5.17 | 192.04 | 0.4128 | 854.0 | 701.8 | |
| 9.68 | 13.30 | 5.31 | 7.29 | -19.08 | 240.90 | 3.95 | 188.75 | 0.4295 | 898.6 | 693.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.61 | 240.60 | 3.65 | 188.26 | 0.4214 | 585.0 | 559.5 | |
| 0.00 | 2.08 | 0.00 | 1.14 | -19.32 | 240.52 | 3.56 | 187.83 | 0.4323 | 705.0 | 569.3 | |
| 6.70 | 18.10 | 3.67 | 9.91 | -19.05 | 240.32 | 3.37 | 187.49 | 0.4276 | 1090.1 | 676.8 | |
| 0.54 | -11.00 | 0.30 | -11.00 | -18.94 | 240.09 | 3.14 | 187.02 | 0.4255 | 1171.2 | 999999 | |
| 0.63 | 1.99 | 0.35 | 1.08 | -18.51 | 239.83 | 2.87 | 186.56 | 0.4181 | 962.9 | 790.3 | |
| 3.44 | 5.52 | 1.88 | 3.02 | -18.91 | 239.74 | 2.78 | 186.24 | 0.4243 | 987.0 | 742.4 | |
| 0.00 | 3.62 | 0.00 | 1.98 | -19.40 | 236.94 | -0.02 | 179.97 | 0.4297 | -649.0 | -617.5 | |
| 2.99 | 5.34 | 1.64 | 2.92 | -19.30 | 236.58 | -0.37 | 179.18 | 0.4282 | -904.8 | -768.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -17.20 | 236.56 | -0.40 | 179.04 | 0.3946 | -804.0 | -618.7 | |
| 0.00 | 3.35 | 0.00 | 1.84 | -19.50 | 236.36 | -0.60 | 178.69 | 0.4314 | -724.0 | -581.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -17.23 | 236.30 | -0.65 | 178.42 | 0.3952 | -798.0 | -675.1 | |
| 8.32 | 11.13 | 4.55 | 6.09 | -19.13 | 236.20 | -0.76 | 178.31 | 0.4257 | -1049.0 | -800.4 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -18.09 | 236.11 | -0.85 | 178.03 | 0.4092 | -702.0 | -695.0 | |
| 0.00 | 3.44 | 0.00 | 1.87 | -18.43 | 235.75 | -1.20 | 177.24 | 0.4147 | -967.0 | -845.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.59 | 235.69 | -1.27 | 177.11 | 0.4175 | -574.0 | -631.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.66 | 235.46 | -1.49 | 176.61 | 0.4187 | -707.0 | -566.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.13 | 234.12 | -2.83 | 173.43 | 0.4121 | -970.0 | -680.9 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -18.47 | 233.79 | -3.16 | 172.79 | 0.4181 | -753.0 | -638.2 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -19.00 | 233.40 | -3.56 | 172.08 | 0.4274 | -646.0 | -595.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
