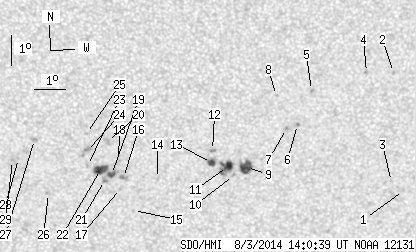

SDO HMI 2014-08-03 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.85 | 98.10 | 16.90 | 53.62 | -18.86 | 238.59 | 2.19 | 184.90 | 0.4252 | 81.7 | -66.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.86 | -19.94 | 246.04 | 9.64 | 199.89 | 0.4645 | 792.0 | 583.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -16.00 | 245.51 | 9.11 | 202.22 | 0.4039 | 655.0 | 583.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -19.63 | 245.63 | 9.23 | 199.34 | 0.4579 | 637.0 | 434.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -15.98 | 244.64 | 8.24 | 200.31 | 0.3987 | 881.0 | 767.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -16.55 | 242.91 | 6.50 | 195.87 | 0.3987 | 900.0 | 816.6 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -17.67 | 242.49 | 6.09 | 194.19 | 0.4142 | 829.0 | 742.7 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -17.80 | 242.15 | 5.74 | 193.34 | 0.4149 | 812.0 | 725.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -16.70 | 241.79 | 5.39 | 193.18 | 0.3965 | 863.0 | 710.4 | |
| 9.59 | 13.84 | 5.26 | 7.59 | -19.09 | 240.89 | 4.49 | 189.93 | 0.4309 | 895.4 | 664.5 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -19.35 | 240.48 | 4.08 | 188.94 | 0.4340 | 625.0 | 497.0 | |
| 7.51 | 15.92 | 4.11 | 8.73 | -19.05 | 240.28 | 3.88 | 188.61 | 0.4288 | 1088.1 | 684.6 | |
| 0.00 | 2.26 | 0.00 | 1.23 | -18.51 | 239.79 | 3.39 | 187.71 | 0.4192 | 1016.0 | 813.2 | |
| 3.35 | 6.42 | 1.83 | 3.51 | -18.91 | 239.76 | 3.36 | 187.52 | 0.4254 | 988.4 | 786.4 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -19.44 | 238.03 | 1.63 | 183.58 | 0.4311 | -359.0 | -430.7 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -20.52 | 237.26 | 0.86 | 181.80 | 0.4475 | -541.0 | -381.3 | |
| 0.00 | 4.34 | 0.00 | 2.38 | -19.40 | 236.93 | 0.53 | 181.17 | 0.4298 | -739.0 | -605.4 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -19.77 | 236.84 | 0.43 | 180.94 | 0.4356 | -543.0 | -471.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.83 | 236.77 | 0.37 | 180.83 | 0.4207 | -665.0 | -457.0 | |
| 2.53 | 17.28 | 1.39 | 9.45 | -19.30 | 236.54 | 0.14 | 180.32 | 0.4281 | -935.8 | -786.2 | |
| 0.00 | 3.89 | 0.00 | 2.11 | -18.19 | 236.42 | 0.02 | 180.04 | 0.4105 | -818.0 | -731.3 | |
| 0.00 | 1.99 | 0.00 | 1.09 | -19.50 | 236.32 | -0.08 | 179.82 | 0.4313 | -704.0 | -609.5 | |
| 7.87 | -19.00 | 4.31 | -19.00 | -19.13 | 236.19 | -0.21 | 179.53 | 0.4255 | -1063.6 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -18.99 | 235.77 | -0.63 | 178.59 | 0.4234 | -790.0 | -501.5 | |
| 0.00 | 5.70 | 0.00 | 3.10 | -18.52 | 235.74 | -0.66 | 178.49 | 0.4160 | -888.0 | -792.9 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -17.92 | 235.75 | -0.66 | 178.46 | 0.4064 | -635.0 | -585.6 | |
| 0.00 | 1.99 | 0.00 | 1.10 | -19.94 | 234.51 | -1.90 | 175.92 | 0.4393 | -584.0 | -479.5 | |
| 0.00 | 3.26 | 0.00 | 1.77 | -18.13 | 234.08 | -2.32 | 174.61 | 0.4112 | -960.0 | -676.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -18.76 | 233.56 | -2.85 | 173.58 | 0.4222 | -750.0 | -623.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.83 | 233.36 | -3.04 | 173.17 | 0.4236 | -796.0 | -597.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
