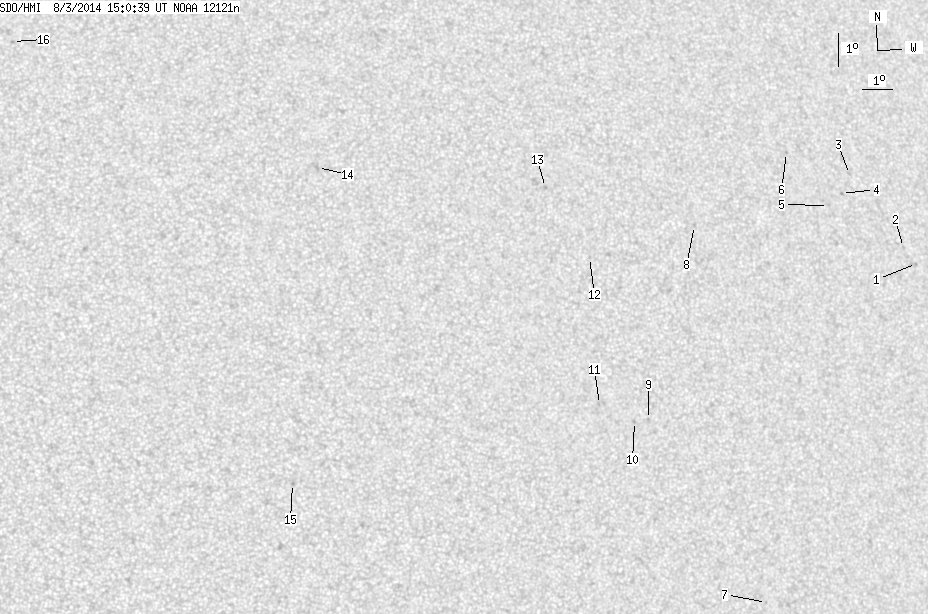

SDO HMI 2014-08-03 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.56 | 0.00 | 10.86 | 14.08 | 260.11 | 24.26 | 293.14 | 0.4379 | 133.7 | 91.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.60 | 13.57 | 270.46 | 34.62 | 285.26 | 0.5745 | -689.0 | -612.7 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 14.09 | 270.06 | 34.21 | 286.27 | 0.5702 | -682.0 | -571.8 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 16.44 | 268.44 | 32.59 | 290.96 | 0.5554 | -534.0 | -452.2 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 15.88 | 268.04 | 32.19 | 290.13 | 0.5478 | -738.0 | -629.9 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 15.53 | 267.49 | 31.64 | 289.75 | 0.5391 | -583.0 | -473.4 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 17.25 | 266.24 | 30.39 | 293.45 | 0.5287 | -657.0 | -532.2 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 3.56 | 264.08 | 28.24 | 266.45 | 0.4750 | 718.0 | 585.9 | |
| 0.00 | 1.72 | 0.00 | 0.96 | 15.16 | 262.58 | 26.73 | 291.48 | 0.4685 | -695.0 | -546.4 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 9.31 | 260.37 | 24.52 | 279.42 | 0.4169 | 670.0 | 478.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 9.27 | 259.89 | 24.05 | 279.44 | 0.4094 | 810.0 | 680.4 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 9.83 | 258.76 | 22.91 | 281.20 | 0.3927 | 805.0 | 542.4 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 14.34 | 258.84 | 22.99 | 292.14 | 0.4102 | 506.0 | 455.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 16.55 | 257.59 | 21.74 | 298.30 | 0.4049 | 789.0 | 669.2 | |
| 0.00 | 2.35 | 0.00 | 1.23 | 17.41 | 250.04 | 14.20 | 310.78 | 0.3104 | 778.0 | 671.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 7.75 | 248.71 | 12.86 | 278.81 | 0.2241 | 759.0 | 625.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 21.53 | 240.30 | 4.45 | 344.97 | 0.2797 | 882.0 | 665.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
