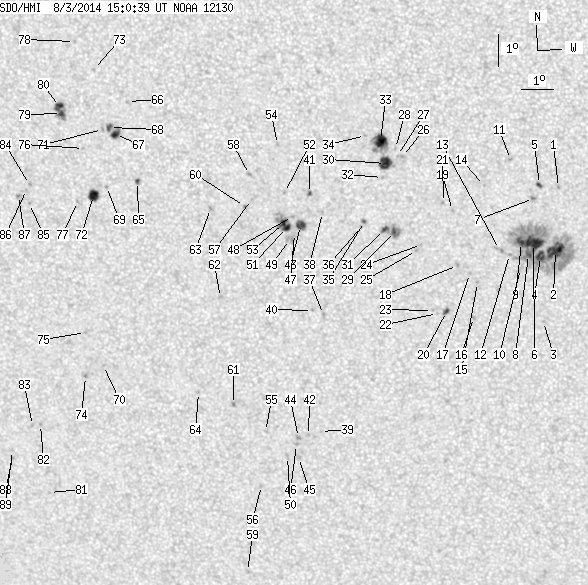

SDO HMI 2014-08-03 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.25 | 433.01 | 57.21 | 223.22 | -7.69 | 229.36 | -6.49 | 156.42 | 0.2731 | 310.8 | 263.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.41 | -6.10 | 234.29 | -1.56 | 172.60 | 0.2113 | 873.0 | 755.7 | |
| 16.64 | 197.92 | 8.50 | 101.10 | -8.07 | 234.19 | -1.66 | 173.23 | 0.2448 | 1161.3 | 457.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -10.31 | 233.80 | -2.05 | 172.84 | 0.2832 | 919.0 | 750.2 | |
| 6.24 | -2.00 | 3.19 | -2.00 | -8.26 | 233.72 | -2.13 | 171.49 | 0.2490 | 1092.3 | 999999 | |
| 1.27 | 2.80 | 0.64 | 1.42 | -6.01 | 233.71 | -2.14 | 169.82 | 0.2112 | 909.7 | 713.4 | |
| 16.37 | -2.00 | 8.36 | -2.00 | -7.85 | 233.51 | -2.34 | 170.38 | 0.2428 | 1268.6 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.06 | -6.44 | 233.52 | -2.33 | 169.34 | 0.2192 | 1029.0 | 784.5 | |
| 2.53 | -2.00 | 1.30 | -2.00 | -8.19 | 233.35 | -2.49 | 170.00 | 0.2490 | 864.5 | 999999 | |
| 4.98 | -2.00 | 2.54 | -2.00 | -7.82 | 233.14 | -2.71 | 168.87 | 0.2434 | 1093.8 | 999999 | |
| 0.00 | 4.43 | 0.00 | 2.27 | -8.64 | 233.10 | -2.74 | 169.35 | 0.2571 | 540.0 | 421.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -5.24 | 232.82 | -3.03 | 164.82 | 0.2016 | -949.0 | -719.7 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.20 | 232.77 | -3.08 | 167.72 | 0.2509 | 866.0 | 722.1 | |
| 0.00 | 3.80 | 0.00 | 1.94 | -8.04 | 232.46 | -3.38 | 166.39 | 0.2495 | 774.0 | 709.9 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -6.05 | 232.02 | -3.83 | 162.26 | 0.2188 | -769.0 | -588.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -9.08 | 231.77 | -4.07 | 164.84 | 0.2695 | 930.0 | 754.9 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -10.19 | 231.64 | -4.21 | 165.40 | 0.2881 | 944.0 | 693.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.80 | 231.53 | -4.32 | 163.69 | 0.2660 | 770.0 | 631.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -8.55 | 231.16 | -4.68 | 162.09 | 0.2638 | 935.0 | 783.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.83 | 231.03 | -4.82 | 159.31 | 0.2370 | 911.0 | 734.4 | |
| 1.63 | 3.17 | 0.84 | 1.64 | -10.00 | 230.80 | -5.05 | 162.48 | 0.2890 | 994.8 | 806.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.58 | 230.76 | -5.09 | 157.85 | 0.2348 | 962.0 | 787.6 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -10.07 | 230.52 | -5.33 | 161.64 | 0.2914 | 620.0 | 464.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.98 | 230.37 | -5.48 | 161.04 | 0.2908 | 598.0 | 422.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.90 | 230.06 | -5.79 | 157.31 | 0.2599 | 709.0 | 575.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -8.09 | 229.91 | -5.94 | 157.04 | 0.2639 | 892.0 | 661.3 | |
| 0.00 | 1.72 | 0.00 | 0.87 | -5.17 | 229.51 | -6.33 | 150.22 | 0.2222 | 1036.0 | 811.9 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -5.14 | 229.36 | -6.49 | 149.56 | 0.2231 | 744.0 | 543.6 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -4.92 | 229.30 | -6.55 | 148.83 | 0.2204 | 804.0 | 587.3 | |
| 2.35 | 15.74 | 1.21 | 8.07 | -7.50 | 229.24 | -6.61 | 153.78 | 0.2596 | 1137.0 | 830.1 | |
| 10.40 | 40.98 | 5.29 | 20.83 | -5.39 | 228.99 | -6.86 | 148.72 | 0.2300 | 1115.1 | 31.5 | |
| 1.90 | -29.00 | 0.97 | -29.00 | -7.45 | 228.93 | -6.92 | 152.63 | 0.2610 | 1060.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.83 | 228.89 | -6.96 | 149.33 | 0.2373 | 838.0 | 563.5 | |
| 10.49 | -30.00 | 5.33 | -30.00 | -4.68 | 228.84 | -7.00 | 146.49 | 0.2211 | -1015.8 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -4.53 | 228.38 | -7.46 | 144.40 | 0.2234 | -826.0 | -651.2 | |
| 0.63 | 2.26 | 0.32 | 1.16 | -7.20 | 228.31 | -7.53 | 150.13 | 0.2624 | 1020.0 | 797.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -7.36 | 228.22 | -7.63 | 150.12 | 0.2655 | 896.0 | 721.9 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -10.14 | 226.97 | -8.88 | 151.16 | 0.3163 | -1017.0 | -724.1 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -6.94 | 227.02 | -8.83 | 145.50 | 0.2702 | 917.0 | 696.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -13.89 | 226.74 | -9.10 | 155.56 | 0.3728 | -745.0 | -599.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -10.02 | 226.63 | -9.22 | 150.05 | 0.3173 | -780.0 | -601.5 | |
| 0.63 | 1.72 | 0.33 | 0.88 | -6.35 | 226.63 | -9.22 | 143.04 | 0.2660 | 1010.0 | 880.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -14.03 | 226.36 | -9.49 | 154.81 | 0.3775 | -919.0 | -707.9 | |
| 5.61 | 28.49 | 2.90 | 14.72 | -7.36 | 226.33 | -9.52 | 144.33 | 0.2826 | 1073.4 | 763.4 | |
| 0.00 | 2.35 | 0.00 | 1.26 | -14.10 | 226.04 | -9.81 | 154.15 | 0.3807 | -968.0 | -828.8 | |
| 0.00 | 2.71 | 0.00 | 1.46 | -14.75 | 226.01 | -9.84 | 154.83 | 0.3903 | -797.0 | -603.7 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -14.32 | 225.96 | -9.89 | 154.25 | 0.3845 | -764.0 | -685.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.61 | 226.13 | -9.71 | 144.31 | 0.2879 | 749.0 | 572.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -7.08 | 226.08 | -9.76 | 143.06 | 0.2813 | 1005.0 | 853.8 | |
| 0.00 | 6.24 | 0.00 | 3.23 | -7.80 | 225.97 | -9.87 | 144.25 | 0.2921 | 56.0 | 77.9 | |
| 0.00 | 2.80 | 0.00 | 1.51 | -14.72 | 225.66 | -10.19 | 154.02 | 0.3924 | -726.0 | -502.5 | |
| 3.35 | -43.00 | 1.73 | -43.00 | -7.43 | 225.89 | -9.96 | 143.25 | 0.2879 | 963.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -6.34 | 225.85 | -10.00 | 140.74 | 0.2738 | 783.0 | 553.2 | |
| 3.89 | -43.00 | 2.01 | -43.00 | -7.30 | 225.80 | -10.05 | 142.74 | 0.2871 | 1099.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -4.85 | 225.66 | -10.19 | 136.49 | 0.2571 | 897.0 | 679.6 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -13.92 | 224.99 | -10.86 | 151.59 | 0.3859 | -775.0 | -649.9 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -15.68 | 224.77 | -11.08 | 153.23 | 0.4124 | -398.0 | -440.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -6.57 | 224.82 | -11.03 | 138.50 | 0.2880 | 709.0 | 563.0 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -5.80 | 224.77 | -11.07 | 136.52 | 0.2789 | 828.0 | 546.7 | |
| 0.00 | 2.17 | 0.00 | 1.21 | -18.54 | 224.14 | -11.71 | 154.98 | 0.4569 | -764.0 | -637.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -6.79 | 224.60 | -11.25 | 138.43 | 0.2933 | 772.0 | 607.0 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -13.07 | 224.01 | -11.83 | 148.31 | 0.3819 | -843.0 | -731.7 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -9.67 | 223.75 | -12.10 | 142.25 | 0.3389 | -720.0 | -503.6 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -6.88 | 223.53 | -12.32 | 136.02 | 0.3064 | 884.0 | 722.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -12.71 | 222.91 | -12.93 | 145.46 | 0.3867 | -869.0 | -666.9 | |
| 1.18 | 2.17 | 0.62 | 1.14 | -6.09 | 221.25 | -14.59 | 129.31 | 0.3252 | 817.5 | 684.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -3.62 | 221.00 | -14.85 | 122.46 | 0.3045 | -661.0 | -612.1 | |
| 3.89 | 12.75 | 2.03 | 6.66 | -4.65 | 220.60 | -15.25 | 124.50 | 0.3195 | -1074.3 | -769.9 | |
| 1.99 | -67.00 | 1.04 | -67.00 | -4.44 | 220.41 | -15.44 | 123.62 | 0.3201 | -996.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -6.27 | 220.27 | -15.58 | 127.89 | 0.3398 | 822.0 | 629.4 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -11.92 | 219.91 | -15.94 | 138.41 | 0.4066 | -822.0 | -646.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -4.51 | 220.19 | -15.66 | 123.41 | 0.3238 | -772.0 | -619.6 | |
| 7.87 | 10.40 | 4.16 | 5.49 | -6.57 | 219.84 | -16.01 | 127.81 | 0.3482 | 969.4 | 680.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -2.66 | 219.94 | -15.91 | 118.01 | 0.3115 | -887.0 | -647.9 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -12.29 | 219.30 | -16.55 | 137.96 | 0.4174 | -714.0 | -609.2 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -10.88 | 219.39 | -16.46 | 135.71 | 0.4002 | -900.0 | -693.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -5.11 | 219.57 | -16.28 | 123.90 | 0.3378 | -819.0 | -588.0 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -6.77 | 219.32 | -16.52 | 127.38 | 0.3569 | 680.0 | 558.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -1.82 | 219.35 | -16.50 | 114.74 | 0.3139 | -767.0 | -537.2 | |
| 2.89 | 15.02 | 1.52 | 7.90 | -4.05 | 218.90 | -16.95 | 120.16 | 0.3379 | -1016.2 | -753.9 | |
| 4.52 | -79.00 | 2.38 | -79.00 | -3.84 | 218.84 | -17.01 | 119.52 | 0.3369 | -1006.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -16.09 | 217.81 | -18.04 | 141.21 | 0.4769 | -627.0 | -535.6 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -13.88 | 217.71 | -18.14 | 137.87 | 0.4524 | -720.0 | -596.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -13.92 | 217.44 | -18.41 | 137.51 | 0.4557 | -664.0 | -476.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -6.28 | 217.80 | -18.04 | 123.87 | 0.3724 | -968.0 | -789.4 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -6.88 | 217.78 | -18.07 | 125.15 | 0.3782 | -742.0 | -655.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -6.44 | 217.70 | -18.15 | 124.07 | 0.3752 | -700.0 | -621.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -6.64 | 217.43 | -18.41 | 124.11 | 0.3806 | -882.0 | -777.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -14.99 | 216.68 | -19.17 | 137.95 | 0.4755 | -698.0 | -583.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -14.76 | 216.70 | -19.15 | 137.65 | 0.4727 | -729.0 | -467.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
