SDO HMI 2014-08-03 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.42 | 248.19 | 32.30 | 130.63 | -7.40 | 249.58 | 14.28 | 226.58 | 0.3378 | 487.4 | 374.1 | |
|
previous
or next observation for the same group /

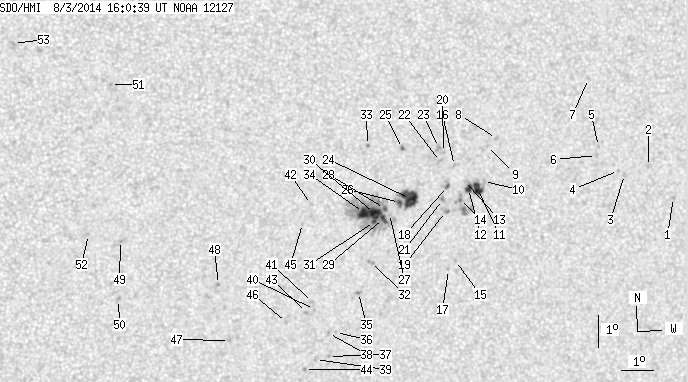

back to the solar disc SDO HMI 2014-08-03 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.85 | -7.30 | 258.62 | 23.33 | 240.66 | 0.4524 | 656.0 | 491.3 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -6.30 | 257.74 | 22.45 | 241.71 | 0.4328 | 810.0 | 622.3 | |
| 0.00 | 2.26 | 0.00 | 1.24 | -6.52 | 256.96 | 21.66 | 240.38 | 0.4236 | 849.0 | 600.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -6.38 | 256.75 | 21.46 | 240.42 | 0.4198 | 797.0 | 571.3 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -5.61 | 256.07 | 20.77 | 241.25 | 0.4043 | 795.0 | 680.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -5.89 | 256.01 | 20.72 | 240.59 | 0.4057 | 625.0 | 496.2 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -3.49 | 255.68 | 20.39 | 245.63 | 0.3833 | 772.0 | 534.1 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -5.24 | 252.76 | 17.46 | 237.65 | 0.3552 | 785.0 | 566.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -5.45 | 252.47 | 17.18 | 236.72 | 0.3532 | 768.0 | 643.3 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -6.57 | 252.38 | 17.09 | 233.99 | 0.3624 | 241.0 | 202.3 | |
| 7.42 | 15.83 | 3.94 | 8.40 | -6.78 | 252.20 | 16.90 | 233.22 | 0.3620 | 994.6 | 777.9 | |
| 3.89 | -11.00 | 2.06 | -11.00 | -6.77 | 251.91 | 16.61 | 232.76 | 0.3582 | 1107.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -6.52 | 251.77 | 16.48 | 233.10 | 0.3539 | 136.0 | 118.4 | |
| 0.36 | 15.19 | 0.19 | 8.07 | -7.11 | 251.63 | 16.34 | 231.55 | 0.3580 | 1051.5 | 678.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -9.01 | 251.58 | 16.29 | 227.47 | 0.3774 | -828.0 | -679.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -6.04 | 251.44 | 16.14 | 233.63 | 0.3448 | 768.0 | 604.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -9.29 | 251.37 | 16.07 | 226.56 | 0.3780 | -864.0 | -625.7 | |
| 0.81 | 3.98 | 0.43 | 2.10 | -6.69 | 251.23 | 15.94 | 231.79 | 0.3486 | 902.0 | 785.6 | |
| 0.00 | 3.62 | 0.00 | 1.92 | -7.47 | 251.20 | 15.90 | 230.00 | 0.3562 | 706.0 | 580.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -5.63 | 251.08 | 15.78 | 233.99 | 0.3360 | 809.0 | 698.8 | |
| 0.00 | 2.44 | 0.00 | 1.29 | -7.09 | 251.09 | 15.79 | 230.63 | 0.3509 | 910.0 | 678.9 | |
| 0.00 | 2.62 | 0.00 | 1.38 | -5.90 | 250.99 | 15.69 | 233.18 | 0.3376 | 838.0 | 736.3 | |
| 0.00 | 3.53 | 0.00 | 1.85 | -5.47 | 250.91 | 15.62 | 234.10 | 0.3323 | 957.0 | 678.0 | |
| 18.27 | 29.48 | 9.61 | 15.50 | -7.03 | 250.04 | 14.74 | 228.81 | 0.3371 | 1038.4 | 739.8 | |
| 0.45 | 1.81 | 0.24 | 0.94 | -5.46 | 249.77 | 14.48 | 231.99 | 0.3173 | 1034.0 | 828.8 | |
| 2.17 | -24.00 | 1.14 | -24.00 | -7.14 | 249.72 | 14.43 | 227.93 | 0.3345 | 1079.5 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -7.48 | 249.42 | 14.12 | 226.57 | 0.3346 | 465.0 | 544.1 | |
| 1.09 | 115.31 | 0.57 | 60.43 | -7.32 | 249.26 | 13.96 | 226.59 | 0.3308 | 944.9 | 480.8 | |
| 3.53 | -28.00 | 1.85 | -28.00 | -7.63 | 249.23 | 13.94 | 225.86 | 0.3341 | 1061.5 | 999999 | |
| 11.85 | -28.00 | 6.21 | -28.00 | -7.47 | 248.94 | 13.65 | 225.62 | 0.3288 | 1256.2 | 999999 | |
| 1.99 | -28.00 | 1.04 | -28.00 | -7.72 | 248.95 | 13.66 | 225.09 | 0.3318 | 933.5 | 999999 | |
| 0.00 | 2.71 | 0.00 | 1.43 | -9.00 | 248.87 | 13.58 | 222.27 | 0.3461 | 802.0 | 781.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -5.34 | 248.67 | 13.37 | 230.05 | 0.3017 | -861.0 | -746.0 | |
| 9.59 | -28.00 | 5.02 | -28.00 | -7.42 | 248.60 | 13.30 | 224.96 | 0.3243 | 1256.6 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.15 | -9.94 | 248.53 | 13.23 | 219.76 | 0.3540 | -894.0 | -661.7 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -11.19 | 247.85 | 12.55 | 216.12 | 0.3632 | -696.0 | -516.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -11.95 | 247.66 | 12.36 | 214.49 | 0.3715 | -731.0 | -566.5 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -11.21 | 247.63 | 12.33 | 215.60 | 0.3615 | -823.0 | -620.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -12.04 | 247.25 | 11.96 | 213.47 | 0.3690 | -649.0 | -536.4 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -10.44 | 247.15 | 11.86 | 215.83 | 0.3467 | -761.0 | -635.1 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -10.22 | 247.08 | 11.79 | 216.05 | 0.3431 | -842.0 | -649.5 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -7.14 | 246.95 | 11.66 | 221.82 | 0.3021 | 793.0 | 581.3 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -10.53 | 246.90 | 11.61 | 215.10 | 0.3456 | -907.0 | -763.3 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -12.35 | 246.91 | 11.62 | 212.25 | 0.3702 | -756.0 | -482.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -7.72 | 246.69 | 11.39 | 219.88 | 0.3066 | 796.0 | 587.9 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -10.83 | 246.28 | 10.99 | 213.13 | 0.3440 | -830.0 | -674.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -11.37 | 244.51 | 9.21 | 207.91 | 0.3368 | -747.0 | -575.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -9.59 | 244.11 | 8.82 | 209.55 | 0.3078 | -1016.0 | -867.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.16 | 241.04 | 5.75 | 202.19 | 0.2638 | -801.0 | -735.0 | |
| 0.00 | 2.71 | 0.00 | 1.41 | -10.02 | 241.01 | 5.71 | 199.66 | 0.2927 | -833.0 | -599.7 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -3.31 | 240.69 | 5.40 | 210.36 | 0.1867 | -967.0 | -755.6 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -7.96 | 240.05 | 4.76 | 198.91 | 0.2548 | -923.0 | -686.9 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -2.02 | 237.73 | 2.44 | 197.05 | 0.1456 | -977.0 | -602.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
