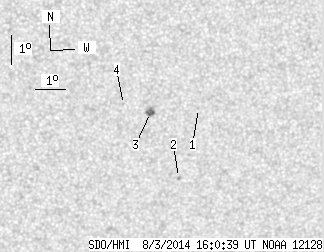

SDO HMI 2014-08-03 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.80 | 9.76 | 1.60 | 5.58 | -20.69 | 248.91 | 13.62 | 206.30 | 0.4991 | 718.2 | 643.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.52 | -20.33 | 250.27 | 14.98 | 208.88 | 0.5037 | 669.0 | 492.6 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -22.68 | 249.84 | 14.54 | 205.95 | 0.5315 | 548.0 | 546.6 | |
| 2.80 | 6.96 | 1.60 | 3.96 | -20.42 | 248.67 | 13.38 | 206.16 | 0.4938 | 908.7 | 730.2 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -20.12 | 247.75 | 12.45 | 204.85 | 0.4837 | 633.0 | 490.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
