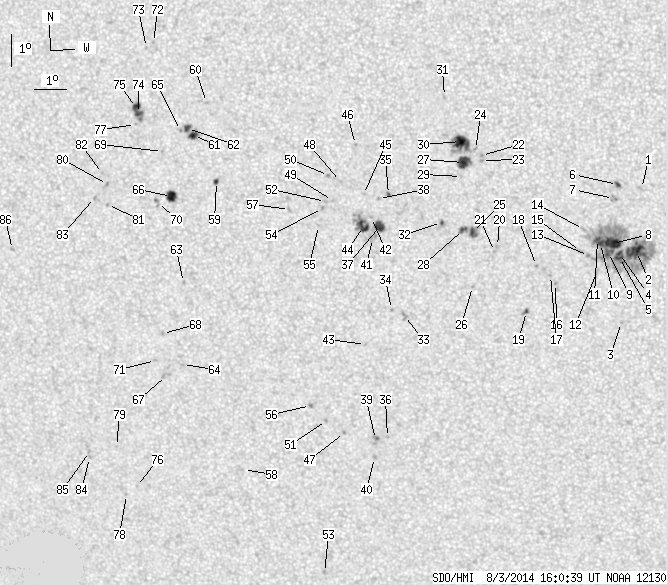

SDO HMI 2014-08-03 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.99 | 416.68 | 54.50 | 214.78 | -7.62 | 229.03 | -6.26 | 157.30 | 0.2718 | 302.4 | 250.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.62 | 0.00 | 1.33 | -6.12 | 234.44 | -0.86 | 175.92 | 0.2105 | 589.0 | 509.7 | |
| 17.64 | 179.71 | 9.01 | 91.78 | -8.09 | 234.28 | -1.02 | 175.85 | 0.2442 | 1110.9 | 467.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -10.33 | 233.80 | -1.49 | 174.78 | 0.2826 | 956.0 | 731.3 | |
| 2.17 | -2.00 | 1.11 | -2.00 | -8.15 | 233.75 | -1.54 | 173.76 | 0.2461 | 1259.9 | 999999 | |
| 3.17 | -2.00 | 1.62 | -2.00 | -8.28 | 233.75 | -1.54 | 173.81 | 0.2482 | 1049.8 | 999999 | |
| 1.36 | 2.62 | 0.69 | 1.33 | -6.00 | 233.70 | -1.59 | 172.39 | 0.2097 | 1008.6 | 708.0 | |
| 0.00 | 3.98 | 0.00 | 2.02 | -6.43 | 233.58 | -1.72 | 172.09 | 0.2174 | 903.0 | 778.8 | |
| 12.30 | -2.00 | 6.28 | -2.00 | -7.84 | 233.54 | -1.75 | 172.74 | 0.2412 | 1341.6 | 999999 | |
| 3.71 | -2.00 | 1.90 | -2.00 | -8.12 | 233.42 | -1.88 | 172.39 | 0.2462 | 960.9 | 999999 | |
| 2.17 | -2.00 | 1.11 | -2.00 | -7.84 | 233.17 | -2.12 | 171.24 | 0.2421 | 1113.4 | 999999 | |
| 2.44 | -2.00 | 1.25 | -2.00 | -7.72 | 233.08 | -2.21 | 170.79 | 0.2402 | 1111.7 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.44 | -8.75 | 233.04 | -2.25 | 171.29 | 0.2577 | 701.0 | 508.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -8.22 | 232.80 | -2.49 | 170.01 | 0.2494 | 987.0 | 674.4 | |
| 0.00 | 2.53 | 0.00 | 1.29 | -7.40 | 232.65 | -2.64 | 168.80 | 0.2363 | 148.0 | 136.1 | |
| 0.00 | 3.53 | 0.00 | 1.80 | -8.09 | 232.56 | -2.74 | 168.96 | 0.2481 | 957.0 | 658.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -9.10 | 231.78 | -3.52 | 166.85 | 0.2676 | 929.0 | 732.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -8.85 | 231.62 | -3.67 | 166.08 | 0.2640 | 847.0 | 696.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -8.54 | 231.20 | -4.10 | 164.21 | 0.2608 | 926.0 | 796.7 | |
| 0.90 | 3.62 | 0.47 | 1.87 | -9.99 | 230.87 | -4.43 | 164.51 | 0.2858 | 949.5 | 791.8 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -7.95 | 230.00 | -5.29 | 159.14 | 0.2577 | 665.0 | 639.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -8.11 | 229.91 | -5.39 | 159.02 | 0.2607 | 782.0 | 586.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -5.12 | 229.54 | -5.75 | 152.47 | 0.2168 | 984.0 | 805.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -5.28 | 229.54 | -5.75 | 152.79 | 0.2192 | 870.0 | 679.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -4.94 | 229.36 | -5.93 | 151.32 | 0.2155 | 758.0 | 553.5 | |
| 2.80 | 13.30 | 1.44 | 6.81 | -7.52 | 229.24 | -6.06 | 155.75 | 0.2559 | 1116.0 | 820.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.22 | 229.21 | -6.09 | 158.15 | 0.2824 | -598.0 | -459.3 | |
| 9.23 | 13.02 | 4.69 | 6.62 | -5.34 | 228.99 | -6.30 | 150.73 | 0.2247 | 1123.5 | 818.5 | |
| 1.99 | -25.00 | 1.02 | -25.00 | -7.43 | 228.96 | -6.33 | 154.63 | 0.2564 | 1054.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -5.78 | 228.92 | -6.37 | 151.40 | 0.2317 | 881.0 | 642.7 | |
| 8.86 | 26.68 | 4.50 | 13.54 | -4.69 | 228.90 | -6.39 | 148.91 | 0.2158 | -1084.0 | -214.5 | |
| 0.00 | 1.81 | 0.00 | 0.91 | -3.31 | 228.43 | -6.87 | 143.29 | 0.2006 | -887.0 | -584.7 | |
| 0.72 | 1.90 | 0.37 | 0.97 | -7.22 | 228.29 | -7.01 | 151.92 | 0.2584 | 1029.4 | 808.3 | |
| 0.00 | 4.34 | 0.00 | 2.26 | -10.16 | 227.07 | -8.22 | 153.00 | 0.3115 | -986.0 | -680.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.97 | 226.67 | -8.62 | 151.60 | 0.3118 | -708.0 | -595.9 | |
| 0.45 | 2.08 | 0.23 | 1.07 | -6.37 | 226.66 | -8.63 | 144.88 | 0.2604 | 1037.6 | 904.3 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -14.07 | 226.41 | -8.89 | 156.28 | 0.3742 | -886.0 | -699.1 | |
| 6.69 | 31.56 | 3.45 | 16.28 | -7.37 | 226.36 | -8.93 | 146.09 | 0.2772 | 1036.4 | 737.7 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.50 | 226.35 | -8.94 | 144.20 | 0.2653 | 909.0 | 729.9 | |
| 0.00 | 4.07 | 0.00 | 2.18 | -14.14 | 226.02 | -9.27 | 155.45 | 0.3777 | -864.0 | -750.1 | |
| 0.00 | 2.17 | 0.00 | 1.17 | -14.73 | 225.96 | -9.33 | 155.97 | 0.3867 | -863.0 | -688.0 | |
| 0.00 | 3.89 | 0.00 | 2.01 | -7.75 | 226.14 | -9.16 | 146.18 | 0.2846 | 253.0 | 258.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -7.09 | 226.12 | -9.17 | 144.80 | 0.2757 | 974.0 | 756.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -11.10 | 225.82 | -9.47 | 151.03 | 0.3349 | 842.0 | 675.0 | |
| 6.60 | -37.00 | 3.41 | -37.00 | -7.38 | 225.87 | -9.43 | 144.65 | 0.2820 | 1035.1 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -6.38 | 225.89 | -9.41 | 142.55 | 0.2683 | 823.0 | 615.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -4.83 | 225.67 | -9.63 | 138.07 | 0.2505 | 940.0 | 791.0 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -13.93 | 225.04 | -10.25 | 152.96 | 0.3815 | -854.0 | -742.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -5.99 | 225.18 | -10.11 | 139.59 | 0.2706 | 836.0 | 642.1 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -6.58 | 224.92 | -10.37 | 140.27 | 0.2811 | 822.0 | 586.9 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -5.81 | 224.81 | -10.48 | 138.13 | 0.2724 | 835.0 | 603.9 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -13.56 | 224.49 | -10.81 | 151.24 | 0.3804 | -862.0 | -722.3 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -6.62 | 224.70 | -10.59 | 139.75 | 0.2839 | 726.0 | 561.4 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -18.55 | 224.14 | -11.16 | 156.04 | 0.4535 | -805.0 | -702.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.84 | 224.60 | -10.69 | 139.99 | 0.2878 | 869.0 | 708.5 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -7.37 | 224.46 | -10.83 | 140.80 | 0.2961 | 682.0 | 512.6 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -13.08 | 224.00 | -11.29 | 149.52 | 0.3776 | -784.0 | -687.4 | |
| 0.00 | 2.53 | 0.00 | 1.31 | -6.89 | 223.57 | -11.72 | 137.48 | 0.2998 | 895.0 | 648.8 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -15.20 | 221.73 | -13.57 | 147.70 | 0.4253 | -589.0 | -428.4 | |
| 1.36 | 2.98 | 0.71 | 1.56 | -6.07 | 221.30 | -13.99 | 130.46 | 0.3174 | 700.4 | 573.9 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -3.63 | 221.04 | -14.25 | 123.58 | 0.2962 | -876.0 | -597.7 | |
| 4.16 | 11.58 | 2.17 | 6.03 | -4.66 | 220.61 | -14.68 | 125.57 | 0.3119 | -1048.4 | -758.5 | |
| 2.62 | -61.00 | 1.37 | -61.00 | -4.45 | 220.43 | -14.87 | 124.67 | 0.3124 | -1005.2 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -9.26 | 220.14 | -15.16 | 135.07 | 0.3669 | -814.0 | -628.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -11.86 | 219.97 | -15.33 | 139.44 | 0.3995 | -774.0 | -581.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -4.52 | 220.20 | -15.09 | 124.44 | 0.3161 | -757.0 | -552.7 | |
| 7.60 | 10.22 | 4.00 | 5.38 | -6.57 | 219.86 | -15.43 | 128.86 | 0.3410 | 1010.5 | 678.2 | |
| 0.00 | 3.98 | 0.00 | 2.16 | -12.23 | 219.43 | -15.86 | 139.07 | 0.4095 | -497.0 | -607.0 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -10.89 | 219.38 | -15.91 | 136.70 | 0.3943 | -837.0 | -618.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -5.18 | 219.62 | -15.68 | 125.10 | 0.3303 | -646.0 | -450.0 | |
| 0.00 | 3.35 | 0.00 | 1.77 | -6.77 | 219.41 | -15.88 | 128.50 | 0.3488 | 780.0 | 604.6 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -11.76 | 219.10 | -16.19 | 137.71 | 0.4074 | -705.0 | -567.1 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -1.83 | 219.40 | -15.90 | 115.61 | 0.3050 | -767.0 | -662.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -1.99 | 219.17 | -16.12 | 115.76 | 0.3095 | -854.0 | -646.5 | |
| 2.89 | 13.02 | 1.52 | 6.83 | -4.03 | 218.88 | -16.41 | 120.94 | 0.3300 | -1038.8 | -822.8 | |
| 4.16 | -74.00 | 2.18 | -74.00 | -3.84 | 218.82 | -16.47 | 120.37 | 0.3293 | -1061.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -15.86 | 218.17 | -17.12 | 142.34 | 0.4654 | -675.0 | -523.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -4.37 | 218.78 | -16.51 | 121.66 | 0.3344 | -660.0 | -493.4 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -16.13 | 217.82 | -17.48 | 142.15 | 0.4721 | -756.0 | -554.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -14.57 | 217.62 | -17.67 | 139.64 | 0.4556 | -536.0 | -368.3 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -6.26 | 217.83 | -17.46 | 124.70 | 0.3644 | -1024.0 | -868.1 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -6.88 | 217.81 | -17.49 | 126.06 | 0.3706 | -771.0 | -660.0 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -5.92 | 217.68 | -17.61 | 123.71 | 0.3633 | -744.0 | -614.6 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -6.68 | 217.40 | -17.90 | 124.97 | 0.3741 | -913.0 | -748.3 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -14.96 | 216.70 | -18.60 | 138.77 | 0.4694 | -635.0 | -613.1 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -14.76 | 216.71 | -18.58 | 138.51 | 0.4670 | -835.0 | -648.9 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -8.39 | 214.65 | -20.65 | 124.65 | 0.4258 | -808.0 | -676.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
