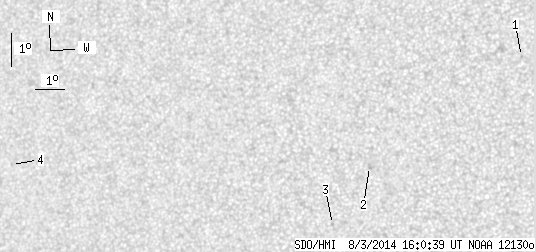

SDO HMI 2014-08-03 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.42 | 0.00 | 2.95 | 7.25 | 211.39 | -23.91 | 84.88 | 0.4046 | -357.0 | -388.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.47 | 10.75 | 217.77 | -17.52 | 73.35 | 0.3101 | -798.0 | -640.6 | |
| 0.00 | 2.35 | 0.00 | 1.26 | 7.23 | 212.98 | -22.31 | 85.41 | 0.3794 | -607.0 | -600.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 5.42 | 211.84 | -23.46 | 90.08 | 0.3980 | -640.0 | -466.9 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 6.70 | 200.49 | -34.80 | 86.82 | 0.5699 | 617.0 | 517.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
