SDO HMI 2014-08-03 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.34 | 0.00 | 11.82 | 15.19 | 257.20 | 22.46 | 298.95 | 0.4266 | 129.1 | 86.2 | |
|
previous
or next observation for the same group /

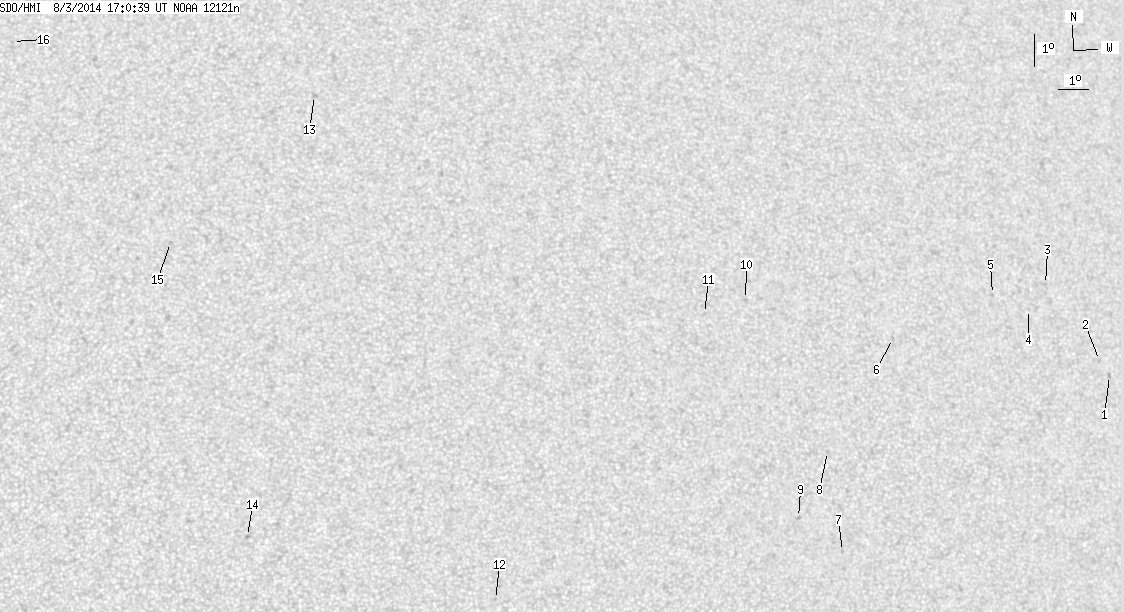

back to the solar disc SDO HMI 2014-08-03 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.94 | 13.61 | 270.39 | 35.65 | 285.04 | 0.5888 | -742.0 | -614.6 | |
| 0.00 | 1.90 | 0.00 | 1.16 | 14.09 | 270.09 | 35.35 | 285.93 | 0.5858 | -667.0 | -492.0 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 16.54 | 268.49 | 33.75 | 290.63 | 0.5712 | -654.0 | -600.8 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 15.81 | 267.70 | 32.96 | 289.68 | 0.5581 | -277.0 | -425.0 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 16.34 | 266.45 | 31.71 | 291.16 | 0.5429 | -676.0 | -480.3 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 15.17 | 262.61 | 27.87 | 290.86 | 0.4847 | -595.0 | -518.4 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 8.75 | 260.17 | 25.43 | 277.90 | 0.4303 | 722.0 | 552.9 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 11.82 | 259.92 | 25.18 | 285.04 | 0.4331 | 87.0 | 142.2 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 9.85 | 258.76 | 24.02 | 280.86 | 0.4101 | 814.0 | 684.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 16.60 | 257.65 | 22.91 | 297.31 | 0.4217 | 705.0 | 601.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 16.22 | 256.20 | 21.46 | 297.81 | 0.3988 | 755.0 | 666.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 7.70 | 248.76 | 14.02 | 277.96 | 0.2435 | 798.0 | 604.8 | |
| 0.00 | 2.89 | 0.00 | 1.52 | 23.41 | 243.79 | 9.05 | 334.38 | 0.3355 | 844.0 | 528.6 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 9.76 | 241.06 | 6.32 | 301.75 | 0.1282 | 902.0 | 694.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 18.83 | 238.85 | 4.11 | 343.09 | 0.2344 | 740.0 | 590.1 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 25.22 | 233.74 | -1.00 | 2.74 | 0.3319 | -690.0 | -493.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
