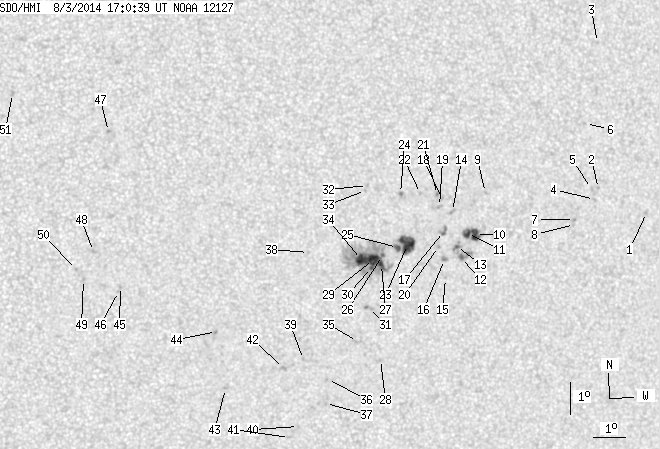

SDO HMI 2014-08-03 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.93 | 237.79 | 32.69 | 125.33 | -7.29 | 249.46 | 14.72 | 227.62 | 0.3419 | 527.3 | 385.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.95 | -6.30 | 257.78 | 23.04 | 242.35 | 0.4410 | 751.0 | 656.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -5.48 | 256.16 | 21.42 | 242.28 | 0.4125 | 750.0 | 617.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -0.98 | 256.04 | 21.30 | 252.63 | 0.3821 | 659.0 | 503.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -5.82 | 256.04 | 21.30 | 241.42 | 0.4133 | 754.0 | 615.1 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -5.47 | 255.93 | 21.19 | 242.03 | 0.4091 | 782.0 | 612.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -3.46 | 255.68 | 20.94 | 246.30 | 0.3912 | 766.0 | 600.1 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -6.42 | 255.41 | 20.67 | 239.40 | 0.4093 | 840.0 | 756.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -6.57 | 255.42 | 20.68 | 239.08 | 0.4107 | 609.0 | 523.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -5.47 | 252.50 | 17.76 | 237.54 | 0.3613 | 828.0 | 646.9 | |
| 7.14 | 17.00 | 3.81 | 9.05 | -6.77 | 252.22 | 17.48 | 234.16 | 0.3695 | 997.9 | 746.8 | |
| 4.52 | -10.00 | 2.41 | -10.00 | -6.73 | 251.96 | 17.22 | 233.84 | 0.3657 | 1141.2 | 999999 | |
| 1.18 | 15.01 | 0.63 | 8.00 | -7.47 | 251.79 | 17.05 | 231.95 | 0.3708 | 768.7 | 676.4 | |
| 0.90 | -12.00 | 0.48 | -12.00 | -7.12 | 251.62 | 16.88 | 232.42 | 0.3651 | 1009.1 | 999999 | |
| 0.00 | 3.17 | 0.00 | 1.67 | -6.03 | 251.46 | 16.72 | 234.62 | 0.3524 | 810.0 | 659.5 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -8.11 | 251.31 | 16.57 | 229.78 | 0.3713 | 541.0 | 388.6 | |
| 0.00 | 3.44 | 0.00 | 1.83 | -7.52 | 251.25 | 16.51 | 230.94 | 0.3644 | 694.0 | 622.8 | |
| 0.00 | 5.34 | 0.00 | 2.83 | -6.64 | 251.19 | 16.45 | 232.76 | 0.3548 | 848.0 | 783.0 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -5.61 | 251.12 | 16.38 | 235.04 | 0.3440 | 728.0 | 560.1 | |
| 0.00 | 2.35 | 0.00 | 1.24 | -5.86 | 251.04 | 16.30 | 234.31 | 0.3452 | 978.0 | 760.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -7.11 | 251.04 | 16.30 | 231.48 | 0.3576 | 829.0 | 725.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -5.49 | 250.96 | 16.22 | 235.08 | 0.3406 | 1006.0 | 831.8 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -5.44 | 250.42 | 15.68 | 234.27 | 0.3329 | 864.0 | 677.0 | |
| 17.27 | 28.40 | 9.11 | 14.97 | -7.01 | 250.05 | 15.31 | 229.91 | 0.3441 | 1034.9 | 746.7 | |
| 0.00 | 2.08 | 0.00 | 1.09 | -5.42 | 249.79 | 15.05 | 233.17 | 0.3243 | 1106.0 | 881.0 | |
| 2.35 | -23.00 | 1.24 | -23.00 | -7.10 | 249.74 | 15.00 | 229.13 | 0.3411 | 1075.7 | 999999 | |
| 0.81 | 110.69 | 0.43 | 58.12 | -7.33 | 249.27 | 14.53 | 227.70 | 0.3379 | 954.3 | 485.7 | |
| 4.79 | -26.00 | 2.52 | -26.00 | -7.62 | 249.25 | 14.51 | 227.04 | 0.3408 | 995.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -10.61 | 249.34 | 14.60 | 221.33 | 0.3767 | -577.0 | -447.8 | |
| 11.03 | -26.00 | 5.80 | -26.00 | -7.45 | 248.99 | 14.25 | 226.88 | 0.3358 | 1245.2 | 999999 | |
| 1.36 | -26.00 | 0.71 | -26.00 | -7.70 | 248.93 | 14.19 | 226.23 | 0.3380 | 912.1 | 999999 | |
| 0.00 | 3.44 | 0.00 | 1.82 | -8.95 | 248.88 | 14.14 | 223.54 | 0.3520 | 837.0 | 735.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -5.14 | 248.74 | 14.00 | 231.84 | 0.3077 | -811.0 | -607.4 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -5.30 | 248.68 | 13.94 | 231.33 | 0.3086 | -859.0 | -718.1 | |
| 10.58 | -26.00 | 5.55 | -26.00 | -7.44 | 248.61 | 13.87 | 226.12 | 0.3312 | 1250.2 | 999999 | |
| 0.00 | 3.80 | 0.00 | 2.02 | -10.02 | 248.58 | 13.84 | 220.88 | 0.3614 | -801.0 | -608.4 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -11.20 | 247.68 | 12.94 | 216.92 | 0.3671 | -785.0 | -685.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -11.96 | 247.65 | 12.91 | 215.62 | 0.3768 | -750.0 | -632.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -7.18 | 246.93 | 12.19 | 222.99 | 0.3087 | 893.0 | 603.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -10.54 | 246.89 | 12.15 | 216.30 | 0.3509 | -925.0 | -760.1 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -12.68 | 246.82 | 12.08 | 212.77 | 0.3788 | -713.0 | -591.0 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -13.03 | 246.55 | 11.81 | 211.69 | 0.3812 | -690.0 | -457.8 | |
| 0.00 | 2.80 | 0.00 | 1.48 | -10.82 | 246.26 | 11.52 | 214.42 | 0.3487 | -825.0 | -678.9 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -11.41 | 244.46 | 9.72 | 209.12 | 0.3414 | -736.0 | -551.9 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -9.60 | 244.12 | 9.38 | 211.07 | 0.3127 | -953.0 | -827.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -8.14 | 241.11 | 6.37 | 204.34 | 0.2676 | -739.0 | -583.7 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -8.29 | 241.05 | 6.31 | 203.90 | 0.2696 | -753.0 | -570.8 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -3.32 | 240.69 | 5.95 | 212.82 | 0.1918 | -1034.0 | -820.3 | |
| 0.00 | 1.99 | 0.00 | 1.02 | -7.03 | 240.26 | 5.52 | 203.07 | 0.2447 | -864.0 | -687.7 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -7.90 | 239.96 | 5.22 | 200.67 | 0.2565 | -868.0 | -659.7 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -7.59 | 239.74 | 5.00 | 200.30 | 0.2502 | -1039.0 | -774.9 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -2.12 | 237.76 | 3.02 | 200.56 | 0.1504 | -738.0 | -697.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
