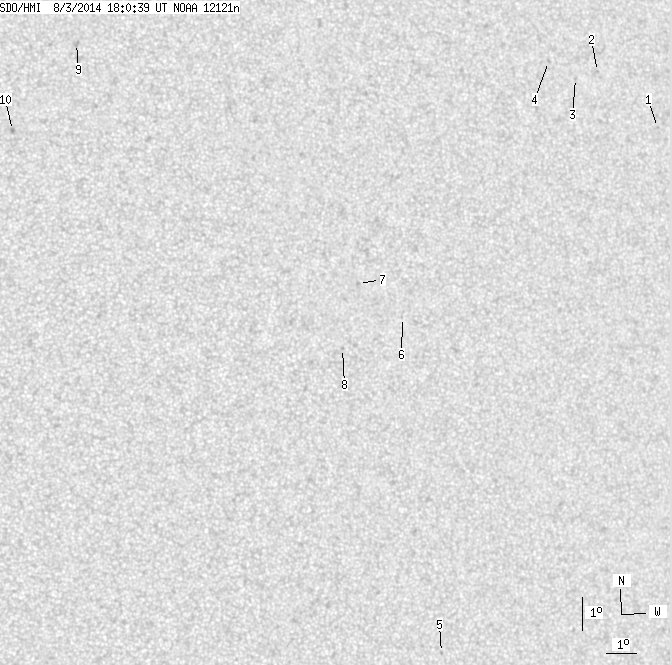

SDO HMI 2014-08-03 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.29 | 0.00 | 7.90 | 13.07 | 258.13 | 23.95 | 290.69 | 0.4272 | 196.1 | 283.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.56 | 14.03 | 270.11 | 35.92 | 285.67 | 0.5933 | -725.0 | -620.7 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 15.88 | 268.14 | 33.96 | 289.42 | 0.5718 | -695.0 | -584.8 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 15.71 | 267.28 | 33.09 | 289.46 | 0.5595 | -624.0 | -497.4 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 16.29 | 266.37 | 32.18 | 290.85 | 0.5492 | -532.0 | -537.7 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -1.53 | 261.19 | 27.01 | 255.31 | 0.4712 | 735.0 | 541.6 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 8.73 | 260.19 | 26.01 | 277.73 | 0.4392 | 664.0 | 525.4 | |
| 0.00 | 1.90 | 0.00 | 1.04 | 9.83 | 258.78 | 24.59 | 280.63 | 0.4190 | 829.0 | 619.6 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 7.88 | 258.10 | 23.91 | 276.03 | 0.4055 | 686.0 | 454.9 | |
| 0.00 | 3.44 | 0.00 | 1.80 | 17.53 | 250.04 | 15.85 | 308.13 | 0.3326 | 696.0 | 705.2 | |
| 0.00 | 2.17 | 0.00 | 1.12 | 14.90 | 247.74 | 13.55 | 304.96 | 0.2776 | 927.0 | 787.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
