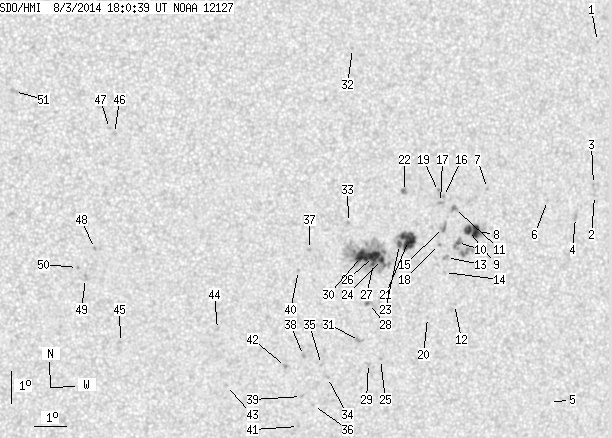

SDO HMI 2014-08-03 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.50 | 228.74 | 29.89 | 120.81 | -7.35 | 249.23 | 15.05 | 228.02 | 0.3466 | 440.3 | 357.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.24 | -1.06 | 256.04 | 21.85 | 252.88 | 0.3910 | 775.0 | 637.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -5.81 | 256.05 | 21.86 | 242.07 | 0.4210 | 806.0 | 616.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -5.46 | 256.00 | 21.82 | 242.75 | 0.4179 | 835.0 | 686.5 | |
| 0.00 | 2.53 | 0.00 | 1.38 | -6.47 | 255.45 | 21.26 | 240.00 | 0.4178 | 767.0 | 647.9 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -12.28 | 254.95 | 20.77 | 228.53 | 0.4643 | 579.0 | 462.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -5.90 | 254.51 | 20.32 | 240.06 | 0.4004 | 821.0 | 604.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -5.46 | 252.55 | 18.37 | 238.45 | 0.3696 | 777.0 | 623.5 | |
| 7.41 | 19.44 | 3.96 | 10.39 | -6.78 | 252.24 | 18.06 | 235.02 | 0.3773 | 997.8 | 559.4 | |
| 4.52 | -8.00 | 2.41 | -8.00 | -6.74 | 251.98 | 17.80 | 234.71 | 0.3735 | 1139.4 | 999999 | |
| 0.90 | 16.55 | 0.48 | 8.84 | -7.11 | 251.64 | 17.46 | 233.39 | 0.3725 | 1016.2 | 709.0 | |
| 0.00 | 3.71 | 0.00 | 1.97 | -6.04 | 251.51 | 17.32 | 235.55 | 0.3606 | 838.0 | 745.4 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -9.05 | 251.63 | 17.45 | 229.36 | 0.3918 | -871.0 | -635.5 | |
| 0.00 | 3.16 | 0.00 | 1.69 | -7.56 | 251.31 | 17.12 | 231.86 | 0.3726 | 701.0 | 595.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -8.03 | 251.26 | 17.08 | 230.80 | 0.3768 | 705.0 | 585.0 | |
| 0.00 | 4.52 | 0.00 | 2.40 | -6.62 | 251.18 | 16.99 | 233.70 | 0.3617 | 903.0 | 809.1 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -5.66 | 251.15 | 16.96 | 235.87 | 0.3522 | 843.0 | 733.7 | |
| 0.00 | 2.26 | 0.00 | 1.20 | -5.84 | 251.06 | 16.87 | 235.29 | 0.3527 | 966.0 | 770.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -7.15 | 251.07 | 16.88 | 232.36 | 0.3655 | 737.0 | 573.9 | |
| 0.00 | 2.17 | 0.00 | 1.15 | -5.50 | 250.98 | 16.80 | 235.98 | 0.3485 | 948.0 | 774.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -9.43 | 250.78 | 16.59 | 227.19 | 0.3857 | -670.0 | -479.8 | |
| 17.00 | 28.21 | 8.99 | 14.91 | -6.99 | 250.07 | 15.89 | 230.99 | 0.3512 | 1025.7 | 820.9 | |
| 0.00 | 3.16 | 0.00 | 1.66 | -5.46 | 249.90 | 15.71 | 234.25 | 0.3336 | 1091.0 | 908.6 | |
| 1.90 | -21.00 | 1.00 | -21.00 | -7.11 | 249.79 | 15.60 | 230.22 | 0.3488 | 1120.0 | 999999 | |
| 3.07 | 89.16 | 1.62 | 46.94 | -7.56 | 249.23 | 15.05 | 228.19 | 0.3467 | 1081.1 | 572.4 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -10.71 | 249.33 | 15.15 | 222.19 | 0.3839 | -842.0 | -711.8 | |
| 9.22 | -24.00 | 4.86 | -24.00 | -7.46 | 248.97 | 14.79 | 227.91 | 0.3425 | 1280.8 | 999999 | |
| 1.63 | -24.00 | 0.86 | -24.00 | -7.68 | 248.98 | 14.80 | 227.45 | 0.3450 | 933.6 | 999999 | |
| 0.00 | 3.53 | 0.00 | 1.87 | -8.93 | 248.90 | 14.72 | 224.71 | 0.3582 | 864.0 | 739.8 | |
| 0.00 | 2.17 | 0.00 | 1.16 | -10.83 | 248.95 | 14.77 | 221.26 | 0.3813 | -678.0 | -646.7 | |
| 10.85 | -24.00 | 5.71 | -24.00 | -7.45 | 248.59 | 14.41 | 227.19 | 0.3378 | 1216.4 | 999999 | |
| 0.00 | 3.53 | 0.00 | 1.88 | -10.09 | 248.63 | 14.45 | 221.96 | 0.3689 | -830.0 | -631.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -1.01 | 248.20 | 14.01 | 243.98 | 0.2705 | 849.0 | 641.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -6.38 | 248.15 | 13.96 | 228.73 | 0.3205 | -731.0 | -539.7 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -11.24 | 247.66 | 13.48 | 217.98 | 0.3730 | -929.0 | -723.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -10.82 | 247.45 | 13.27 | 218.26 | 0.3656 | -672.0 | -614.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -12.12 | 247.26 | 13.07 | 215.71 | 0.3805 | -845.0 | -600.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -7.19 | 246.95 | 12.76 | 224.27 | 0.3153 | 829.0 | 664.9 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -10.52 | 246.87 | 12.68 | 217.53 | 0.3559 | -953.0 | -748.7 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -11.82 | 246.86 | 12.68 | 215.35 | 0.3729 | -767.0 | -608.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -7.84 | 246.62 | 12.43 | 222.11 | 0.3194 | 837.0 | 653.4 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -12.78 | 246.81 | 12.63 | 213.78 | 0.3851 | -714.0 | -505.7 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -10.86 | 246.31 | 12.13 | 215.72 | 0.3549 | -921.0 | -779.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -11.42 | 244.47 | 10.28 | 210.51 | 0.3462 | -948.0 | -759.1 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -9.64 | 244.13 | 9.94 | 212.50 | 0.3182 | -955.0 | -744.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -10.00 | 241.11 | 6.93 | 203.43 | 0.3000 | -846.0 | -672.3 | |
| 0.00 | 1.72 | 0.00 | 0.87 | -3.47 | 240.84 | 6.66 | 215.35 | 0.2009 | -850.0 | -691.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -3.32 | 240.69 | 6.50 | 215.17 | 0.1972 | -1017.0 | -772.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -7.03 | 240.26 | 6.07 | 205.11 | 0.2486 | -965.0 | -760.8 | |
| 0.00 | 3.16 | 0.00 | 1.62 | -7.97 | 239.99 | 5.81 | 202.66 | 0.2613 | -778.0 | -677.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.62 | 239.74 | 5.56 | 202.29 | 0.2542 | -989.0 | -806.8 | |
| 0.00 | 3.98 | 0.00 | 1.99 | -2.15 | 237.78 | 3.60 | 204.00 | 0.1548 | -873.0 | -698.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
