SDO HMI 2014-08-03 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.08 | 428.79 | 52.29 | 220.18 | -7.42 | 229.39 | -4.79 | 162.07 | 0.2603 | 324.8 | 269.9 | |
|
previous
or next observation for the same group /

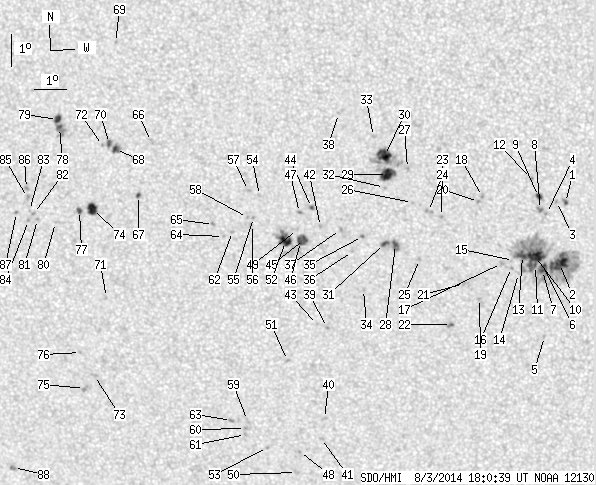

back to the solar disc SDO HMI 2014-08-03 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 3.07 | 0.27 | 1.56 | -6.15 | 234.49 | 0.30 | 181.44 | 0.2107 | 1070.2 | 794.2 | |
| 17.00 | 189.80 | 8.68 | 96.89 | -8.05 | 234.30 | 0.12 | 180.49 | 0.2431 | 1164.7 | 491.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -6.12 | 234.21 | 0.03 | 180.14 | 0.2101 | 752.0 | 511.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -6.49 | 233.91 | -0.28 | 178.72 | 0.2165 | 709.0 | 556.6 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -10.35 | 233.84 | -0.35 | 178.78 | 0.2821 | 963.0 | 756.7 | |
| 2.44 | -2.00 | 1.25 | -2.00 | -8.15 | 233.81 | -0.37 | 178.49 | 0.2448 | 1268.7 | 999999 | |
| 2.44 | -2.00 | 1.25 | -2.00 | -8.27 | 233.78 | -0.40 | 178.37 | 0.2469 | 1044.3 | 999999 | |
| 0.00 | 3.35 | 0.00 | 1.70 | -6.37 | 233.73 | -0.46 | 177.85 | 0.2145 | 1228.0 | 955.4 | |
| 2.17 | 3.80 | 1.10 | 1.92 | -5.96 | 233.66 | -0.52 | 177.49 | 0.2076 | 871.2 | 591.2 | |
| 11.30 | -2.00 | 5.77 | -2.00 | -7.83 | 233.57 | -0.62 | 177.43 | 0.2396 | 1353.0 | 999999 | |
| 0.99 | -2.00 | 0.51 | -2.00 | -8.12 | 233.57 | -0.62 | 177.48 | 0.2444 | 1112.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -5.40 | 233.45 | -0.73 | 176.30 | 0.1982 | -951.0 | -797.9 | |
| 4.79 | -2.00 | 2.44 | -2.00 | -7.80 | 233.17 | -1.02 | 175.77 | 0.2395 | 1127.1 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -8.37 | 233.04 | -1.14 | 175.44 | 0.2492 | 710.0 | 542.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.96 | 232.89 | -1.29 | 174.69 | 0.2425 | 311.0 | 460.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.18 | 232.83 | -1.36 | 174.52 | 0.2463 | 954.0 | 735.6 | |
| 0.00 | 1.99 | 0.00 | 1.02 | -8.05 | 232.52 | -1.66 | 173.23 | 0.2448 | 961.0 | 694.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -5.96 | 231.95 | -2.23 | 169.36 | 0.2110 | -1011.0 | -829.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -9.16 | 231.84 | -2.35 | 171.18 | 0.2648 | 947.0 | 752.7 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -6.12 | 231.83 | -2.36 | 168.93 | 0.2140 | -923.0 | -575.4 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -8.69 | 231.38 | -2.80 | 169.16 | 0.2583 | 839.0 | 684.0 | |
| 0.45 | 2.44 | 0.23 | 1.26 | -9.98 | 230.97 | -3.22 | 168.60 | 0.2811 | 1039.8 | 897.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.59 | 230.69 | -3.49 | 164.41 | 0.2263 | 1068.0 | 877.6 | |
| 0.00 | 3.16 | 0.00 | 1.61 | -6.44 | 230.30 | -3.89 | 162.54 | 0.2257 | 776.0 | 727.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.94 | 230.00 | -4.18 | 163.24 | 0.2516 | 901.0 | 764.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -6.16 | 229.81 | -4.38 | 160.09 | 0.2239 | 872.0 | 713.8 | |
| 0.00 | 0.36 | 0.00 | 0.18 | -5.11 | 229.66 | -4.52 | 157.70 | 0.2079 | 994.0 | 839.5 | |
| 2.17 | 10.13 | 1.11 | 5.18 | -7.48 | 229.27 | -4.92 | 159.87 | 0.2480 | 1141.8 | 923.4 | |
| 11.12 | 53.44 | 5.64 | 27.08 | -5.30 | 229.05 | -5.14 | 155.39 | 0.2151 | 1128.1 | 120.5 | |
| 11.66 | -29.00 | 5.91 | -29.00 | -4.71 | 228.96 | -5.22 | 153.83 | 0.2066 | -1020.3 | 999999 | |
| 1.54 | -28.00 | 0.79 | -28.00 | -7.45 | 228.93 | -5.25 | 158.57 | 0.2496 | 1068.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.70 | 228.95 | -5.23 | 155.76 | 0.2221 | 820.0 | 688.9 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -4.13 | 228.63 | -5.56 | 151.04 | 0.2003 | -939.0 | -732.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -8.90 | 228.26 | -5.92 | 158.26 | 0.2765 | 775.0 | 714.6 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -7.23 | 228.26 | -5.93 | 155.76 | 0.2507 | 1193.0 | 968.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -7.71 | 227.94 | -6.24 | 155.41 | 0.2602 | 801.0 | 671.2 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -7.02 | 227.58 | -6.60 | 152.98 | 0.2524 | 774.0 | 642.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -3.43 | 227.56 | -6.62 | 144.65 | 0.1999 | -671.0 | -521.0 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -10.11 | 227.12 | -7.07 | 156.30 | 0.3026 | -888.0 | -748.9 | |
| 0.00 | 2.62 | 0.00 | 1.39 | -13.01 | 226.95 | -7.24 | 159.26 | 0.3481 | -805.0 | -628.3 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -13.66 | 226.83 | -7.35 | 159.62 | 0.3587 | -866.0 | -762.7 | |
| 0.00 | 2.08 | 0.00 | 1.07 | -6.94 | 226.97 | -7.22 | 150.69 | 0.2560 | 829.0 | 607.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.02 | 226.81 | -7.38 | 155.25 | 0.3033 | -830.0 | -560.2 | |
| 0.63 | 1.54 | 0.32 | 0.79 | -6.35 | 226.70 | -7.49 | 148.60 | 0.2497 | 1070.1 | 912.7 | |
| 2.71 | 9.22 | 1.39 | 4.74 | -7.35 | 226.46 | -7.72 | 149.82 | 0.2662 | 1107.0 | 833.6 | |
| 3.62 | -45.00 | 1.86 | -45.00 | -7.41 | 226.34 | -7.85 | 149.54 | 0.2682 | 1065.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -6.51 | 226.33 | -7.86 | 147.68 | 0.2553 | 990.0 | 870.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -14.09 | 226.12 | -8.06 | 158.29 | 0.3693 | -917.0 | -791.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -7.04 | 226.25 | -7.93 | 148.54 | 0.2636 | 881.0 | 577.8 | |
| 0.00 | 2.17 | 0.00 | 1.16 | -14.77 | 226.00 | -8.19 | 158.69 | 0.3803 | -843.0 | -692.3 | |
| 0.00 | 2.08 | 0.00 | 1.09 | -11.17 | 225.84 | -8.34 | 154.11 | 0.3275 | 939.0 | 624.4 | |
| 6.51 | 18.63 | 3.35 | 9.59 | -7.42 | 225.88 | -8.31 | 148.09 | 0.2724 | 1078.5 | 869.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -13.97 | 225.11 | -9.07 | 155.74 | 0.3740 | -790.0 | -655.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -6.00 | 225.10 | -9.09 | 142.64 | 0.2600 | 815.0 | 611.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -6.68 | 224.90 | -9.29 | 143.60 | 0.2713 | 846.0 | 673.0 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -6.90 | 224.86 | -9.32 | 143.97 | 0.2746 | 406.0 | 449.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -5.85 | 224.76 | -9.43 | 141.26 | 0.2615 | 749.0 | 609.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -6.69 | 224.71 | -9.47 | 143.06 | 0.2732 | 832.0 | 666.4 | |
| 0.00 | 2.17 | 0.00 | 1.15 | -13.11 | 224.51 | -9.67 | 153.29 | 0.3656 | -748.0 | -623.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -13.37 | 224.44 | -9.75 | 153.44 | 0.3699 | -881.0 | -591.5 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -13.56 | 224.43 | -9.75 | 153.66 | 0.3728 | -802.0 | -578.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -7.13 | 224.24 | -9.95 | 142.67 | 0.2840 | 773.0 | 630.4 | |
| 0.00 | 2.17 | 0.00 | 1.16 | -13.12 | 224.01 | -10.18 | 152.11 | 0.3695 | -887.0 | -711.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -7.29 | 223.95 | -10.23 | 142.24 | 0.2890 | 719.0 | 530.0 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -6.92 | 223.65 | -10.54 | 140.62 | 0.2873 | 939.0 | 704.1 | |
| 0.00 | 2.35 | 0.00 | 1.21 | -4.39 | 221.77 | -12.42 | 129.55 | 0.2792 | -753.0 | -595.1 | |
| 1.09 | 2.08 | 0.56 | 1.08 | -6.07 | 221.33 | -12.86 | 132.90 | 0.3035 | 802.9 | 663.5 | |
| 2.89 | 9.77 | 1.50 | 5.06 | -4.66 | 220.64 | -13.55 | 127.82 | 0.2969 | -1124.1 | -834.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -1.36 | 220.68 | -13.50 | 118.07 | 0.2657 | -870.0 | -649.9 | |
| 1.63 | -68.00 | 0.84 | -68.00 | -4.48 | 220.45 | -13.73 | 126.96 | 0.2975 | -1071.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.29 | 220.21 | -13.98 | 137.46 | 0.3541 | -830.0 | -641.7 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -4.54 | 220.23 | -13.95 | 126.69 | 0.3011 | -828.0 | -665.9 | |
| 0.00 | 2.35 | 0.00 | 1.26 | -11.77 | 219.70 | -14.48 | 140.90 | 0.3898 | -789.0 | -754.7 | |
| 7.69 | 10.22 | 4.03 | 5.35 | -6.54 | 219.87 | -14.32 | 130.93 | 0.3267 | 1061.7 | 669.2 | |
| 0.00 | 3.53 | 0.00 | 1.90 | -12.20 | 219.36 | -14.83 | 140.93 | 0.3985 | -731.0 | -657.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -11.05 | 219.29 | -14.89 | 138.89 | 0.3852 | -804.0 | -684.6 | |
| 1.72 | 2.71 | 0.90 | 1.42 | -6.58 | 219.45 | -14.73 | 130.22 | 0.3323 | 902.8 | 749.5 | |
| 1.54 | 14.92 | 0.80 | 7.78 | -4.02 | 218.89 | -15.30 | 122.79 | 0.3144 | -1115.6 | -748.7 | |
| 3.44 | -78.00 | 1.79 | -78.00 | -3.78 | 218.83 | -15.36 | 122.03 | 0.3131 | -1070.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -6.98 | 218.68 | -15.51 | 129.65 | 0.3462 | -735.0 | -429.6 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -6.90 | 218.11 | -16.08 | 128.46 | 0.3526 | -949.0 | -779.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -6.71 | 217.99 | -16.20 | 127.83 | 0.3523 | -932.0 | -734.5 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -6.62 | 217.86 | -16.32 | 127.42 | 0.3530 | -730.0 | -551.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -6.94 | 217.82 | -16.37 | 128.04 | 0.3567 | -754.0 | -624.0 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -6.22 | 217.81 | -16.37 | 126.41 | 0.3497 | -930.0 | -791.6 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -5.94 | 217.79 | -16.40 | 125.72 | 0.3473 | -1013.0 | -831.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -6.70 | 217.44 | -16.74 | 126.88 | 0.3592 | -882.0 | -759.8 | |
| 0.00 | 2.89 | 0.00 | 1.61 | -14.82 | 216.86 | -17.33 | 140.56 | 0.4551 | -900.0 | -731.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
