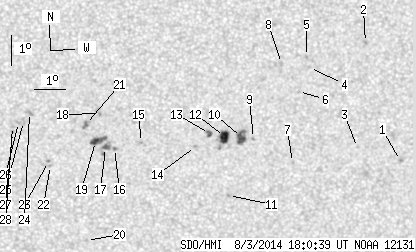

SDO HMI 2014-08-03 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.62 | 81.89 | 11.34 | 44.93 | -18.95 | 238.47 | 4.28 | 189.46 | 0.4314 | 139.6 | -130.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.51 | -19.97 | 246.10 | 11.91 | 204.03 | 0.4783 | 857.0 | 749.0 | |
| 0.00 | 1.90 | 0.00 | 1.03 | -16.01 | 244.70 | 10.52 | 205.23 | 0.4133 | 983.0 | 705.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -19.50 | 244.65 | 10.46 | 201.79 | 0.4629 | 707.0 | 486.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -16.80 | 242.94 | 8.76 | 200.70 | 0.4139 | 727.0 | 535.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -16.43 | 242.83 | 8.64 | 200.78 | 0.4079 | 719.0 | 576.8 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -17.59 | 242.62 | 8.44 | 199.35 | 0.4239 | 544.0 | 488.0 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -19.96 | 242.55 | 8.36 | 197.40 | 0.4588 | 641.0 | 514.9 | |
| 0.00 | 2.26 | 0.00 | 1.23 | -16.65 | 242.04 | 7.85 | 198.84 | 0.4068 | 334.0 | 391.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -19.13 | 241.24 | 7.05 | 195.32 | 0.4407 | 660.0 | 513.2 | |
| 6.51 | 11.30 | 3.59 | 6.22 | -19.10 | 240.85 | 6.66 | 194.53 | 0.4385 | 881.4 | 751.9 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.05 | 240.50 | 6.32 | 192.75 | 0.4669 | 770.0 | 588.3 | |
| 8.23 | 13.74 | 4.53 | 7.56 | -19.05 | 240.29 | 6.11 | 193.40 | 0.4358 | 1063.2 | 629.7 | |
| 1.81 | 3.98 | 0.99 | 2.18 | -18.95 | 239.80 | 5.62 | 192.42 | 0.4324 | 1019.5 | 777.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -19.38 | 239.37 | 5.18 | 191.27 | 0.4377 | 919.0 | 699.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.23 | 237.62 | 3.43 | 187.57 | 0.4308 | -850.0 | -709.9 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -19.42 | 236.75 | 2.56 | 185.62 | 0.4323 | -782.0 | -594.9 | |
| 0.00 | 7.78 | 0.00 | 4.27 | -19.39 | 236.46 | 2.27 | 184.99 | 0.4313 | -955.0 | -754.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -18.25 | 236.25 | 2.07 | 184.77 | 0.4130 | -1004.0 | -835.7 | |
| 4.07 | 9.68 | 2.23 | 5.30 | -19.18 | 236.13 | 1.95 | 184.32 | 0.4277 | -1061.0 | -891.2 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -22.56 | 235.88 | 1.69 | 183.27 | 0.4800 | 764.0 | 583.5 | |
| 0.00 | 3.89 | 0.00 | 2.12 | -18.61 | 235.81 | 1.62 | 183.69 | 0.4183 | -998.0 | -869.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -19.99 | 234.68 | 0.50 | 181.07 | 0.4393 | -634.0 | -564.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -19.85 | 234.62 | 0.43 | 180.94 | 0.4372 | -979.0 | -750.0 | |
| 0.00 | 2.98 | 0.00 | 1.62 | -18.21 | 234.01 | -0.18 | 179.59 | 0.4110 | -951.0 | -723.8 | |
| 0.00 | 2.80 | 0.00 | 1.53 | -18.51 | 233.82 | -0.37 | 179.15 | 0.4158 | -717.0 | -607.7 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -18.54 | 233.66 | -0.53 | 178.79 | 0.4164 | -746.0 | -689.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.88 | 233.46 | -0.72 | 178.37 | 0.4218 | -893.0 | -705.2 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.67 | 233.46 | -0.72 | 178.36 | 0.4186 | -808.0 | -667.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
