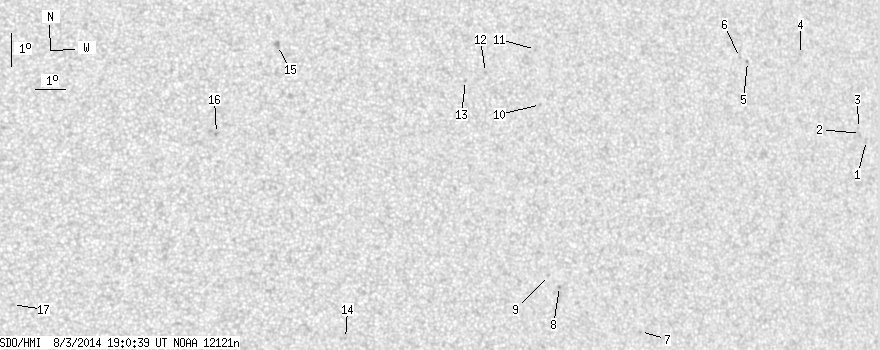

SDO HMI 2014-08-03 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.06 | 0.00 | 11.71 | 14.23 | 258.30 | 24.66 | 292.60 | 0.4356 | 289.1 | 288.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.29 | 13.67 | 270.42 | 36.79 | 284.85 | 0.6042 | -631.0 | -496.2 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 13.90 | 270.23 | 36.60 | 285.27 | 0.6021 | -652.0 | -647.9 | |
| 0.00 | 0.27 | 0.00 | 0.17 | 14.06 | 270.18 | 36.55 | 285.55 | 0.6018 | -604.0 | -538.0 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 16.46 | 268.40 | 34.77 | 290.09 | 0.5845 | -673.0 | -524.6 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 16.36 | 266.35 | 32.72 | 290.73 | 0.5567 | -700.0 | -566.9 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 16.50 | 266.08 | 32.45 | 291.10 | 0.5535 | -596.0 | -502.9 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 8.32 | 261.44 | 27.81 | 276.55 | 0.4665 | 619.0 | 444.6 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 9.81 | 258.77 | 25.14 | 280.42 | 0.4274 | 873.0 | 735.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 10.17 | 258.42 | 24.79 | 281.34 | 0.4227 | 778.0 | 635.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 15.40 | 258.71 | 25.08 | 293.02 | 0.4458 | 803.0 | 646.6 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 17.11 | 258.77 | 25.14 | 296.54 | 0.4557 | 730.0 | 600.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 16.47 | 256.94 | 23.31 | 296.67 | 0.4264 | 757.0 | 533.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 16.25 | 256.22 | 22.59 | 296.81 | 0.4149 | 790.0 | 657.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 8.51 | 251.59 | 17.96 | 279.22 | 0.3102 | 759.0 | 609.3 | |
| 0.00 | 4.16 | 0.00 | 2.19 | 17.55 | 250.02 | 16.39 | 307.31 | 0.3397 | 888.0 | 712.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 14.89 | 247.80 | 14.17 | 303.80 | 0.2859 | 954.0 | 820.6 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.79 | 241.11 | 7.47 | 297.85 | 0.1456 | 819.0 | 598.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
