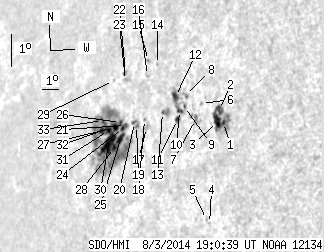

SDO HMI 2014-08-03 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.56 | 277.24 | 64.03 | 278.25 | 9.22 | 172.80 | -60.84 | 82.75 | 0.8702 | 263.6 | 133.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 33.73 | 1.18 | 29.39 | 9.89 | 177.97 | -55.67 | 82.08 | 0.8235 | -937.7 | -524.6 | |
| 3.62 | -1.00 | 3.17 | -1.00 | 10.26 | 177.65 | -55.98 | 81.63 | 0.8266 | -692.2 | 999999 | |
| 8.68 | -1.00 | 7.60 | -1.00 | 9.89 | 177.63 | -56.00 | 82.08 | 0.8267 | -703.9 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 6.78 | 177.86 | -55.77 | 85.86 | 0.8253 | -289.0 | -329.0 | |
| 0.00 | 1.18 | 0.00 | 1.03 | 6.89 | 177.68 | -55.95 | 85.72 | 0.8271 | -284.0 | -266.7 | |
| 0.00 | 1.27 | 0.00 | 1.14 | 10.36 | 176.60 | -57.03 | 81.50 | 0.8365 | -455.0 | -422.0 | |
| 0.00 | 7.14 | 0.00 | 6.46 | 9.85 | 176.40 | -57.23 | 82.11 | 0.8385 | -602.0 | -429.6 | |
| 0.00 | 2.80 | 0.00 | 2.59 | 10.52 | 175.63 | -58.00 | 81.30 | 0.8456 | -505.0 | -365.1 | |
| 0.54 | 19.53 | 0.50 | 18.19 | 10.19 | 175.67 | -57.96 | 81.70 | 0.8452 | -166.7 | 60.7 | |
| 1.90 | -9.00 | 1.76 | -9.00 | 10.04 | 175.42 | -58.22 | 81.87 | 0.8476 | -154.6 | 999999 | |
| 1.99 | 3.80 | 1.85 | 3.53 | 9.76 | 175.38 | -58.25 | 82.20 | 0.8480 | -161.5 | -82.0 | |
| 3.80 | -9.00 | 3.56 | -9.00 | 10.44 | 175.06 | -58.57 | 81.39 | 0.8508 | 344.7 | 999999 | |
| 0.54 | 5.79 | 0.52 | 5.48 | 9.89 | 174.44 | -59.19 | 82.03 | 0.8564 | 735.7 | 516.3 | |
| 0.00 | 0.72 | 0.00 | 0.70 | 11.31 | 173.68 | -59.95 | 80.37 | 0.8629 | 321.0 | 365.5 | |
| 0.00 | 1.54 | 0.00 | 1.52 | 11.38 | 173.09 | -60.54 | 80.28 | 0.8680 | -63.0 | -109.8 | |
| 0.00 | 2.26 | 0.00 | 2.24 | 10.92 | 173.18 | -60.45 | 80.81 | 0.8672 | 598.0 | 463.0 | |
| 0.00 | 2.71 | 0.00 | 2.65 | 9.36 | 173.61 | -60.02 | 82.63 | 0.8638 | 652.0 | 516.6 | |
| 0.00 | 1.09 | 0.00 | 1.07 | 9.59 | 173.42 | -60.21 | 82.36 | 0.8654 | 416.0 | 403.7 | |
| 0.36 | 5.43 | 0.36 | 5.41 | 9.36 | 172.98 | -60.65 | 82.60 | 0.8692 | 561.0 | 517.4 | |
| 0.81 | -19.00 | 0.81 | -19.00 | 9.44 | 172.83 | -60.80 | 82.51 | 0.8705 | 643.1 | 999999 | |
| 0.27 | 183.55 | 0.28 | 192.02 | 9.30 | 172.29 | -61.34 | 82.65 | 0.8750 | 712.3 | 214.8 | |
| 0.00 | 2.17 | 0.00 | 2.24 | 10.89 | 171.77 | -61.86 | 80.83 | 0.8791 | 456.0 | 455.0 | |
| 0.00 | 1.45 | 0.00 | 1.49 | 10.65 | 171.86 | -61.77 | 81.10 | 0.8784 | 612.0 | 535.9 | |
| 1.81 | -21.00 | 1.85 | -21.00 | 9.20 | 172.13 | -61.50 | 82.77 | 0.8764 | 734.5 | 999999 | |
| 5.24 | -21.00 | 5.36 | -21.00 | 8.88 | 172.09 | -61.54 | 83.12 | 0.8768 | 754.9 | 999999 | |
| 1.18 | -21.00 | 1.21 | -21.00 | 9.36 | 171.95 | -61.68 | 82.57 | 0.8779 | 607.1 | 999999 | |
| 3.16 | -21.00 | 3.28 | -21.00 | 9.19 | 171.67 | -61.96 | 82.77 | 0.8802 | 698.8 | 999999 | |
| 2.35 | -21.00 | 2.43 | -21.00 | 8.58 | 171.78 | -61.85 | 83.46 | 0.8795 | 839.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.86 | 10.58 | 171.08 | -62.55 | 81.16 | 0.8847 | 226.0 | 218.3 | |
| 18.90 | -21.00 | 19.79 | -21.00 | 8.64 | 171.37 | -62.26 | 83.38 | 0.8828 | 588.9 | 999999 | |
| 3.80 | -21.00 | 3.99 | -21.00 | 9.05 | 171.25 | -62.38 | 82.90 | 0.8837 | 529.4 | 999999 | |
| 2.89 | -21.00 | 3.08 | -21.00 | 9.02 | 170.85 | -62.78 | 82.92 | 0.8869 | 289.0 | 999999 | |
| 1.36 | -21.00 | 1.45 | -21.00 | 9.32 | 170.76 | -62.87 | 82.58 | 0.8875 | 379.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
