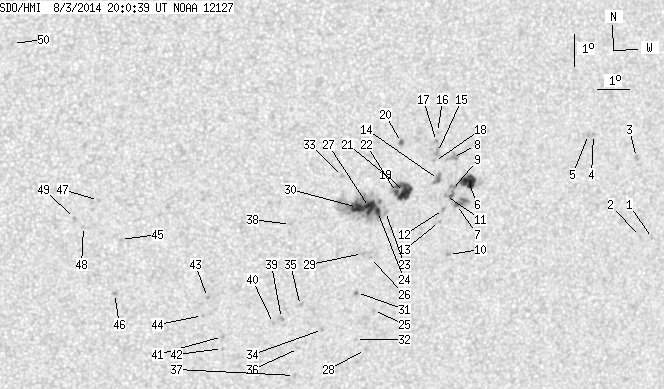

SDO HMI 2014-08-03 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.85 | 229.63 | 32.40 | 122.27 | -7.50 | 249.68 | 16.60 | 230.66 | 0.3676 | 415.9 | 355.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.62 | -8.79 | 258.39 | 25.31 | 239.91 | 0.4902 | 621.0 | 475.9 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -8.71 | 257.97 | 24.90 | 239.64 | 0.4842 | 812.0 | 592.8 | |
| 0.00 | 2.26 | 0.00 | 1.26 | -6.23 | 257.69 | 24.61 | 244.02 | 0.4624 | 800.0 | 696.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -5.45 | 256.22 | 23.14 | 244.15 | 0.4365 | 820.0 | 674.1 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -5.44 | 256.05 | 22.97 | 244.00 | 0.4341 | 892.0 | 724.8 | |
| 13.65 | 21.43 | 7.34 | 11.53 | -6.75 | 252.17 | 19.09 | 236.58 | 0.3908 | 1044.9 | 389.4 | |
| 0.99 | 12.39 | 0.54 | 6.67 | -7.45 | 251.81 | 18.73 | 234.57 | 0.3924 | 752.1 | 631.5 | |
| 0.00 | 7.41 | 0.00 | 3.96 | -5.98 | 251.62 | 18.54 | 237.49 | 0.3767 | 974.0 | 738.9 | |
| 0.00 | 8.50 | 0.00 | 4.56 | -7.01 | 251.63 | 18.55 | 235.24 | 0.3859 | 91.0 | 258.8 | |
| 0.00 | 1.90 | 0.00 | 1.03 | -9.01 | 251.62 | 18.54 | 231.14 | 0.4051 | -988.0 | -798.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -7.16 | 251.44 | 18.36 | 234.64 | 0.3849 | -526.0 | -272.2 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -7.59 | 251.39 | 18.31 | 233.66 | 0.3884 | 768.0 | 609.4 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -7.96 | 251.28 | 18.20 | 232.71 | 0.3905 | 474.0 | 476.7 | |
| 1.18 | 6.51 | 0.63 | 3.48 | -6.65 | 251.19 | 18.12 | 235.38 | 0.3769 | 928.7 | 688.9 | |
| 0.00 | 4.25 | 0.00 | 2.26 | -5.81 | 251.13 | 18.05 | 237.17 | 0.3685 | 934.0 | 805.9 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -5.19 | 251.11 | 18.04 | 238.59 | 0.3628 | 752.0 | 565.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -5.47 | 251.09 | 18.01 | 237.90 | 0.3649 | 870.0 | 725.9 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -6.09 | 251.04 | 17.97 | 236.41 | 0.3698 | 683.0 | 606.1 | |
| 14.29 | 27.76 | 7.60 | 14.76 | -7.02 | 250.11 | 17.04 | 232.87 | 0.3663 | 975.8 | 825.1 | |
| 0.90 | 2.35 | 0.48 | 1.24 | -5.46 | 249.97 | 16.89 | 236.20 | 0.3495 | 1055.3 | 874.9 | |
| 2.44 | -19.00 | 1.30 | -19.00 | -6.79 | 249.91 | 16.84 | 233.04 | 0.3615 | 1145.1 | 999999 | |
| 2.26 | -19.00 | 1.20 | -19.00 | -7.01 | 249.86 | 16.78 | 232.47 | 0.3629 | 1188.1 | 999999 | |
| 0.00 | 3.53 | 0.00 | 1.87 | -7.59 | 249.53 | 16.45 | 230.64 | 0.3646 | 697.0 | 609.4 | |
| 4.07 | 82.64 | 2.16 | 43.74 | -7.59 | 249.27 | 16.19 | 230.22 | 0.3613 | 1037.6 | 588.0 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -10.70 | 249.29 | 16.21 | 224.13 | 0.3956 | -816.0 | -680.5 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -9.02 | 249.11 | 16.03 | 226.97 | 0.3747 | 875.0 | 725.4 | |
| 11.21 | -24.00 | 5.94 | -24.00 | -7.45 | 249.01 | 15.93 | 230.04 | 0.3566 | 1227.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -11.94 | 249.10 | 16.02 | 221.66 | 0.4079 | -674.0 | -448.9 | |
| 0.00 | 3.07 | 0.00 | 1.64 | -8.89 | 248.84 | 15.77 | 226.76 | 0.3701 | 913.0 | 665.4 | |
| 9.86 | -24.00 | 5.21 | -24.00 | -7.44 | 248.63 | 15.55 | 229.37 | 0.3518 | 1232.5 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -10.12 | 248.71 | 15.63 | 224.16 | 0.3824 | -845.0 | -711.9 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -11.61 | 248.76 | 15.68 | 221.60 | 0.4004 | -592.0 | -481.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -6.46 | 248.12 | 15.04 | 230.63 | 0.3350 | -671.0 | -558.1 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -11.26 | 247.68 | 14.60 | 220.17 | 0.3848 | -942.0 | -700.5 | |
| 0.00 | 2.80 | 0.00 | 1.49 | -10.48 | 246.93 | 13.86 | 220.07 | 0.3675 | -850.0 | -687.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -11.84 | 246.94 | 13.86 | 217.74 | 0.3846 | -767.0 | -587.1 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -12.71 | 246.85 | 13.78 | 216.22 | 0.3948 | -882.0 | -605.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -7.91 | 246.52 | 13.44 | 224.17 | 0.3319 | 894.0 | 749.4 | |
| 0.00 | 2.98 | 0.00 | 1.59 | -10.87 | 246.35 | 13.27 | 218.16 | 0.3664 | -856.0 | -673.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -11.03 | 246.10 | 13.02 | 217.37 | 0.3659 | -769.0 | -551.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -11.40 | 244.50 | 11.42 | 213.22 | 0.3558 | -911.0 | -699.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -11.78 | 244.51 | 11.44 | 212.66 | 0.3612 | -590.0 | -494.1 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -10.15 | 243.98 | 10.90 | 214.03 | 0.3341 | -997.0 | -864.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -10.72 | 243.84 | 10.76 | 212.75 | 0.3406 | -854.0 | -636.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -8.27 | 241.21 | 8.13 | 209.76 | 0.2833 | -693.0 | -593.3 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -9.97 | 241.06 | 7.98 | 206.57 | 0.3072 | -897.0 | -729.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.04 | 240.51 | 7.43 | 209.80 | 0.2594 | -892.0 | -677.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -7.85 | 240.06 | 6.98 | 206.84 | 0.2678 | -888.0 | -687.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -7.59 | 239.78 | 6.70 | 206.33 | 0.2619 | -1084.0 | -716.3 | |
| 0.00 | 1.90 | 0.00 | 0.95 | -2.15 | 237.83 | 4.75 | 210.47 | 0.1641 | -865.0 | -650.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
