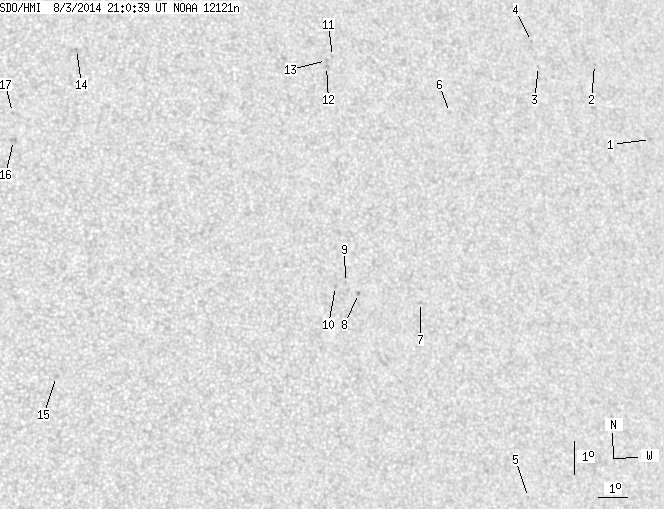

SDO HMI 2014-08-03 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.50 | 0.00 | 13.67 | 13.49 | 257.96 | 25.44 | 289.45 | 0.4450 | 324.8 | 317.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.91 | 13.94 | 270.11 | 37.59 | 285.09 | 0.6154 | -660.0 | -494.8 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 16.37 | 268.40 | 35.88 | 289.53 | 0.5989 | -670.0 | -514.3 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 16.44 | 266.25 | 33.73 | 290.44 | 0.5705 | -624.0 | -456.0 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 17.22 | 266.14 | 33.62 | 291.82 | 0.5718 | -526.0 | -456.9 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 3.33 | 264.38 | 31.85 | 266.70 | 0.5298 | 618.0 | 468.0 | |
| 0.00 | 1.81 | 0.00 | 1.05 | 15.20 | 262.71 | 30.18 | 289.74 | 0.5175 | -534.0 | -411.2 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 9.46 | 260.95 | 28.43 | 278.86 | 0.4772 | 639.0 | 431.1 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 9.83 | 258.83 | 26.31 | 280.13 | 0.4454 | 795.0 | 648.7 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 10.19 | 258.41 | 25.89 | 281.04 | 0.4397 | 779.0 | 687.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 10.08 | 258.06 | 25.54 | 280.90 | 0.4340 | 783.0 | 588.9 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 17.13 | 258.80 | 26.28 | 295.73 | 0.4715 | 555.0 | 425.0 | |
| 0.00 | 2.08 | 0.00 | 1.16 | 16.83 | 258.54 | 26.02 | 295.31 | 0.4663 | 808.0 | 677.3 | |
| 0.00 | 1.81 | 0.00 | 1.01 | 17.02 | 258.57 | 26.04 | 295.66 | 0.4677 | 604.0 | 555.7 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 17.68 | 250.06 | 17.54 | 305.88 | 0.3559 | 810.0 | 688.8 | |
| 0.00 | 2.53 | 0.00 | 1.31 | 7.69 | 248.71 | 16.18 | 277.05 | 0.2796 | 666.0 | 420.7 | |
| 0.00 | 2.71 | 0.00 | 1.41 | 14.94 | 247.74 | 15.22 | 302.15 | 0.3008 | 734.0 | 792.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 15.80 | 247.77 | 15.25 | 304.55 | 0.3086 | 745.0 | 525.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
