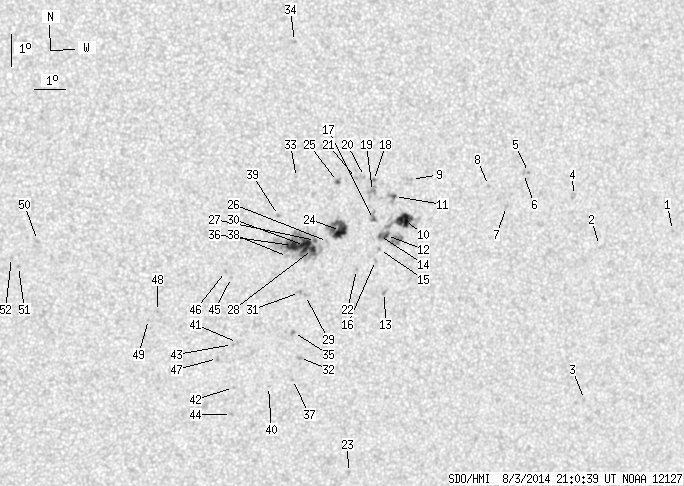

SDO HMI 2014-08-03 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.13 | 246.23 | 31.07 | 131.80 | -7.37 | 250.17 | 17.64 | 232.82 | 0.3789 | 515.0 | 445.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.53 | -7.48 | 261.26 | 28.74 | 245.24 | 0.5270 | 719.0 | 603.9 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -7.82 | 258.76 | 26.23 | 242.52 | 0.4956 | 220.0 | 316.0 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -12.69 | 258.67 | 26.15 | 234.25 | 0.5318 | 682.0 | 565.5 | |
| 0.00 | 3.80 | 0.00 | 2.13 | -6.22 | 257.78 | 25.26 | 244.62 | 0.4713 | 592.0 | 603.6 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -5.43 | 256.23 | 23.71 | 244.73 | 0.4444 | 786.0 | 714.4 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -5.46 | 256.06 | 23.54 | 244.52 | 0.4422 | 833.0 | 561.4 | |
| 0.00 | 2.17 | 0.00 | 1.20 | -6.46 | 255.54 | 23.02 | 241.96 | 0.4420 | 715.0 | 554.3 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -5.78 | 254.91 | 22.39 | 242.68 | 0.4284 | 771.0 | 600.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -5.49 | 252.38 | 19.86 | 240.34 | 0.3907 | 806.0 | 637.1 | |
| 14.11 | 29.30 | 7.61 | 15.82 | -6.76 | 252.20 | 19.68 | 237.34 | 0.3988 | 1011.9 | 231.9 | |
| 0.81 | 6.60 | 0.44 | 3.54 | -6.00 | 251.85 | 19.32 | 238.51 | 0.3875 | 926.9 | 694.2 | |
| 2.17 | 19.44 | 1.17 | 10.49 | -7.21 | 251.63 | 19.11 | 235.62 | 0.3952 | 745.8 | 485.4 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -8.99 | 251.65 | 19.13 | 232.04 | 0.4123 | -1000.0 | -820.6 | |
| 0.72 | -12.00 | 0.39 | -12.00 | -7.20 | 251.41 | 18.88 | 235.31 | 0.3921 | -714.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -7.64 | 251.43 | 18.90 | 234.42 | 0.3964 | 776.0 | 688.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -7.98 | 251.31 | 18.79 | 233.56 | 0.3982 | 790.0 | 587.8 | |
| 0.63 | 6.06 | 0.34 | 3.25 | -6.69 | 251.19 | 18.67 | 236.08 | 0.3847 | 846.7 | 610.5 | |
| 0.00 | 2.17 | 0.00 | 1.16 | -5.48 | 251.15 | 18.63 | 238.73 | 0.3735 | 936.0 | 801.2 | |
| 0.00 | 8.05 | 0.00 | 4.30 | -5.82 | 251.13 | 18.60 | 237.93 | 0.3761 | 952.0 | 764.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -5.34 | 250.85 | 18.33 | 238.63 | 0.3683 | 772.0 | 602.4 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -5.40 | 250.60 | 18.08 | 238.14 | 0.3652 | 883.0 | 755.6 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -8.24 | 250.71 | 18.18 | 232.12 | 0.3930 | 748.0 | 617.7 | |
| 0.00 | 2.17 | 0.00 | 1.21 | -14.71 | 250.87 | 18.35 | 221.18 | 0.4644 | 667.0 | 535.4 | |
| 12.21 | 27.94 | 6.52 | 14.90 | -7.00 | 250.14 | 17.62 | 233.83 | 0.3737 | 981.2 | 938.0 | |
| 0.72 | 3.16 | 0.38 | 1.68 | -5.47 | 249.99 | 17.47 | 237.07 | 0.3575 | 1081.9 | 841.1 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -7.33 | 249.73 | 17.21 | 232.47 | 0.3716 | 776.0 | 601.6 | |
| 0.63 | 90.51 | 0.34 | 48.06 | -7.29 | 249.35 | 16.82 | 231.93 | 0.3662 | 936.6 | 568.9 | |
| 4.43 | -27.00 | 2.36 | -27.00 | -7.56 | 249.26 | 16.74 | 231.19 | 0.3680 | 1022.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -9.00 | 249.10 | 16.58 | 227.96 | 0.3810 | 833.0 | 731.1 | |
| 11.75 | -27.00 | 6.25 | -27.00 | -7.43 | 249.00 | 16.48 | 231.03 | 0.3633 | 1203.2 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.16 | -8.90 | 248.90 | 16.38 | 227.82 | 0.3775 | 965.0 | 770.0 | |
| 0.00 | 2.53 | 0.00 | 1.37 | -10.96 | 249.01 | 16.48 | 224.15 | 0.4016 | -854.0 | -750.8 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -5.30 | 248.68 | 16.15 | 235.36 | 0.3382 | -650.0 | -488.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -1.11 | 248.55 | 16.03 | 246.64 | 0.3020 | 794.0 | 642.8 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -10.16 | 248.77 | 16.25 | 225.18 | 0.3899 | -887.0 | -727.5 | |
| 9.95 | -27.00 | 5.27 | -27.00 | -7.42 | 248.62 | 16.09 | 230.39 | 0.3583 | 1213.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -11.65 | 248.82 | 16.30 | 222.62 | 0.4075 | -707.0 | -562.9 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -7.76 | 248.47 | 15.95 | 229.40 | 0.3601 | 160.0 | 270.6 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -6.47 | 248.14 | 15.62 | 231.66 | 0.3425 | -685.0 | -510.0 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -11.85 | 248.06 | 15.53 | 220.92 | 0.4018 | -656.0 | -513.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -10.42 | 246.99 | 14.46 | 221.37 | 0.3733 | -856.0 | -678.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -11.85 | 246.93 | 14.41 | 218.80 | 0.3902 | -819.0 | -610.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -10.48 | 246.83 | 14.31 | 220.95 | 0.3723 | -790.0 | -703.2 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -12.71 | 246.91 | 14.39 | 217.39 | 0.4009 | -824.0 | -602.4 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -8.36 | 246.71 | 14.19 | 224.77 | 0.3458 | 820.0 | 656.8 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -8.17 | 246.51 | 13.99 | 224.77 | 0.3413 | 852.0 | 661.5 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -10.91 | 246.37 | 13.85 | 219.27 | 0.3728 | -923.0 | -759.1 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -9.38 | 244.41 | 11.88 | 217.75 | 0.3333 | -730.0 | -619.6 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -9.62 | 244.13 | 11.61 | 216.65 | 0.3338 | -783.0 | -759.2 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -7.07 | 240.61 | 8.08 | 211.85 | 0.2656 | -666.0 | -673.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -7.88 | 240.03 | 7.51 | 208.50 | 0.2725 | -893.0 | -661.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -7.59 | 239.81 | 7.29 | 208.29 | 0.2665 | -959.0 | -800.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
