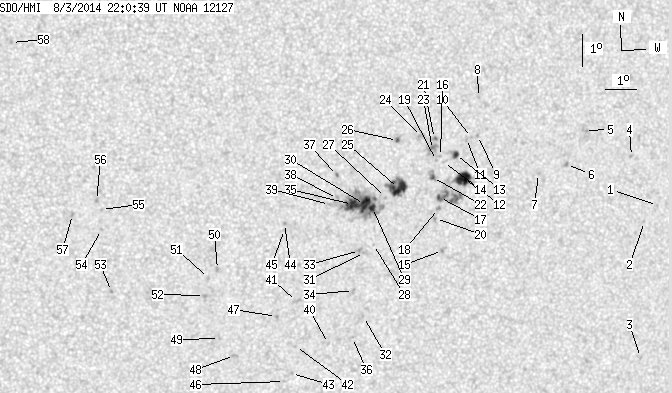

SDO HMI 2014-08-03 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.68 | 227.45 | 31.46 | 122.05 | -7.41 | 249.88 | 17.91 | 232.96 | 0.3835 | 424.1 | 392.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.52 | -7.88 | 258.76 | 26.79 | 242.91 | 0.5034 | 731.0 | 572.5 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -8.36 | 258.34 | 26.37 | 241.68 | 0.5013 | 718.0 | 510.7 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -12.68 | 258.60 | 26.63 | 234.75 | 0.5376 | 660.0 | 540.3 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -6.30 | 257.77 | 25.80 | 244.94 | 0.4795 | 886.0 | 675.8 | |
| 0.00 | 2.80 | 0.00 | 1.55 | -5.42 | 256.14 | 24.17 | 245.19 | 0.4510 | 747.0 | 711.5 | |
| 0.00 | 2.08 | 0.00 | 1.15 | -6.45 | 255.59 | 23.62 | 242.58 | 0.4503 | 715.0 | 557.3 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -6.69 | 254.67 | 22.70 | 241.13 | 0.4394 | 630.0 | 515.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -4.25 | 252.60 | 20.63 | 244.07 | 0.3924 | 612.0 | 600.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -5.43 | 252.61 | 20.64 | 241.43 | 0.4012 | 746.0 | 610.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -5.48 | 252.41 | 20.44 | 241.08 | 0.3989 | 792.0 | 596.7 | |
| 0.00 | 2.08 | 0.00 | 1.12 | -5.51 | 252.25 | 20.28 | 240.82 | 0.3968 | 701.0 | 574.1 | |
| 13.93 | 20.16 | 7.54 | 10.92 | -6.75 | 252.20 | 20.23 | 238.09 | 0.4062 | 1007.3 | 520.7 | |
| 2.53 | 5.79 | 1.37 | 3.12 | -5.99 | 251.91 | 19.94 | 239.33 | 0.3960 | 927.8 | 759.5 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -6.22 | 251.53 | 19.56 | 238.32 | 0.3927 | 623.0 | 442.9 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -8.98 | 251.62 | 19.65 | 232.81 | 0.4187 | -1030.0 | -840.0 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -6.03 | 251.42 | 19.45 | 238.60 | 0.3896 | 729.0 | 536.6 | |
| 1.72 | 24.60 | 0.93 | 13.32 | -7.31 | 251.44 | 19.47 | 235.89 | 0.4010 | -455.3 | 483.4 | |
| 0.00 | 2.17 | 0.00 | 1.17 | -7.66 | 251.42 | 19.45 | 235.16 | 0.4039 | 773.0 | 642.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -6.15 | 251.30 | 19.33 | 238.17 | 0.3889 | 695.0 | 528.5 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -7.97 | 251.34 | 19.37 | 234.41 | 0.4056 | 696.0 | 566.9 | |
| 0.00 | 2.35 | 0.00 | 1.26 | -5.47 | 251.21 | 19.24 | 239.58 | 0.3820 | 888.0 | 762.8 | |
| 0.90 | 5.70 | 0.49 | 3.06 | -6.68 | 251.19 | 19.22 | 236.88 | 0.3920 | 793.8 | 621.4 | |
| 0.00 | 7.60 | 0.00 | 4.07 | -5.81 | 251.16 | 19.19 | 238.74 | 0.3841 | 882.0 | 787.7 | |
| 0.00 | 3.44 | 0.00 | 1.84 | -5.39 | 250.79 | 18.82 | 239.19 | 0.3755 | 715.0 | 733.6 | |
| 14.92 | 28.57 | 7.99 | 15.29 | -6.98 | 250.10 | 18.13 | 234.65 | 0.3803 | 1042.0 | 801.2 | |
| 0.81 | 2.53 | 0.43 | 1.35 | -5.49 | 250.02 | 18.05 | 237.87 | 0.3657 | 1011.8 | 778.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -7.25 | 249.69 | 17.72 | 233.45 | 0.3775 | 842.0 | 712.7 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -8.71 | 249.37 | 17.40 | 229.91 | 0.3880 | -629.0 | -630.3 | |
| 3.53 | 60.04 | 1.88 | 32.00 | -7.55 | 249.29 | 17.32 | 232.16 | 0.3752 | 1023.9 | 677.0 | |
| 10.85 | -29.00 | 5.78 | -29.00 | -7.45 | 249.02 | 17.05 | 231.95 | 0.3708 | 1198.9 | 999999 | |
| 0.00 | 2.35 | 0.00 | 1.26 | -8.95 | 249.09 | 17.12 | 228.97 | 0.3871 | 814.0 | 636.0 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -10.98 | 249.17 | 17.20 | 225.32 | 0.4099 | -749.0 | -618.7 | |
| 0.00 | 2.44 | 0.00 | 1.31 | -8.89 | 248.93 | 16.96 | 228.83 | 0.3844 | 991.0 | 784.3 | |
| 0.00 | 2.17 | 0.00 | 1.17 | -10.14 | 248.79 | 16.82 | 226.20 | 0.3964 | -675.0 | -622.5 | |
| 9.49 | -29.00 | 5.05 | -29.00 | -7.43 | 248.64 | 16.67 | 231.34 | 0.3658 | 1182.0 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -11.64 | 248.85 | 16.88 | 223.64 | 0.4138 | -678.0 | -506.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -6.51 | 248.13 | 16.16 | 232.50 | 0.3500 | -667.0 | -447.2 | |
| 0.00 | 2.35 | 0.00 | 1.25 | -7.23 | 248.15 | 16.18 | 230.94 | 0.3576 | 606.0 | 512.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -7.41 | 247.90 | 15.93 | 230.11 | 0.3563 | 247.0 | 218.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -11.80 | 248.08 | 16.11 | 222.03 | 0.4074 | -648.0 | -531.5 | |
| 0.00 | 3.44 | 0.00 | 1.84 | -10.44 | 246.98 | 15.01 | 222.39 | 0.3794 | -849.0 | -692.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -11.87 | 247.02 | 15.05 | 219.99 | 0.3970 | -886.0 | -660.1 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -12.73 | 246.94 | 14.97 | 218.46 | 0.4068 | -739.0 | -591.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -7.96 | 246.49 | 14.52 | 226.26 | 0.3452 | 901.0 | 705.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -8.15 | 246.50 | 14.53 | 225.88 | 0.3474 | 587.0 | 536.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -12.98 | 246.73 | 14.76 | 217.68 | 0.4079 | -673.0 | -462.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -10.89 | 246.36 | 14.39 | 220.38 | 0.3783 | -910.0 | -792.4 | |
| 0.00 | 2.35 | 0.00 | 1.26 | -12.10 | 245.08 | 13.11 | 215.78 | 0.3808 | -802.0 | -630.9 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -11.55 | 244.57 | 12.60 | 215.60 | 0.3688 | -743.0 | -576.6 | |
| 0.00 | 2.35 | 0.00 | 1.24 | -9.36 | 244.42 | 12.45 | 219.08 | 0.3389 | -744.0 | -648.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -9.63 | 244.15 | 12.18 | 217.94 | 0.3397 | -869.0 | -687.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -10.17 | 244.04 | 12.07 | 216.74 | 0.3456 | -977.0 | -817.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.98 | 241.11 | 9.14 | 209.77 | 0.3165 | -913.0 | -714.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -8.02 | 240.75 | 8.78 | 212.14 | 0.2854 | -705.0 | -536.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -7.39 | 240.74 | 8.77 | 213.32 | 0.2765 | -727.0 | -543.3 | |
| 0.00 | 2.17 | 0.00 | 1.12 | -7.11 | 240.58 | 8.61 | 213.41 | 0.2710 | -832.0 | -581.8 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -7.54 | 239.84 | 7.87 | 210.27 | 0.2706 | -866.0 | -607.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -2.18 | 237.92 | 5.95 | 216.23 | 0.1760 | -868.0 | -735.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
