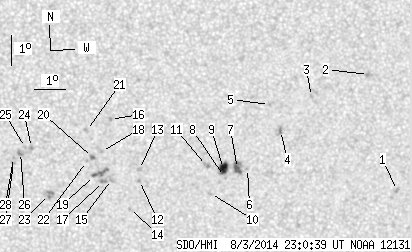

SDO HMI 2014-08-03 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.74 | 80.04 | 7.07 | 44.09 | -18.90 | 238.26 | 6.84 | 194.87 | 0.4397 | -68.0 | -186.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.35 | 0.00 | 1.34 | -19.98 | 246.09 | 14.67 | 208.71 | 0.4975 | 887.0 | 633.3 | |
| 0.00 | 3.07 | 0.00 | 1.69 | -16.08 | 244.82 | 13.40 | 210.84 | 0.4361 | 964.0 | 726.3 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -16.76 | 243.01 | 11.59 | 206.58 | 0.4318 | 750.0 | 562.5 | |
| 0.00 | 2.35 | 0.00 | 1.30 | -17.87 | 242.07 | 10.65 | 203.61 | 0.4412 | 866.0 | 695.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -17.00 | 241.66 | 10.25 | 203.63 | 0.4261 | 854.0 | 679.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -19.12 | 241.07 | 9.65 | 200.54 | 0.4533 | 602.0 | 490.2 | |
| 4.34 | 8.95 | 2.41 | 4.96 | -19.11 | 240.74 | 9.32 | 199.91 | 0.4515 | 868.6 | 703.9 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -19.37 | 240.33 | 8.92 | 198.90 | 0.4532 | 414.0 | 503.6 | |
| 7.05 | 9.77 | 3.91 | 5.41 | -19.10 | 240.29 | 8.87 | 199.01 | 0.4490 | 1019.6 | 695.2 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -19.94 | 239.91 | 8.49 | 197.65 | 0.4594 | 440.0 | 523.4 | |
| 0.00 | 3.53 | 0.00 | 1.95 | -18.99 | 239.73 | 8.31 | 197.98 | 0.4446 | 807.0 | 763.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -19.46 | 237.57 | 6.15 | 193.26 | 0.4426 | -687.0 | -568.1 | |
| 0.00 | 2.62 | 0.00 | 1.44 | -19.09 | 237.56 | 6.14 | 193.43 | 0.4369 | -828.0 | -555.2 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -20.41 | 237.28 | 5.86 | 192.17 | 0.4560 | -680.0 | -569.9 | |
| 0.00 | 2.62 | 0.00 | 1.44 | -19.42 | 236.66 | 5.24 | 191.38 | 0.4389 | -659.0 | -615.7 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -17.41 | 236.57 | 5.15 | 192.19 | 0.4075 | -948.0 | -801.4 | |
| 0.00 | 3.07 | 0.00 | 1.69 | -19.48 | 236.41 | 4.99 | 190.80 | 0.4391 | -872.0 | -764.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.47 | 236.31 | 4.89 | 191.07 | 0.4232 | -870.0 | -676.8 | |
| 0.81 | 8.59 | 0.45 | 4.72 | -19.28 | 236.11 | 4.69 | 190.26 | 0.4351 | -987.6 | -847.3 | |
| 0.54 | 2.26 | 0.30 | 1.24 | -18.67 | 236.03 | 4.61 | 190.35 | 0.4254 | -1047.5 | -860.0 | |
| 0.00 | 2.26 | 0.00 | 1.23 | -17.77 | 235.81 | 4.39 | 190.28 | 0.4107 | -859.0 | -717.2 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -18.80 | 235.84 | 4.42 | 189.88 | 0.4270 | -830.0 | -716.8 | |
| 0.00 | 7.14 | 0.00 | 3.94 | -19.90 | 234.67 | 3.25 | 186.96 | 0.4415 | -855.0 | -641.2 | |
| 0.00 | 1.90 | 0.00 | 1.03 | -18.32 | 234.06 | 2.64 | 186.07 | 0.4155 | -921.0 | -686.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -18.32 | 233.87 | 2.45 | 185.63 | 0.4152 | -827.0 | -586.3 | |
| 0.00 | 3.35 | 0.00 | 1.82 | -18.49 | 233.71 | 2.29 | 185.23 | 0.4175 | -815.0 | -791.0 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -18.82 | 233.49 | 2.07 | 184.66 | 0.4225 | -643.0 | -617.2 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -18.65 | 233.49 | 2.07 | 184.69 | 0.4199 | -826.0 | -737.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
