SDO HMI 2014-08-04 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.83 | 414.25 | 51.50 | 212.27 | -7.39 | 228.93 | -1.93 | 172.98 | 0.2523 | 245.5 | 260.6 | |
|
previous
or next observation for the same group /

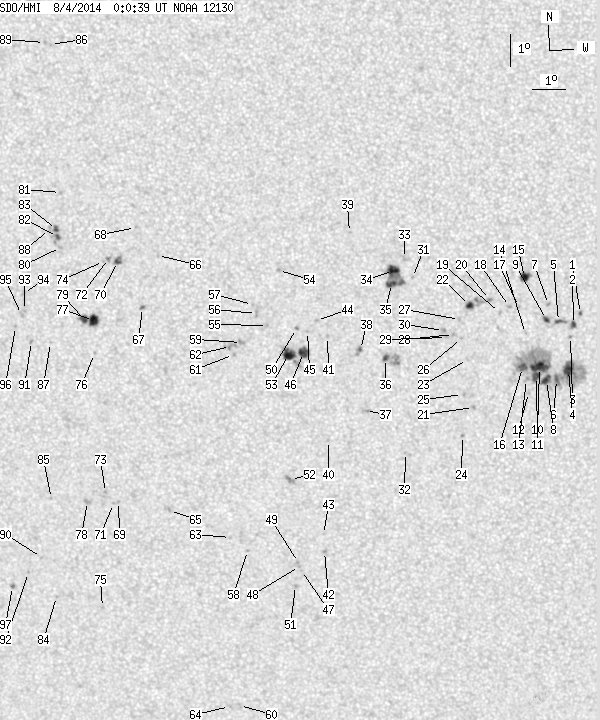

back to the solar disc SDO HMI 2014-08-04 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 1.63 | 0.32 | 0.83 | -6.14 | 234.93 | 4.07 | 198.58 | 0.2223 | 928.4 | 773.5 | |
| 2.17 | 4.61 | 1.10 | 2.35 | -6.48 | 234.72 | 3.85 | 197.21 | 0.2267 | 1035.7 | 781.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -6.85 | 234.63 | 3.76 | 196.36 | 0.2323 | 855.0 | 692.9 | |
| 8.14 | 55.80 | 4.16 | 28.56 | -7.91 | 234.58 | 3.71 | 194.95 | 0.2495 | 1188.4 | 459.7 | |
| 1.63 | 5.70 | 0.83 | 2.90 | -6.38 | 234.26 | 3.39 | 195.37 | 0.2229 | 994.6 | 729.0 | |
| 2.17 | -4.00 | 1.11 | -4.00 | -8.19 | 234.21 | 3.34 | 193.27 | 0.2526 | 1065.6 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -5.85 | 233.95 | 3.08 | 194.63 | 0.2128 | 949.0 | 637.4 | |
| 5.16 | 89.44 | 2.64 | 45.67 | -8.22 | 233.90 | 3.04 | 192.06 | 0.2519 | 1051.2 | 593.1 | |
| 1.90 | 3.26 | 0.96 | 1.65 | -6.31 | 233.89 | 3.02 | 193.84 | 0.2202 | 993.6 | 763.4 | |
| 12.21 | -8.00 | 6.24 | -8.00 | -7.81 | 233.68 | 2.82 | 191.55 | 0.2444 | 1274.1 | 999999 | |
| 4.79 | -8.00 | 2.45 | -8.00 | -8.09 | 233.59 | 2.73 | 190.96 | 0.2488 | 981.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.59 | 233.35 | 2.48 | 189.66 | 0.2564 | 687.0 | 574.9 | |
| 0.00 | 2.44 | 0.00 | 1.25 | -8.19 | 233.29 | 2.42 | 189.69 | 0.2494 | 816.0 | 720.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -6.75 | 233.25 | 2.38 | 190.62 | 0.2252 | 745.0 | 567.5 | |
| 4.97 | 7.69 | 2.51 | 3.88 | -5.01 | 233.21 | 2.35 | 192.08 | 0.1958 | -987.6 | -752.1 | |
| 4.43 | -8.00 | 2.26 | -8.00 | -7.81 | 233.16 | 2.30 | 189.45 | 0.2427 | 1148.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -5.91 | 233.03 | 2.17 | 190.34 | 0.2103 | 718.0 | 518.6 | |
| 0.00 | 1.72 | 0.00 | 0.87 | -5.90 | 232.76 | 1.89 | 189.05 | 0.2095 | 811.0 | 660.5 | |
| 0.00 | 1.99 | 0.00 | 1.01 | -6.09 | 232.45 | 1.59 | 187.49 | 0.2119 | 762.0 | 602.3 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -5.68 | 232.14 | 1.28 | 186.27 | 0.2044 | -1015.0 | -825.0 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -9.06 | 231.66 | 0.79 | 183.01 | 0.2611 | 986.0 | 803.1 | |
| 3.44 | 12.57 | 1.74 | 6.36 | -5.87 | 231.53 | 0.67 | 183.23 | 0.2067 | -1009.0 | -755.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.55 | 231.47 | 0.61 | 182.57 | 0.2354 | 791.0 | 600.5 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -9.94 | 231.32 | 0.45 | 181.63 | 0.2757 | 949.0 | 743.1 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -8.65 | 231.32 | 0.45 | 181.77 | 0.2539 | 596.0 | 684.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -6.90 | 231.29 | 0.42 | 181.88 | 0.2240 | -666.0 | -409.5 | |
| 0.00 | 1.72 | 0.00 | 0.87 | -6.30 | 231.23 | 0.36 | 181.69 | 0.2139 | 865.0 | 597.3 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -6.77 | 231.04 | 0.18 | 180.80 | 0.2218 | 845.0 | 726.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -6.86 | 230.83 | -0.04 | 179.84 | 0.2234 | 865.0 | 661.5 | |
| 0.00 | 2.53 | 0.00 | 1.29 | -6.64 | 230.74 | -0.13 | 179.42 | 0.2197 | 1167.0 | 910.2 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -5.00 | 229.79 | -1.07 | 174.41 | 0.1923 | 876.0 | 596.1 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -10.48 | 229.56 | -1.31 | 175.47 | 0.2855 | 666.0 | 576.5 | |
| 0.00 | 4.34 | 0.00 | 2.19 | -4.41 | 229.55 | -1.31 | 172.78 | 0.1827 | -713.0 | -579.6 | |
| 7.14 | 29.57 | 3.60 | 14.93 | -4.78 | 229.21 | -1.65 | 171.26 | 0.1898 | -995.9 | 465.9 | |
| 4.43 | -34.00 | 2.24 | -34.00 | -5.19 | 229.15 | -1.71 | 171.26 | 0.1968 | 1241.4 | 999999 | |
| 1.90 | 13.75 | 0.97 | 7.01 | -7.52 | 228.96 | -1.91 | 171.95 | 0.2369 | 1051.6 | 852.0 | |
| 0.00 | 3.98 | 0.00 | 2.04 | -9.15 | 228.33 | -2.53 | 170.51 | 0.2659 | 956.0 | 709.2 | |
| 0.63 | 4.52 | 0.32 | 2.30 | -7.24 | 228.19 | -2.67 | 168.56 | 0.2344 | 1103.6 | 827.8 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -3.61 | 227.88 | -2.99 | 162.65 | 0.1753 | -839.0 | -628.9 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -10.11 | 227.18 | -3.69 | 167.12 | 0.2854 | -740.0 | -422.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -6.84 | 227.18 | -3.68 | 163.96 | 0.2318 | 848.0 | 643.9 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -13.66 | 227.00 | -3.87 | 168.96 | 0.3437 | -957.0 | -804.8 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -13.11 | 226.98 | -3.89 | 168.58 | 0.3349 | -881.0 | -689.4 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -6.34 | 226.85 | -4.02 | 161.93 | 0.2254 | 1125.0 | 783.0 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -6.69 | 226.57 | -4.30 | 161.25 | 0.2324 | 839.0 | 717.9 | |
| 7.05 | 28.22 | 3.60 | 14.42 | -7.34 | 226.44 | -4.43 | 161.62 | 0.2437 | 1038.2 | 512.1 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -14.28 | 226.26 | -4.60 | 167.34 | 0.3561 | -796.0 | -663.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -14.15 | 226.20 | -4.66 | 167.09 | 0.3543 | -857.0 | -711.5 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -14.02 | 226.18 | -4.69 | 166.93 | 0.3523 | -912.0 | -777.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -6.60 | 226.23 | -4.63 | 159.75 | 0.2329 | 992.0 | 810.9 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -14.77 | 226.06 | -4.80 | 167.12 | 0.3647 | -822.0 | -705.0 | |
| 0.00 | 4.97 | 0.00 | 2.59 | -11.35 | 225.98 | -4.89 | 164.33 | 0.3105 | 1039.0 | 855.2 | |
| 9.59 | -46.00 | 4.90 | -46.00 | -7.41 | 225.98 | -4.89 | 159.93 | 0.2474 | 1076.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -4.80 | 225.70 | -5.17 | 154.33 | 0.2081 | 904.0 | 751.9 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -6.51 | 225.34 | -5.52 | 156.11 | 0.2372 | 775.0 | 675.1 | |
| 0.00 | 2.89 | 0.00 | 1.47 | -6.14 | 225.01 | -5.86 | 154.17 | 0.2338 | 866.0 | 679.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.86 | 224.89 | -5.98 | 153.17 | 0.2305 | 786.0 | 574.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -13.64 | 224.58 | -6.29 | 162.40 | 0.3533 | -753.0 | -597.1 | |
| 0.00 | 3.62 | 0.00 | 1.85 | -7.05 | 224.54 | -6.33 | 154.06 | 0.2512 | 965.0 | 829.8 | |
| 0.00 | 2.44 | 0.00 | 1.34 | -18.74 | 224.15 | -6.72 | 165.15 | 0.4339 | -773.0 | -645.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.43 | 224.28 | -6.58 | 153.82 | 0.2588 | 839.0 | 759.9 | |
| 0.00 | 6.06 | 0.00 | 3.10 | -7.18 | 224.19 | -6.67 | 153.08 | 0.2557 | 810.0 | 746.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -13.23 | 224.06 | -6.81 | 160.64 | 0.3496 | -628.0 | -463.7 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -18.78 | 223.82 | -7.04 | 164.49 | 0.4358 | -591.0 | -451.8 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -12.39 | 222.16 | -8.70 | 154.80 | 0.3486 | -920.0 | -781.5 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -4.38 | 221.98 | -8.88 | 139.25 | 0.2369 | -779.0 | -572.8 | |
| 0.63 | 2.17 | 0.33 | 1.11 | -6.00 | 221.49 | -9.37 | 141.87 | 0.2634 | 929.9 | 722.4 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -3.53 | 221.32 | -9.55 | 134.69 | 0.2340 | -902.0 | -627.7 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -12.13 | 220.57 | -10.30 | 150.52 | 0.3568 | -914.0 | -804.4 | |
| 1.99 | 5.61 | 1.02 | 2.87 | -4.59 | 220.74 | -10.12 | 136.07 | 0.2536 | -1097.2 | -911.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -12.19 | 220.40 | -10.46 | 150.23 | 0.3590 | -814.0 | -686.9 | |
| 0.00 | 2.98 | 0.00 | 1.53 | -4.50 | 220.47 | -10.40 | 135.05 | 0.2558 | -1094.0 | -824.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -11.85 | 220.17 | -10.70 | 149.17 | 0.3561 | -900.0 | -743.6 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -4.59 | 220.31 | -10.56 | 134.88 | 0.2588 | -663.0 | -544.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -15.57 | 219.89 | -10.98 | 153.36 | 0.4107 | -180.0 | -251.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -7.46 | 219.97 | -10.90 | 140.90 | 0.2985 | 725.0 | 545.9 | |
| 8.05 | 17.18 | 4.16 | 8.88 | -6.43 | 219.96 | -10.90 | 138.59 | 0.2854 | 1068.7 | 693.1 | |
| 0.00 | 4.07 | 0.00 | 2.16 | -12.15 | 219.58 | -11.28 | 148.26 | 0.3652 | -830.0 | -694.4 | |
| 3.89 | -77.00 | 2.01 | -77.00 | -6.41 | 219.68 | -11.18 | 137.81 | 0.2882 | 904.8 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -4.19 | 218.98 | -11.89 | 130.33 | 0.2706 | -908.0 | -757.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -2.49 | 219.00 | -11.86 | 125.26 | 0.2526 | -852.0 | -722.4 | |
| 1.36 | 9.77 | 0.70 | 5.02 | -3.85 | 218.89 | -11.97 | 129.15 | 0.2681 | -1117.9 | -729.5 | |
| 1.90 | -82.00 | 0.98 | -82.00 | -3.63 | 218.86 | -12.00 | 128.46 | 0.2662 | -1153.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -15.24 | 218.43 | -12.44 | 149.98 | 0.4171 | -666.0 | -634.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -12.07 | 218.44 | -12.42 | 145.63 | 0.3743 | -757.0 | -607.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 2.03 | 218.70 | -12.16 | 107.56 | 0.2219 | -655.0 | -585.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -7.14 | 218.60 | -12.27 | 136.84 | 0.3095 | -708.0 | -502.5 | |
| 0.00 | 2.44 | 0.00 | 1.26 | -3.64 | 218.65 | -12.22 | 127.96 | 0.2691 | -509.0 | -436.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 2.09 | 218.51 | -12.35 | 107.06 | 0.2246 | -763.0 | -652.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -13.98 | 218.02 | -12.85 | 147.52 | 0.4035 | -657.0 | -500.1 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -7.13 | 218.00 | -12.86 | 135.44 | 0.3161 | -911.0 | -733.7 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -14.48 | 217.57 | -13.30 | 147.31 | 0.4140 | -873.0 | -722.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -6.16 | 217.81 | -13.05 | 132.78 | 0.3073 | -893.0 | -745.8 | |
| 0.00 | 2.89 | 0.00 | 1.50 | -5.64 | 217.79 | -13.07 | 131.45 | 0.3016 | -908.0 | -697.0 | |
| 0.00 | 2.53 | 0.00 | 1.32 | -6.29 | 217.71 | -13.15 | 132.87 | 0.3099 | -880.0 | -657.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -6.67 | 217.51 | -13.35 | 133.32 | 0.3166 | -923.0 | -629.2 | |
| 0.63 | 1.90 | 0.35 | 1.04 | -14.95 | 217.02 | -13.84 | 146.88 | 0.4248 | -910.0 | -776.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
