SDO HMI 2014-08-04 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.12 | 71.47 | 6.17 | 39.47 | -18.93 | 238.46 | 7.59 | 196.43 | 0.4432 | -87.1 | -183.0 | |
|
previous
or next observation for the same group /

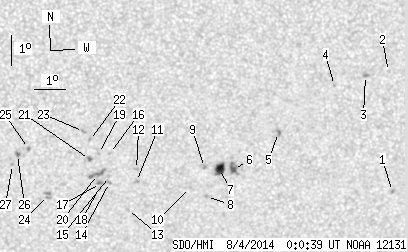

back to the solar disc SDO HMI 2014-08-04 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.83 | -19.99 | 246.04 | 15.17 | 209.51 | 0.5014 | 835.0 | 679.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -15.99 | 245.56 | 14.70 | 213.33 | 0.4457 | 329.0 | 278.6 | |
| 0.00 | 2.35 | 0.00 | 1.30 | -16.10 | 244.82 | 13.95 | 211.85 | 0.4409 | 1023.0 | 839.6 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -16.40 | 243.83 | 12.96 | 209.64 | 0.4370 | 834.0 | 655.2 | |
| 0.00 | 2.98 | 0.00 | 1.65 | -17.91 | 242.11 | 11.24 | 204.70 | 0.4456 | 836.0 | 665.9 | |
| 2.62 | 8.68 | 1.46 | 4.82 | -19.12 | 240.71 | 9.85 | 200.91 | 0.4545 | 865.7 | 708.6 | |
| 7.42 | 10.94 | 4.11 | 6.07 | -19.07 | 240.25 | 9.39 | 200.05 | 0.4514 | 1008.5 | 692.4 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -20.01 | 239.88 | 9.01 | 198.61 | 0.4631 | 768.0 | 563.7 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -19.03 | 239.76 | 8.89 | 199.12 | 0.4482 | 985.0 | 799.4 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -19.70 | 239.34 | 8.47 | 197.79 | 0.4559 | 767.0 | 664.6 | |
| 0.00 | 1.99 | 0.00 | 1.10 | -19.47 | 237.57 | 6.70 | 194.39 | 0.4448 | -755.0 | -557.1 | |
| 0.00 | 2.08 | 0.00 | 1.15 | -19.06 | 237.55 | 6.69 | 194.59 | 0.4386 | -665.0 | -531.1 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -20.41 | 237.32 | 6.45 | 193.34 | 0.4581 | -595.0 | -463.1 | |
| 0.00 | 2.08 | 0.00 | 1.15 | -19.49 | 236.69 | 5.83 | 192.56 | 0.4420 | -660.0 | -600.7 | |
| 0.00 | 2.08 | 0.00 | 1.15 | -19.29 | 236.69 | 5.82 | 192.65 | 0.4388 | -620.0 | -504.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.52 | 236.66 | 5.79 | 193.02 | 0.4269 | -762.0 | -560.2 | |
| 0.00 | 2.89 | 0.00 | 1.60 | -19.52 | 236.40 | 5.54 | 191.94 | 0.4415 | -797.0 | -720.3 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -19.72 | 236.35 | 5.48 | 191.72 | 0.4444 | -612.0 | -462.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -18.51 | 236.31 | 5.44 | 192.25 | 0.4256 | -953.0 | -686.1 | |
| 0.00 | 8.05 | 0.00 | 4.43 | -19.21 | 236.30 | 5.43 | 191.86 | 0.4364 | -1218.0 | -887.8 | |
| 0.54 | 1.90 | 0.30 | 1.04 | -18.71 | 236.02 | 5.16 | 191.53 | 0.4277 | -1032.0 | -836.2 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.07 | 236.00 | 5.14 | 191.81 | 0.4178 | -827.0 | -710.1 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -17.77 | 235.80 | 4.94 | 191.51 | 0.4125 | -908.0 | -748.7 | |
| 0.00 | 5.25 | 0.00 | 2.90 | -19.91 | 234.73 | 3.86 | 188.26 | 0.4429 | -779.0 | -690.3 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.32 | 234.05 | 3.19 | 187.30 | 0.4166 | -915.0 | -762.6 | |
| 0.54 | 2.08 | 0.30 | 1.13 | -18.52 | 233.70 | 2.84 | 186.45 | 0.4191 | -1017.3 | -847.2 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -18.85 | 233.55 | 2.68 | 186.01 | 0.4241 | -772.0 | -673.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
