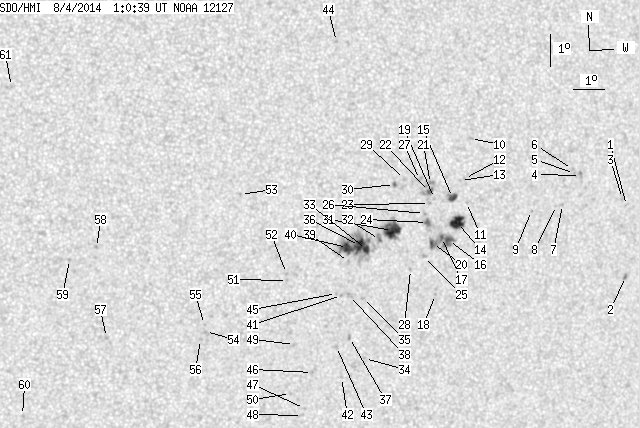

SDO HMI 2014-08-04 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.56 | 226.66 | 37.16 | 123.01 | -7.26 | 250.24 | 19.92 | 236.24 | 0.4083 | 509.4 | 424.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.04 | -6.50 | 257.95 | 27.63 | 246.07 | 0.5061 | 613.0 | 380.0 | |
| 0.00 | 2.35 | 0.00 | 1.36 | -8.73 | 258.07 | 27.75 | 242.25 | 0.5221 | 830.0 | 682.6 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -6.28 | 257.80 | 27.48 | 246.36 | 0.5027 | 761.0 | 550.1 | |
| 0.00 | 2.53 | 0.00 | 1.43 | -5.49 | 256.32 | 26.00 | 246.64 | 0.4773 | 708.0 | 643.5 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -5.42 | 256.11 | 25.79 | 246.60 | 0.4739 | 743.0 | 628.9 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -5.29 | 256.04 | 25.72 | 246.79 | 0.4721 | 641.0 | 532.6 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -6.36 | 255.75 | 25.43 | 244.46 | 0.4749 | 715.0 | 622.5 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -6.38 | 255.54 | 25.23 | 244.24 | 0.4723 | 631.0 | 426.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -6.50 | 254.71 | 24.39 | 243.22 | 0.4615 | 496.0 | 499.3 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -4.18 | 252.58 | 22.27 | 245.94 | 0.4156 | 776.0 | 652.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -6.16 | 252.52 | 22.21 | 241.65 | 0.4288 | -144.0 | -192.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -5.41 | 252.43 | 22.11 | 243.11 | 0.4219 | 733.0 | 564.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -5.47 | 252.30 | 21.98 | 242.85 | 0.4205 | 841.0 | 709.5 | |
| 12.39 | 16.37 | 6.79 | 8.97 | -6.77 | 252.25 | 21.94 | 240.10 | 0.4298 | 933.0 | 587.9 | |
| 3.80 | 6.69 | 2.07 | 3.65 | -5.98 | 252.05 | 21.74 | 241.49 | 0.4209 | 877.1 | 760.2 | |
| 4.25 | 25.15 | 2.33 | 13.77 | -7.32 | 251.98 | 21.67 | 238.67 | 0.4305 | 808.5 | 338.8 | |
| 0.99 | -16.00 | 0.54 | -16.00 | -7.22 | 251.75 | 21.43 | 238.59 | 0.4265 | 867.3 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -9.00 | 251.65 | 21.33 | 235.00 | 0.4404 | -851.0 | -724.0 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -5.99 | 251.46 | 21.15 | 240.79 | 0.4128 | 694.0 | 561.5 | |
| 2.44 | -16.00 | 1.33 | -16.00 | -7.39 | 251.46 | 21.14 | 237.89 | 0.4241 | -606.4 | 999999 | |
| 0.00 | 3.44 | 0.00 | 1.86 | -5.52 | 251.31 | 21.00 | 241.63 | 0.4071 | 854.0 | 771.3 | |
| 1.45 | 6.42 | 0.78 | 3.48 | -5.77 | 251.29 | 20.97 | 241.07 | 0.4086 | 973.4 | 813.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -6.14 | 251.30 | 20.99 | 240.29 | 0.4118 | 757.0 | 634.6 | |
| 1.45 | 3.89 | 0.79 | 2.12 | -6.73 | 251.26 | 20.95 | 239.00 | 0.4160 | 562.0 | 239.0 | |
| 0.00 | 2.35 | 0.00 | 1.29 | -7.79 | 251.22 | 20.90 | 236.79 | 0.4242 | 763.0 | 568.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -6.44 | 251.15 | 20.84 | 239.46 | 0.4121 | 757.0 | 624.5 | |
| 0.00 | 2.80 | 0.00 | 1.52 | -5.38 | 250.95 | 20.63 | 241.50 | 0.4009 | 840.0 | 729.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -8.18 | 250.78 | 20.46 | 235.45 | 0.4219 | 796.0 | 602.6 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -5.36 | 250.46 | 20.14 | 240.94 | 0.3939 | 818.0 | 611.4 | |
| 0.45 | 1.54 | 0.24 | 0.83 | -5.50 | 250.14 | 19.82 | 240.22 | 0.3905 | 976.0 | 815.5 | |
| 17.28 | 27.13 | 9.34 | 14.67 | -6.93 | 250.13 | 19.81 | 237.11 | 0.4024 | 993.8 | 637.7 | |
| 0.36 | 5.16 | 0.20 | 2.78 | -7.20 | 249.72 | 19.40 | 236.00 | 0.3992 | 986.8 | 822.8 | |
| 4.25 | 66.21 | 2.29 | 35.62 | -7.50 | 249.31 | 18.99 | 234.80 | 0.3965 | 962.2 | 605.8 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -10.94 | 249.43 | 19.12 | 228.40 | 0.4318 | -757.0 | -658.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -9.03 | 249.25 | 18.94 | 231.64 | 0.4104 | -562.0 | -394.6 | |
| 10.31 | -33.00 | 5.55 | -33.00 | -7.36 | 249.07 | 18.76 | 234.74 | 0.3923 | 1186.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -10.25 | 248.90 | 18.58 | 228.82 | 0.4184 | -733.0 | -624.9 | |
| 0.00 | 3.35 | 0.00 | 1.81 | -8.92 | 248.82 | 18.51 | 231.21 | 0.4040 | 785.0 | 698.7 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -7.85 | 248.74 | 18.42 | 233.23 | 0.3925 | 789.0 | 666.1 | |
| 9.14 | -33.00 | 4.91 | -33.00 | -7.41 | 248.69 | 18.37 | 234.07 | 0.3877 | 1162.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -8.91 | 248.56 | 18.25 | 230.83 | 0.4007 | 738.0 | 546.8 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -11.51 | 248.72 | 18.40 | 226.30 | 0.4296 | -710.0 | -611.5 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -10.52 | 248.49 | 18.17 | 227.69 | 0.4164 | -59.0 | -174.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -1.03 | 248.19 | 17.87 | 249.10 | 0.3299 | 863.0 | 741.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -8.85 | 248.40 | 18.08 | 230.71 | 0.3980 | 545.0 | 439.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -11.32 | 247.76 | 17.44 | 225.10 | 0.4167 | -825.0 | -586.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -12.47 | 247.57 | 17.26 | 222.87 | 0.4275 | -603.0 | -494.5 | |
| 0.00 | 2.08 | 0.00 | 1.14 | -12.69 | 247.52 | 17.21 | 222.43 | 0.4295 | -538.0 | -426.3 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -10.41 | 247.12 | 16.81 | 225.65 | 0.3994 | -797.0 | -570.3 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -11.97 | 247.08 | 16.77 | 222.87 | 0.4166 | -758.0 | -630.4 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -8.38 | 246.80 | 16.48 | 229.00 | 0.3735 | 805.0 | 616.8 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -8.16 | 246.76 | 16.44 | 229.38 | 0.3707 | 743.0 | 679.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -5.65 | 245.21 | 14.89 | 232.21 | 0.3251 | 675.0 | 533.1 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -9.91 | 244.24 | 13.93 | 221.18 | 0.3617 | -707.0 | -687.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -9.69 | 244.20 | 13.89 | 221.51 | 0.3585 | -796.0 | -695.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -10.16 | 244.10 | 13.78 | 220.42 | 0.3631 | -843.0 | -705.4 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -10.03 | 241.12 | 10.80 | 213.95 | 0.3319 | -601.0 | -516.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -7.19 | 240.73 | 10.41 | 218.38 | 0.2900 | -871.0 | -653.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -7.55 | 239.89 | 9.58 | 215.33 | 0.2865 | -924.0 | -648.0 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -12.46 | 238.55 | 8.24 | 203.92 | 0.3466 | -558.0 | -537.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -2.16 | 238.04 | 7.72 | 223.64 | 0.1955 | -741.0 | -598.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
