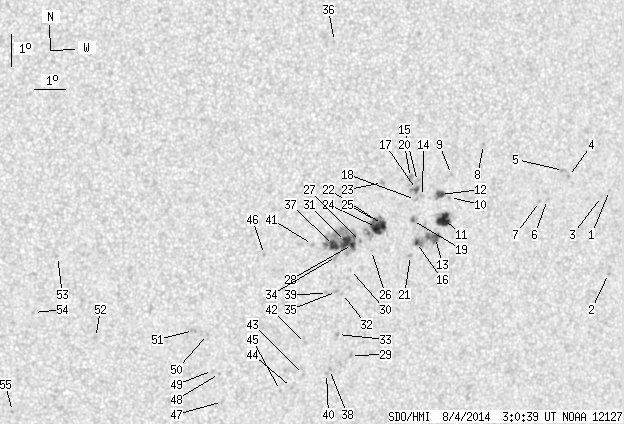

SDO HMI 2014-08-04 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.16 | 217.81 | 32.34 | 118.97 | -7.39 | 250.12 | 20.90 | 237.27 | 0.4227 | 486.1 | 417.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.58 | -6.14 | 257.91 | 28.69 | 247.51 | 0.5186 | 702.0 | 543.6 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -8.74 | 258.06 | 28.84 | 243.12 | 0.5366 | 753.0 | 727.5 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -6.32 | 257.64 | 28.42 | 247.00 | 0.5159 | 710.0 | 575.0 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -5.63 | 256.46 | 27.24 | 247.35 | 0.4956 | 741.0 | 639.8 | |
| 0.00 | 3.08 | 0.00 | 1.75 | -5.44 | 256.28 | 27.06 | 247.57 | 0.4919 | 694.0 | 656.2 | |
| 0.00 | 2.08 | 0.00 | 1.18 | -6.31 | 255.77 | 26.56 | 245.52 | 0.4902 | 636.0 | 524.3 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -6.36 | 255.50 | 26.28 | 245.20 | 0.4868 | 609.0 | 523.1 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -4.50 | 253.52 | 24.31 | 247.14 | 0.4472 | 770.0 | 664.8 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -5.39 | 252.49 | 23.27 | 244.34 | 0.4382 | 770.0 | 650.7 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -6.10 | 252.45 | 23.24 | 242.85 | 0.4427 | -596.0 | -422.3 | |
| 12.30 | 19.27 | 6.80 | 10.65 | -6.78 | 252.28 | 23.07 | 241.32 | 0.4453 | 936.4 | 479.9 | |
| 3.62 | 6.51 | 1.99 | 3.59 | -5.99 | 252.15 | 22.93 | 242.75 | 0.4377 | 856.7 | 681.5 | |
| 4.43 | 20.90 | 2.45 | 11.54 | -7.33 | 252.05 | 22.83 | 239.98 | 0.4463 | 790.4 | 278.0 | |
| 0.00 | 2.26 | 0.00 | 1.24 | -6.03 | 251.55 | 22.34 | 242.04 | 0.4296 | 746.0 | 614.9 | |
| 0.00 | 3.26 | 0.00 | 1.78 | -5.56 | 251.37 | 22.15 | 242.83 | 0.4236 | 742.0 | 660.6 | |
| 1.54 | -13.00 | 0.85 | -13.00 | -7.46 | 251.42 | 22.20 | 239.01 | 0.4389 | -769.0 | 999999 | |
| 1.45 | 4.89 | 0.79 | 2.67 | -5.80 | 251.34 | 22.13 | 242.28 | 0.4251 | 978.4 | 819.7 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -6.11 | 251.32 | 22.11 | 241.62 | 0.4271 | 477.0 | 578.3 | |
| 0.81 | 4.52 | 0.45 | 2.48 | -6.76 | 251.25 | 22.04 | 240.21 | 0.4311 | 771.1 | 303.1 | |
| 0.00 | 3.35 | 0.00 | 1.83 | -5.42 | 251.13 | 21.91 | 242.86 | 0.4193 | 941.0 | 801.4 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -7.86 | 251.24 | 22.03 | 238.03 | 0.4398 | 815.0 | 573.9 | |
| 4.70 | 31.12 | 2.56 | 16.94 | -6.85 | 250.27 | 21.05 | 238.87 | 0.4184 | 879.3 | 716.2 | |
| 0.00 | 2.26 | 0.00 | 1.23 | -5.54 | 250.22 | 21.00 | 241.57 | 0.4073 | 1048.0 | 836.7 | |
| 9.50 | -22.00 | 5.17 | -22.00 | -6.93 | 250.08 | 20.86 | 238.45 | 0.4165 | 1033.5 | 999999 | |
| 2.44 | -22.00 | 1.33 | -22.00 | -6.71 | 250.03 | 20.82 | 238.85 | 0.4141 | 987.2 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -7.65 | 249.95 | 20.73 | 236.84 | 0.4208 | 559.0 | 518.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -7.35 | 249.57 | 20.35 | 236.95 | 0.4133 | 830.0 | 733.5 | |
| 3.26 | 62.97 | 1.77 | 34.08 | -7.44 | 249.31 | 20.10 | 236.44 | 0.4106 | 966.1 | 653.4 | |
| 0.00 | 1.99 | 0.00 | 1.10 | -10.94 | 249.45 | 20.24 | 230.00 | 0.4452 | -809.0 | -599.3 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -8.22 | 249.29 | 20.07 | 234.83 | 0.4172 | 589.0 | 410.3 | |
| 8.78 | -28.00 | 4.76 | -28.00 | -7.33 | 249.08 | 19.86 | 236.34 | 0.4066 | 1188.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -8.96 | 249.06 | 19.85 | 233.07 | 0.4213 | 730.0 | 503.9 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -10.25 | 248.98 | 19.76 | 230.55 | 0.4327 | -750.0 | -546.7 | |
| 0.00 | 3.44 | 0.00 | 1.86 | -7.79 | 248.81 | 19.59 | 235.03 | 0.4071 | 562.0 | 557.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -8.89 | 248.86 | 19.65 | 232.93 | 0.4181 | 889.0 | 788.1 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -1.13 | 248.57 | 19.35 | 250.36 | 0.3532 | 724.0 | 631.2 | |
| 6.33 | -28.00 | 3.42 | -28.00 | -7.44 | 248.69 | 19.48 | 235.58 | 0.4025 | 1157.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -11.36 | 248.79 | 19.57 | 228.32 | 0.4416 | -765.0 | -717.6 | |
| 0.00 | 3.17 | 0.00 | 1.72 | -8.94 | 248.57 | 19.36 | 232.41 | 0.4149 | 579.0 | 534.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -11.48 | 248.70 | 19.48 | 227.98 | 0.4418 | -737.0 | -615.4 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -7.39 | 248.01 | 18.79 | 234.72 | 0.3930 | 783.0 | 643.7 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -10.50 | 247.94 | 18.73 | 228.58 | 0.4228 | -608.0 | -536.0 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -11.49 | 247.94 | 18.73 | 226.84 | 0.4331 | -723.0 | -544.7 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -11.89 | 247.58 | 18.36 | 225.59 | 0.4333 | -572.0 | -556.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -11.97 | 247.22 | 18.01 | 224.90 | 0.4302 | -745.0 | -560.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -7.65 | 246.47 | 17.25 | 231.81 | 0.3756 | 852.0 | 667.5 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -12.26 | 245.35 | 16.14 | 221.29 | 0.4133 | -668.0 | -503.5 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -11.36 | 245.20 | 15.99 | 222.52 | 0.4012 | -733.0 | -617.1 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -11.26 | 244.97 | 15.76 | 222.28 | 0.3975 | -278.0 | -219.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -10.11 | 244.75 | 15.53 | 223.93 | 0.3817 | -615.0 | -504.8 | |
| 0.00 | 2.17 | 0.00 | 1.16 | -9.97 | 244.30 | 15.08 | 223.34 | 0.3750 | -839.0 | -747.0 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -10.11 | 241.19 | 11.97 | 216.57 | 0.3442 | -795.0 | -621.7 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -7.53 | 239.92 | 10.70 | 218.41 | 0.2976 | -880.0 | -637.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -9.28 | 239.21 | 9.99 | 213.19 | 0.3143 | -767.0 | -557.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -12.41 | 238.65 | 9.43 | 206.98 | 0.3544 | -742.0 | -642.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
