SDO HMI 2014-08-04 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.71 | 222.75 | 32.75 | 122.13 | -7.29 | 250.22 | 21.56 | 238.32 | 0.4303 | 502.2 | 401.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

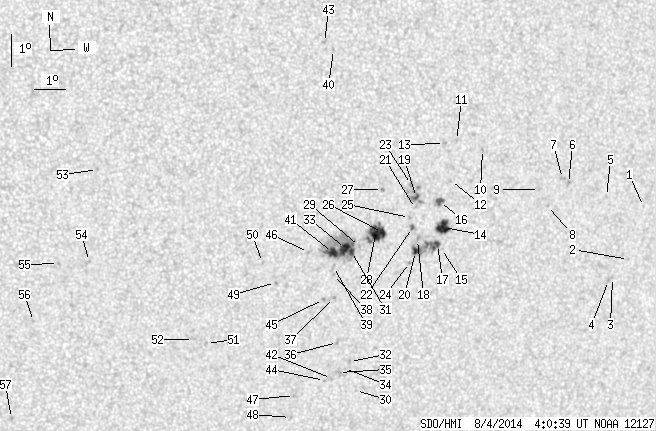

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.16 | -6.49 | 259.22 | 30.55 | 248.21 | 0.5460 | 508.0 | 492.0 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -8.12 | 258.80 | 30.14 | 245.16 | 0.5498 | 553.0 | 446.5 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -8.66 | 258.28 | 29.61 | 243.87 | 0.5462 | 654.0 | 536.1 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -8.75 | 258.15 | 29.48 | 243.62 | 0.5450 | 916.0 | 771.4 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -6.11 | 257.88 | 29.22 | 247.95 | 0.5257 | 603.0 | 445.1 | |
| 0.00 | 1.90 | 0.00 | 1.09 | -5.63 | 256.53 | 27.87 | 247.82 | 0.5043 | 767.0 | 607.7 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -5.47 | 256.32 | 27.65 | 247.96 | 0.5003 | 711.0 | 727.5 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -6.28 | 255.84 | 27.17 | 246.09 | 0.4986 | 598.0 | 532.3 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -5.77 | 255.54 | 26.87 | 246.79 | 0.4913 | 756.0 | 649.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -4.44 | 253.55 | 24.88 | 247.76 | 0.4550 | 850.0 | 648.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -4.12 | 252.66 | 24.00 | 247.66 | 0.4404 | 761.0 | 598.7 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -5.35 | 252.51 | 23.84 | 244.97 | 0.4460 | 729.0 | 648.6 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -4.19 | 252.27 | 23.60 | 247.14 | 0.4351 | 826.0 | 661.2 | |
| 10.95 | 14.93 | 6.08 | 8.29 | -6.80 | 252.34 | 23.67 | 241.90 | 0.4538 | 982.4 | 658.0 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -7.46 | 252.31 | 23.64 | 240.60 | 0.4583 | 298.0 | 345.4 | |
| 2.90 | 5.97 | 1.60 | 3.30 | -5.99 | 252.17 | 23.50 | 243.34 | 0.4456 | 848.0 | 667.9 | |
| 2.26 | 24.52 | 1.26 | 13.59 | -7.33 | 252.17 | 23.50 | 240.70 | 0.4553 | 753.6 | 287.2 | |
| 0.00 | 2.90 | 0.00 | 1.60 | -7.14 | 251.49 | 22.82 | 240.33 | 0.4448 | -171.0 | -223.0 | |
| 1.81 | 13.48 | 0.99 | 7.40 | -5.83 | 251.39 | 22.73 | 242.87 | 0.4337 | 943.1 | 746.5 | |
| 2.71 | -17.00 | 1.50 | -17.00 | -7.51 | 251.44 | 22.77 | 239.55 | 0.4470 | -826.3 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -6.17 | 251.38 | 22.71 | 242.15 | 0.4359 | 486.0 | 446.0 | |
| 1.09 | 3.26 | 0.60 | 1.79 | -6.76 | 251.30 | 22.64 | 240.88 | 0.4393 | 690.4 | 354.6 | |
| 0.00 | 2.44 | 0.00 | 1.34 | -5.42 | 251.21 | 22.54 | 243.53 | 0.4282 | 886.0 | 781.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -7.85 | 251.26 | 22.59 | 238.69 | 0.4473 | 685.0 | 553.3 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -6.44 | 251.19 | 22.52 | 241.40 | 0.4353 | 713.0 | 570.7 | |
| 4.70 | 28.32 | 2.58 | 15.48 | -6.87 | 250.32 | 21.65 | 239.53 | 0.4267 | 870.0 | 729.0 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -5.53 | 250.26 | 21.59 | 242.26 | 0.4156 | 1046.0 | 878.2 | |
| 11.76 | -26.00 | 6.43 | -26.00 | -6.89 | 250.09 | 21.42 | 239.21 | 0.4238 | 1048.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -7.28 | 249.58 | 20.91 | 237.80 | 0.4201 | 853.0 | 686.8 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -11.83 | 249.74 | 21.07 | 229.61 | 0.4639 | -536.0 | -438.0 | |
| 3.08 | 69.58 | 1.68 | 37.79 | -7.43 | 249.32 | 20.66 | 237.18 | 0.4179 | 950.7 | 588.9 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -10.90 | 249.47 | 20.80 | 230.84 | 0.4515 | -908.0 | -686.9 | |
| 10.31 | -31.00 | 5.61 | -31.00 | -7.32 | 249.12 | 20.45 | 237.13 | 0.4144 | 1144.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -11.11 | 249.32 | 20.65 | 230.26 | 0.4518 | -713.0 | -577.8 | |
| 0.00 | 4.25 | 0.00 | 2.36 | -11.23 | 249.13 | 20.46 | 229.79 | 0.4508 | -887.0 | -702.5 | |
| 0.00 | 2.17 | 0.00 | 1.20 | -10.28 | 249.03 | 20.36 | 231.34 | 0.4402 | -662.0 | -538.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -8.85 | 248.84 | 20.17 | 233.73 | 0.4244 | 808.0 | 687.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -8.12 | 248.77 | 20.10 | 235.05 | 0.4168 | 608.0 | 442.2 | |
| 0.00 | 2.35 | 0.00 | 1.28 | -7.87 | 248.76 | 20.09 | 235.54 | 0.4144 | 725.0 | 528.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -1.15 | 248.57 | 19.90 | 250.83 | 0.3618 | 792.0 | 622.1 | |
| 8.14 | -31.00 | 4.42 | -31.00 | -7.43 | 248.70 | 20.03 | 236.36 | 0.4098 | 1126.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -11.42 | 248.91 | 20.24 | 229.17 | 0.4500 | -669.0 | -587.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -0.93 | 248.28 | 19.61 | 251.15 | 0.3561 | 892.0 | 708.9 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -11.47 | 248.68 | 20.01 | 228.76 | 0.4479 | -687.0 | -559.9 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -8.90 | 248.48 | 19.81 | 233.15 | 0.4203 | 773.0 | 607.3 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -7.40 | 247.92 | 19.25 | 235.34 | 0.3992 | 824.0 | 640.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -11.91 | 247.72 | 19.05 | 226.61 | 0.4414 | -735.0 | -602.5 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -12.61 | 247.64 | 18.98 | 225.33 | 0.4480 | -544.0 | -423.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -8.31 | 246.89 | 18.22 | 231.97 | 0.3944 | 750.0 | 670.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -7.66 | 246.44 | 17.77 | 232.59 | 0.3824 | 663.0 | 569.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -10.16 | 244.75 | 16.09 | 224.84 | 0.3884 | -612.0 | -508.3 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -10.02 | 244.33 | 15.66 | 224.33 | 0.3821 | -823.0 | -780.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -4.62 | 241.12 | 12.45 | 229.77 | 0.2828 | -636.0 | -556.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -7.47 | 240.93 | 12.27 | 222.40 | 0.3137 | -823.0 | -630.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -7.51 | 239.96 | 11.29 | 219.97 | 0.3036 | -886.0 | -671.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.32 | 239.23 | 10.56 | 214.57 | 0.3201 | -754.0 | -575.2 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -12.39 | 238.64 | 9.97 | 208.31 | 0.3582 | -811.0 | -615.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
