SDO HMI 2014-08-04 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.24 | 12.03 | 5.23 | 8.71 | 18.20 | 182.29 | -46.38 | 70.61 | 0.7313 | -623.1 | -360.9 | |
|
previous
or next observation for the same group /

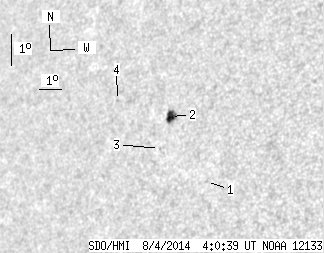

back to the solar disc SDO HMI 2014-08-04 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.38 | 16.43 | 184.65 | -44.01 | 72.58 | 0.7008 | -648.0 | -503.3 | |
| 7.24 | 9.86 | 5.23 | 7.12 | 18.31 | 182.43 | -46.24 | 70.43 | 0.7300 | -841.8 | -595.9 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 17.29 | 182.26 | -46.41 | 71.85 | 0.7300 | -498.0 | -401.1 | |
| 0.00 | 1.00 | 0.00 | 0.75 | 18.61 | 179.79 | -48.88 | 70.54 | 0.7595 | 421.0 | 323.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
