SDO HMI 2014-08-04 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.21 | 212.50 | 29.99 | 117.76 | -7.40 | 250.44 | 22.86 | 239.62 | 0.4489 | 489.4 | 329.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

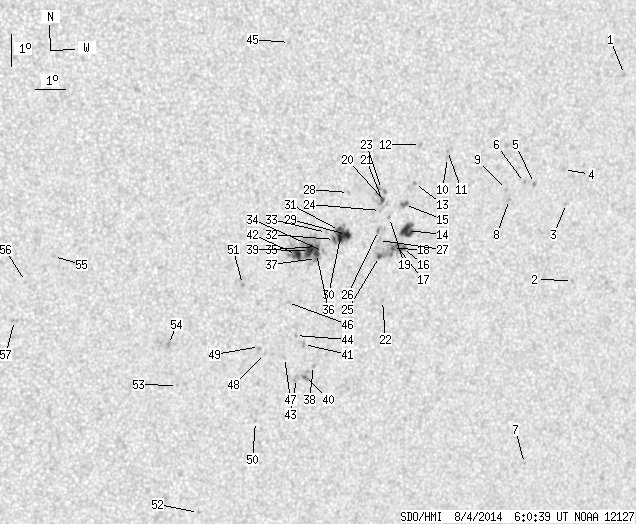

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.75 | -2.37 | 259.72 | 32.15 | 256.29 | 0.5494 | 298.0 | 200.2 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -8.68 | 258.22 | 30.65 | 244.62 | 0.5599 | 856.0 | 730.9 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -6.25 | 257.82 | 30.25 | 248.41 | 0.5406 | 628.0 | 577.7 | |
| 0.00 | 1.72 | 0.00 | 1.01 | -5.19 | 257.66 | 30.08 | 250.16 | 0.5328 | 674.0 | 561.4 | |
| 0.00 | 1.99 | 0.00 | 1.15 | -5.57 | 256.65 | 29.08 | 248.81 | 0.5209 | 767.0 | 643.5 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -5.52 | 256.30 | 28.73 | 248.65 | 0.5157 | 845.0 | 688.4 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -14.45 | 257.18 | 29.60 | 234.89 | 0.5869 | 682.0 | 542.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -6.02 | 255.81 | 28.23 | 247.38 | 0.5117 | 731.0 | 627.5 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -5.70 | 255.69 | 28.11 | 247.87 | 0.5082 | 780.0 | 632.6 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -4.61 | 253.61 | 26.04 | 248.35 | 0.4726 | 712.0 | 600.4 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -4.39 | 253.60 | 26.03 | 248.78 | 0.4713 | 763.0 | 607.4 | |
| 0.00 | 1.90 | 0.00 | 1.06 | -4.16 | 252.68 | 25.11 | 248.50 | 0.4567 | 643.0 | 640.5 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -5.36 | 252.52 | 24.95 | 245.95 | 0.4618 | 831.0 | 658.6 | |
| 10.68 | 15.29 | 5.98 | 8.57 | -6.82 | 252.36 | 24.78 | 242.97 | 0.4692 | 987.5 | 668.3 | |
| 1.72 | 4.16 | 0.96 | 2.32 | -6.00 | 252.21 | 24.64 | 244.41 | 0.4616 | 850.2 | 716.7 | |
| 2.08 | 27.96 | 1.17 | 15.65 | -7.37 | 252.22 | 24.65 | 241.78 | 0.4713 | 670.7 | 215.6 | |
| 0.90 | -16.00 | 0.51 | -16.00 | -7.27 | 252.01 | 24.44 | 241.77 | 0.4677 | 885.7 | 999999 | |
| 1.09 | -16.00 | 0.61 | -16.00 | -7.36 | 251.88 | 24.31 | 241.47 | 0.4666 | 813.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -6.38 | 251.73 | 24.16 | 243.20 | 0.4575 | 740.0 | 558.9 | |
| 0.00 | 2.35 | 0.00 | 1.31 | -5.91 | 251.60 | 24.03 | 244.01 | 0.4525 | 393.0 | 489.1 | |
| 0.90 | 7.15 | 0.50 | 3.96 | -5.84 | 251.47 | 23.89 | 244.01 | 0.4501 | 946.3 | 808.2 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -8.98 | 251.65 | 24.07 | 238.23 | 0.4758 | -636.0 | -526.5 | |
| 0.00 | 4.34 | 0.00 | 2.40 | -5.50 | 251.42 | 23.85 | 244.66 | 0.4471 | 679.0 | 712.1 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -6.15 | 251.41 | 23.84 | 243.35 | 0.4515 | 679.0 | 568.1 | |
| 1.54 | -16.00 | 0.86 | -16.00 | -7.59 | 251.46 | 23.88 | 240.60 | 0.4626 | -925.9 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.41 | -6.77 | 251.38 | 23.81 | 242.09 | 0.4554 | 635.0 | 351.8 | |
| 0.00 | 2.53 | 0.00 | 1.41 | -7.09 | 251.39 | 23.82 | 241.50 | 0.4580 | 20.0 | -162.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -5.55 | 250.32 | 22.75 | 243.47 | 0.4320 | 893.0 | 720.2 | |
| 5.52 | 24.98 | 3.05 | 13.76 | -6.85 | 250.31 | 22.74 | 240.81 | 0.4415 | 918.9 | 715.1 | |
| 5.52 | -29.00 | 3.04 | -29.00 | -6.91 | 250.12 | 22.54 | 240.48 | 0.4392 | 1066.3 | 999999 | |
| 2.90 | -29.00 | 1.59 | -29.00 | -6.72 | 250.07 | 22.50 | 240.81 | 0.4372 | 1023.5 | 999999 | |
| 1.27 | -29.00 | 0.70 | -29.00 | -6.99 | 249.92 | 22.35 | 240.09 | 0.4372 | 1026.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -6.76 | 249.65 | 22.07 | 240.24 | 0.4317 | 718.0 | 534.5 | |
| 0.00 | 2.62 | 0.00 | 1.44 | -7.35 | 249.58 | 22.00 | 238.98 | 0.4354 | 514.0 | 348.1 | |
| 1.27 | 62.35 | 0.70 | 34.13 | -7.19 | 249.37 | 21.80 | 239.07 | 0.4313 | 908.1 | 605.7 | |
| 3.44 | -35.00 | 1.89 | -35.00 | -7.40 | 249.35 | 21.77 | 238.60 | 0.4327 | 970.2 | 999999 | |
| 0.27 | -35.00 | 0.15 | -35.00 | -7.56 | 249.35 | 21.78 | 238.30 | 0.4341 | 713.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -10.94 | 249.47 | 21.90 | 232.21 | 0.4653 | -789.0 | -662.9 | |
| 8.78 | -35.00 | 4.81 | -35.00 | -7.30 | 249.11 | 21.54 | 238.53 | 0.4287 | 1180.8 | 999999 | |
| 0.54 | 5.70 | 0.30 | 3.19 | -11.28 | 249.20 | 21.63 | 231.27 | 0.4652 | -893.7 | -703.3 | |
| 0.00 | 2.08 | 0.00 | 1.16 | -10.26 | 249.09 | 21.52 | 232.91 | 0.4543 | -745.0 | -530.5 | |
| 5.79 | -35.00 | 3.17 | -35.00 | -7.41 | 248.69 | 21.12 | 237.79 | 0.4240 | 1109.5 | 999999 | |
| 0.00 | 4.71 | 0.00 | 2.63 | -11.33 | 248.94 | 21.36 | 230.84 | 0.4625 | -715.0 | -616.9 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -9.96 | 248.80 | 21.23 | 233.08 | 0.4480 | -614.0 | -554.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -0.84 | 248.28 | 20.71 | 252.36 | 0.3726 | 762.0 | 581.2 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -8.90 | 248.47 | 20.90 | 234.60 | 0.4342 | 595.0 | 484.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -10.64 | 248.49 | 20.91 | 231.43 | 0.4505 | -660.0 | -545.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -10.49 | 247.85 | 20.27 | 230.83 | 0.4413 | -730.0 | -602.6 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -10.26 | 247.63 | 20.06 | 230.95 | 0.4365 | -496.0 | -556.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -12.65 | 247.68 | 20.10 | 226.91 | 0.4611 | -637.0 | -551.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -8.28 | 246.96 | 19.39 | 233.75 | 0.4091 | 851.0 | 717.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -15.54 | 246.03 | 18.46 | 220.12 | 0.4753 | 741.0 | 531.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -11.41 | 245.02 | 17.45 | 224.95 | 0.4178 | -830.0 | -618.6 | |
| 0.00 | 3.17 | 0.00 | 1.71 | -10.09 | 244.65 | 17.08 | 226.68 | 0.3992 | -768.0 | -688.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -7.21 | 240.87 | 13.30 | 225.29 | 0.3225 | -876.0 | -691.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -7.97 | 240.01 | 12.44 | 221.73 | 0.3218 | -750.0 | -631.1 | |
| 0.00 | 2.17 | 0.00 | 1.14 | -9.19 | 239.70 | 12.13 | 218.60 | 0.3339 | -797.0 | -649.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
