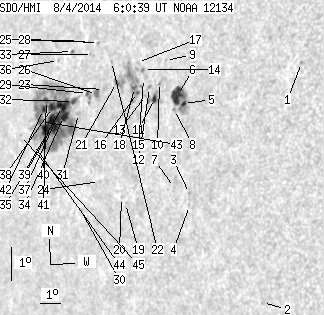

SDO HMI 2014-08-04 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.09 | 352.76 | 69.74 | 299.58 | 9.28 | 172.90 | -54.67 | 82.85 | 0.8131 | 233.3 | 155.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.75 | 11.49 | 182.94 | -44.63 | 79.69 | 0.7020 | -624.0 | -520.2 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 4.10 | 182.24 | -45.33 | 90.19 | 0.7117 | -473.0 | -415.0 | |
| 0.00 | 1.09 | 0.00 | 0.81 | 7.15 | 178.63 | -48.95 | 85.74 | 0.7526 | -630.0 | -503.9 | |
| 0.00 | 1.00 | 0.00 | 0.75 | 6.79 | 178.68 | -48.90 | 86.23 | 0.7521 | -385.0 | -382.5 | |
| 1.54 | 31.49 | 1.17 | 24.03 | 9.86 | 177.87 | -49.70 | 82.15 | 0.7608 | -930.8 | -572.8 | |
| 14.48 | -5.00 | 11.08 | -5.00 | 10.07 | 177.54 | -50.03 | 81.87 | 0.7645 | -737.5 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 7.28 | 177.90 | -49.67 | 85.55 | 0.7608 | -399.0 | -425.0 | |
| 0.00 | 1.81 | 0.00 | 1.39 | 9.64 | 177.48 | -50.09 | 82.44 | 0.7651 | -566.0 | -449.4 | |
| 0.00 | 1.00 | 0.00 | 0.78 | 11.09 | 176.73 | -50.85 | 80.57 | 0.7737 | -591.0 | -501.3 | |
| 0.00 | 1.63 | 0.00 | 1.27 | 10.40 | 176.59 | -50.98 | 81.46 | 0.7750 | -621.0 | -516.8 | |
| 2.81 | 9.77 | 2.20 | 7.65 | 9.90 | 176.45 | -51.12 | 82.11 | 0.7764 | -709.4 | -392.4 | |
| 0.00 | 1.45 | 0.00 | 1.14 | 10.21 | 176.14 | -51.44 | 81.71 | 0.7799 | -435.0 | -373.6 | |
| 0.00 | 1.00 | 0.00 | 0.79 | 9.95 | 175.99 | -51.58 | 82.04 | 0.7814 | -275.0 | -231.6 | |
| 0.00 | 1.81 | 0.00 | 1.44 | 10.73 | 175.71 | -51.86 | 81.05 | 0.7845 | -583.0 | -468.0 | |
| 0.00 | 0.81 | 0.00 | 0.65 | 10.46 | 175.78 | -51.79 | 81.40 | 0.7838 | -447.0 | -436.8 | |
| 0.72 | 48.78 | 0.58 | 39.32 | 10.01 | 175.58 | -51.99 | 81.97 | 0.7859 | -162.2 | 246.8 | |
| 0.00 | 1.63 | 0.00 | 1.30 | 10.92 | 175.36 | -52.21 | 80.82 | 0.7882 | -230.0 | -173.1 | |
| 1.18 | -16.00 | 0.94 | -16.00 | 10.15 | 175.39 | -52.18 | 81.80 | 0.7878 | 350.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.79 | 6.61 | 175.61 | -51.97 | 86.31 | 0.7863 | -467.0 | -322.0 | |
| 0.00 | 0.63 | 0.00 | 0.51 | 6.77 | 175.38 | -52.19 | 86.09 | 0.7886 | -287.0 | -215.3 | |
| 1.54 | -16.00 | 1.26 | -16.00 | 10.23 | 174.45 | -53.12 | 81.70 | 0.7977 | 820.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.90 | 10.84 | 174.04 | -53.53 | 80.94 | 0.8020 | 637.0 | 581.1 | |
| 0.00 | 1.36 | 0.00 | 1.13 | 9.96 | 173.84 | -53.73 | 82.04 | 0.8040 | 462.0 | 383.2 | |
| 0.00 | 1.45 | 0.00 | 1.19 | 7.17 | 174.20 | -53.37 | 85.54 | 0.8009 | 575.0 | 464.5 | |
| 0.00 | 1.18 | 0.00 | 0.99 | 11.36 | 173.21 | -54.36 | 80.31 | 0.8105 | -316.0 | -212.8 | |
| 0.00 | 6.06 | 0.00 | 5.06 | 9.78 | 173.51 | -54.06 | 82.26 | 0.8074 | 862.0 | 652.7 | |
| 0.00 | 2.17 | 0.00 | 1.84 | 10.97 | 173.00 | -54.57 | 80.79 | 0.8126 | 456.0 | 363.4 | |
| 0.00 | 0.27 | 0.00 | 0.23 | 11.35 | 172.73 | -54.84 | 80.33 | 0.8153 | 276.0 | 375.7 | |
| 1.00 | 5.79 | 0.84 | 4.88 | 9.77 | 173.04 | -54.54 | 82.27 | 0.8122 | 657.6 | 614.7 | |
| 0.00 | 0.90 | 0.00 | 0.76 | 6.24 | 173.35 | -54.22 | 86.64 | 0.8100 | 599.0 | 467.3 | |
| 0.00 | 2.17 | 0.00 | 1.85 | 9.13 | 172.70 | -54.87 | 83.06 | 0.8156 | 446.0 | 390.1 | |
| 2.26 | 219.08 | 1.94 | 192.95 | 9.47 | 172.35 | -55.22 | 82.63 | 0.8190 | 791.0 | 223.0 | |
| 0.54 | 1.63 | 0.47 | 1.41 | 10.97 | 171.91 | -55.67 | 80.80 | 0.8234 | 603.8 | 520.9 | |
| 7.15 | -32.00 | 6.20 | -32.00 | 8.97 | 171.92 | -55.65 | 83.23 | 0.8234 | 887.4 | 999999 | |
| 10.32 | -32.00 | 8.98 | -32.00 | 9.27 | 171.80 | -55.77 | 82.87 | 0.8245 | 847.9 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.64 | 10.63 | 171.22 | -56.35 | 81.21 | 0.8300 | 395.0 | 329.1 | |
| 16.11 | -32.00 | 14.14 | -32.00 | 8.75 | 171.48 | -56.10 | 83.49 | 0.8278 | 801.6 | 999999 | |
| 5.70 | -32.00 | 5.03 | -32.00 | 9.19 | 171.26 | -56.31 | 82.95 | 0.8298 | 609.8 | 999999 | |
| 1.27 | -32.00 | 1.12 | -32.00 | 8.58 | 171.35 | -56.23 | 83.69 | 0.8291 | 675.7 | 999999 | |
| 2.44 | -32.00 | 2.18 | -32.00 | 9.37 | 170.88 | -56.69 | 82.72 | 0.8334 | 380.9 | 999999 | |
| 7.87 | -32.00 | 6.99 | -32.00 | 8.49 | 171.03 | -56.54 | 83.79 | 0.8321 | 486.1 | 999999 | |
| 1.99 | -32.00 | 1.78 | -32.00 | 9.09 | 170.78 | -56.79 | 83.06 | 0.8344 | 313.0 | 999999 | |
| 3.17 | -32.00 | 2.84 | -32.00 | 8.71 | 170.70 | -56.87 | 83.51 | 0.8352 | -242.7 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.41 | 7.98 | 170.46 | -57.11 | 84.38 | 0.8377 | -170.0 | -170.8 | |
| 0.00 | 1.09 | 0.00 | 1.00 | 8.19 | 169.67 | -57.90 | 84.10 | 0.8451 | -203.0 | -147.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
