SDO HMI 2014-08-04 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.41 | 0.00 | 8.17 | 16.60 | 253.08 | 26.05 | 297.15 | 0.4751 | 418.2 | 345.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

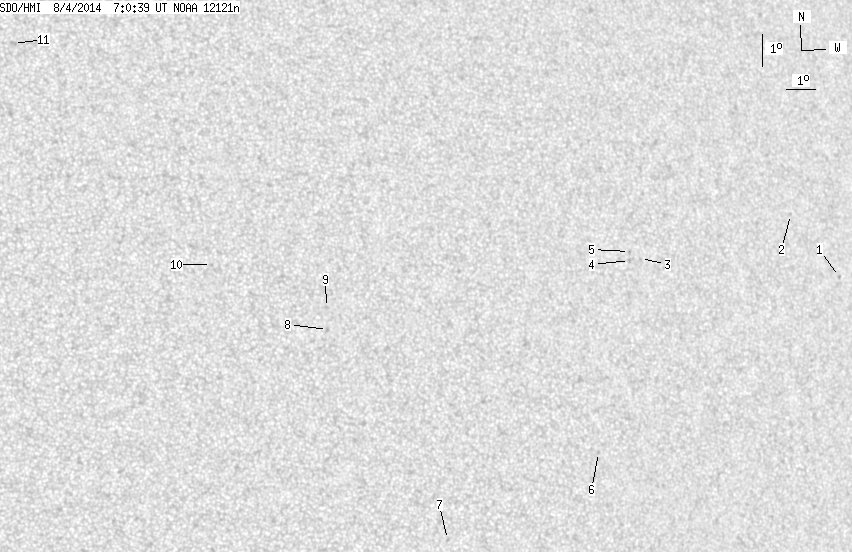

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.82 | 15.82 | 266.77 | 39.74 | 287.48 | 0.6472 | -755.0 | -617.9 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 17.85 | 265.26 | 38.24 | 291.05 | 0.6335 | -459.0 | -414.7 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 16.84 | 259.17 | 32.15 | 291.77 | 0.5505 | 623.0 | 410.3 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 16.80 | 258.75 | 31.73 | 291.89 | 0.5446 | 698.0 | 519.9 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 17.08 | 258.80 | 31.78 | 292.36 | 0.5464 | 737.0 | 610.7 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 10.99 | 256.75 | 29.72 | 281.64 | 0.4990 | 531.0 | 428.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 8.59 | 251.29 | 24.27 | 277.60 | 0.4117 | 476.0 | 501.7 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 15.17 | 247.83 | 20.80 | 295.81 | 0.3824 | 797.0 | 653.9 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 15.84 | 247.87 | 20.84 | 297.40 | 0.3872 | 680.0 | 553.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 17.30 | 244.16 | 17.13 | 305.46 | 0.3468 | 624.0 | 452.3 | |
| 0.00 | 2.17 | 0.00 | 1.16 | 24.43 | 238.19 | 11.16 | 330.98 | 0.3650 | 648.0 | 601.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
