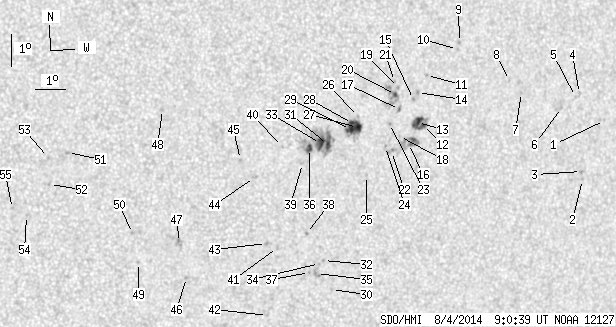

SDO HMI 2014-08-04 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.28 | 190.18 | 21.42 | 106.51 | -7.45 | 250.17 | 24.24 | 240.91 | 0.4675 | 337.8 | 335.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.61 | -7.07 | 259.01 | 33.08 | 248.86 | 0.5830 | 552.0 | 455.5 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -8.88 | 258.37 | 32.44 | 245.57 | 0.5843 | 644.0 | 544.6 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -8.63 | 258.31 | 32.38 | 245.93 | 0.5821 | 782.0 | 683.2 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -6.17 | 258.04 | 32.11 | 249.74 | 0.5654 | 558.0 | 464.4 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -6.26 | 257.90 | 31.97 | 249.51 | 0.5640 | 655.0 | 586.8 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -6.57 | 257.41 | 31.49 | 248.68 | 0.5591 | 510.0 | 430.1 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -6.02 | 255.95 | 30.02 | 248.65 | 0.5363 | 745.0 | 632.7 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -5.63 | 255.51 | 29.58 | 249.05 | 0.5280 | 729.0 | 557.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -4.36 | 253.70 | 27.77 | 250.14 | 0.4960 | 902.0 | 710.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -4.57 | 253.64 | 27.71 | 249.69 | 0.4963 | 797.0 | 656.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -5.32 | 252.61 | 26.68 | 247.48 | 0.4859 | 790.0 | 619.7 | |
| 2.08 | 17.46 | 1.19 | 9.93 | -6.88 | 252.55 | 26.63 | 244.53 | 0.4948 | 774.2 | 517.2 | |
| 7.60 | -12.00 | 4.32 | -12.00 | -6.77 | 252.38 | 26.45 | 244.57 | 0.4917 | 1007.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -5.84 | 252.33 | 26.40 | 246.28 | 0.4851 | 714.0 | 588.1 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -6.05 | 252.20 | 26.27 | 245.77 | 0.4846 | 779.0 | 627.5 | |
| 0.00 | 16.65 | 0.00 | 9.47 | -7.42 | 252.11 | 26.18 | 243.15 | 0.4923 | 552.0 | 550.2 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -6.34 | 251.74 | 25.81 | 244.82 | 0.4801 | 851.0 | 714.1 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -7.18 | 251.79 | 25.86 | 243.29 | 0.4863 | 579.0 | 456.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -5.65 | 251.67 | 25.74 | 246.08 | 0.4747 | 852.0 | 671.2 | |
| 1.45 | 16.74 | 0.81 | 9.40 | -5.86 | 251.58 | 25.65 | 245.59 | 0.4748 | 916.1 | 693.7 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -5.46 | 251.52 | 25.60 | 246.33 | 0.4715 | 662.0 | 653.3 | |
| 0.00 | 3.98 | 0.00 | 2.25 | -7.64 | 251.54 | 25.61 | 242.22 | 0.4862 | -744.0 | -614.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -6.76 | 251.42 | 25.49 | 243.74 | 0.4785 | 401.0 | 376.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -7.47 | 251.33 | 25.40 | 242.32 | 0.4821 | -870.0 | -718.5 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -8.35 | 250.74 | 24.81 | 240.13 | 0.4807 | 605.0 | 457.1 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -6.49 | 250.36 | 24.43 | 243.25 | 0.4620 | 630.0 | 459.1 | |
| 5.88 | 21.27 | 3.29 | 11.87 | -6.83 | 250.34 | 24.41 | 242.58 | 0.4642 | 922.8 | 688.8 | |
| 2.62 | -27.00 | 1.46 | -27.00 | -6.70 | 250.17 | 24.24 | 242.66 | 0.4609 | 1057.6 | 999999 | |
| 5.52 | -27.00 | 3.08 | -27.00 | -6.88 | 250.11 | 24.18 | 242.25 | 0.4614 | 1100.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -11.92 | 249.83 | 23.91 | 232.98 | 0.4986 | -617.0 | -426.6 | |
| 3.35 | 41.35 | 1.86 | 22.93 | -7.32 | 249.36 | 23.43 | 240.64 | 0.4544 | 910.8 | 619.7 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -10.98 | 249.48 | 23.55 | 234.14 | 0.4860 | -882.0 | -680.0 | |
| 6.61 | -31.00 | 3.66 | -31.00 | -7.28 | 249.12 | 23.20 | 240.46 | 0.4509 | 1159.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -11.07 | 249.35 | 23.42 | 233.84 | 0.4852 | -790.0 | -619.1 | |
| 0.00 | 4.62 | 0.00 | 2.61 | -11.38 | 249.28 | 23.35 | 233.22 | 0.4870 | -875.0 | -713.0 | |
| 3.17 | 12.58 | 1.75 | 6.95 | -7.42 | 248.77 | 22.84 | 239.80 | 0.4471 | 1085.6 | 831.0 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -11.34 | 249.04 | 23.11 | 233.01 | 0.4837 | -830.0 | -725.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -10.09 | 248.84 | 22.91 | 234.92 | 0.4702 | -746.0 | -670.0 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -7.88 | 248.56 | 22.63 | 238.67 | 0.4480 | 839.0 | 711.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -7.32 | 247.86 | 21.94 | 238.96 | 0.4342 | 763.0 | 619.6 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -10.50 | 247.90 | 21.97 | 233.06 | 0.4621 | -759.0 | -617.7 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -12.66 | 247.74 | 21.81 | 229.22 | 0.4807 | -652.0 | -537.2 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -10.35 | 247.52 | 21.59 | 232.83 | 0.4561 | -862.0 | -656.3 | |
| 0.00 | 1.99 | 0.00 | 1.09 | -8.25 | 246.99 | 21.06 | 236.05 | 0.4305 | 794.0 | 655.7 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -7.67 | 246.50 | 20.57 | 236.57 | 0.4189 | 779.0 | 630.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -11.33 | 244.94 | 19.01 | 227.53 | 0.4349 | -797.0 | -667.9 | |
| 0.00 | 4.98 | 0.00 | 2.71 | -10.21 | 244.64 | 18.71 | 229.07 | 0.4197 | -675.0 | -639.7 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -6.01 | 243.90 | 17.97 | 236.48 | 0.3695 | -794.0 | -533.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -10.80 | 243.34 | 17.41 | 225.94 | 0.4108 | -779.0 | -561.1 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -9.87 | 243.10 | 17.17 | 227.23 | 0.3978 | -799.0 | -638.9 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -7.26 | 240.90 | 14.97 | 228.60 | 0.3432 | -866.0 | -755.6 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -8.25 | 240.37 | 14.44 | 225.44 | 0.3477 | -747.0 | -614.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -7.40 | 240.30 | 14.38 | 227.13 | 0.3374 | -805.0 | -628.2 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -9.20 | 239.67 | 13.74 | 222.12 | 0.3512 | -786.0 | -611.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -8.97 | 239.22 | 13.29 | 221.61 | 0.3434 | -836.0 | -696.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
