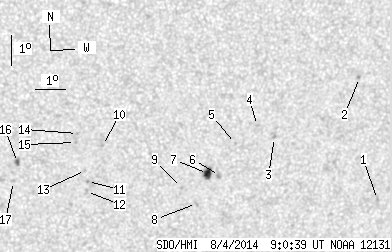

SDO HMI 2014-08-04 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.61 | 33.03 | 3.72 | 18.57 | -18.91 | 238.96 | 13.03 | 206.70 | 0.4741 | 141.1 | 99.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.96 | -20.19 | 246.10 | 20.17 | 216.62 | 0.5446 | 697.0 | 584.7 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -16.08 | 245.01 | 19.08 | 220.29 | 0.4877 | 866.0 | 801.6 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -17.97 | 242.35 | 16.42 | 213.76 | 0.4859 | 623.0 | 547.4 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -17.56 | 241.75 | 15.82 | 213.28 | 0.4755 | 636.0 | 625.3 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -18.13 | 241.07 | 15.14 | 211.47 | 0.4773 | 684.0 | 568.9 | |
| 0.00 | 2.62 | 0.00 | 1.49 | -19.19 | 240.63 | 14.70 | 209.57 | 0.4877 | 644.0 | 652.1 | |
| 5.52 | 9.50 | 3.12 | 5.37 | -19.11 | 240.22 | 14.29 | 208.97 | 0.4836 | 1008.0 | 648.9 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -20.12 | 239.95 | 14.02 | 207.48 | 0.4949 | 673.0 | 594.0 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -19.56 | 239.40 | 13.47 | 207.10 | 0.4837 | 771.0 | 651.0 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -18.09 | 236.69 | 10.76 | 203.60 | 0.4454 | -885.0 | -741.1 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -19.28 | 236.28 | 10.35 | 201.72 | 0.4600 | -792.0 | -660.5 | |
| 0.00 | 2.17 | 0.00 | 1.21 | -19.62 | 236.27 | 10.34 | 201.42 | 0.4647 | -765.0 | -624.9 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -18.91 | 236.19 | 10.26 | 201.87 | 0.4541 | -878.0 | -652.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -17.67 | 235.86 | 9.93 | 202.33 | 0.4342 | -805.0 | -620.6 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -17.97 | 235.81 | 9.88 | 201.96 | 0.4383 | -788.0 | -577.0 | |
| 1.09 | 3.26 | 0.60 | 1.79 | -18.60 | 233.96 | 8.03 | 197.68 | 0.4378 | -929.5 | -762.8 | |
| 0.00 | 1.99 | 0.00 | 1.10 | -19.24 | 233.86 | 7.93 | 197.02 | 0.4468 | -627.0 | -504.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
