SDO HMI 2014-08-04 10:00:39 UT

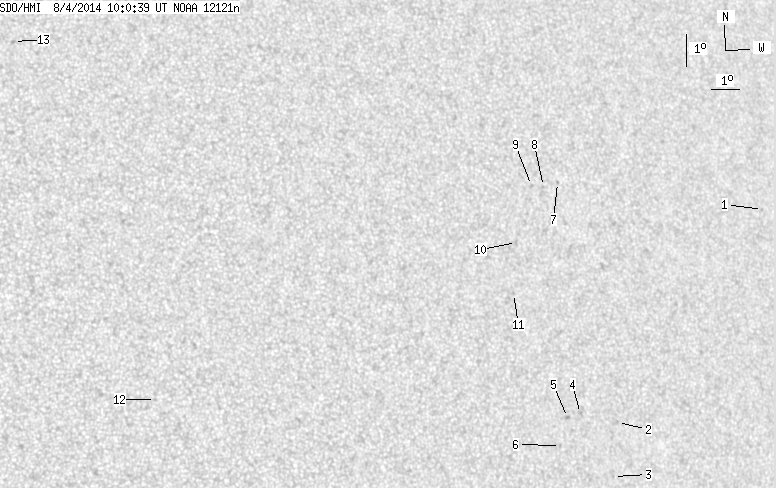

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.03 | 0.00 | 10.56 | 13.61 | 256.48 | 31.10 | 287.45 | 0.5306 | 570.8 | 484.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.72 | 15.80 | 266.74 | 41.36 | 287.07 | 0.6675 | -661.0 | -485.7 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 9.68 | 259.89 | 34.51 | 278.37 | 0.5666 | 563.0 | 486.5 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 8.05 | 259.56 | 34.18 | 275.49 | 0.5610 | 630.0 | 506.0 | |
| 0.00 | 2.08 | 0.00 | 1.23 | 10.03 | 258.55 | 33.17 | 279.17 | 0.5479 | 743.0 | 580.3 | |
| 0.00 | 1.99 | 0.00 | 1.17 | 9.94 | 258.06 | 32.68 | 279.06 | 0.5407 | 763.0 | 617.0 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 9.10 | 257.72 | 32.34 | 277.55 | 0.5348 | 692.0 | 541.8 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 17.14 | 258.83 | 33.45 | 291.71 | 0.5691 | 471.0 | 477.9 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 17.05 | 258.28 | 32.90 | 291.79 | 0.5614 | 623.0 | 519.4 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 17.10 | 257.84 | 32.46 | 292.08 | 0.5557 | 695.0 | 563.6 | |
| 0.00 | 1.81 | 0.00 | 1.06 | 15.38 | 256.96 | 31.58 | 289.40 | 0.5374 | 712.0 | 593.5 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 13.82 | 256.60 | 31.22 | 286.67 | 0.5274 | 647.0 | 504.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 11.13 | 243.98 | 18.60 | 286.83 | 0.3284 | 720.0 | 532.6 | |
| 0.00 | 1.72 | 0.00 | 0.92 | 22.36 | 240.28 | 14.90 | 320.14 | 0.3726 | 823.0 | 610.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
