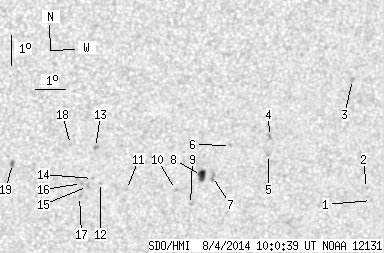

SDO HMI 2014-08-04 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.06 | 36.12 | 3.43 | 20.40 | -18.81 | 239.49 | 14.11 | 208.74 | 0.4804 | 119.7 | 90.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.37 | -20.18 | 246.10 | 20.72 | 217.37 | 0.5493 | 707.0 | 590.0 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -19.76 | 245.87 | 20.49 | 217.55 | 0.5426 | 738.0 | 591.8 | |
| 0.00 | 2.35 | 0.00 | 1.34 | -16.10 | 244.96 | 19.58 | 220.99 | 0.4929 | 965.0 | 733.9 | |
| 0.00 | 2.44 | 0.00 | 1.39 | -17.89 | 242.36 | 16.98 | 214.74 | 0.4896 | 762.0 | 529.2 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -18.49 | 242.39 | 17.01 | 214.06 | 0.4972 | 641.0 | 506.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -18.15 | 241.08 | 15.70 | 212.39 | 0.4821 | 685.0 | 481.3 | |
| 0.00 | 2.99 | 0.00 | 1.70 | -19.17 | 240.58 | 15.20 | 210.41 | 0.4912 | 866.0 | 678.6 | |
| 5.43 | 8.23 | 3.08 | 4.67 | -19.13 | 240.21 | 14.83 | 209.84 | 0.4878 | 927.9 | 674.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -20.10 | 239.93 | 14.55 | 208.37 | 0.4984 | 661.0 | 597.6 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -19.57 | 239.38 | 14.00 | 207.99 | 0.4876 | 712.0 | 664.7 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -19.53 | 237.75 | 12.37 | 205.22 | 0.4759 | -509.0 | -436.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -19.27 | 236.88 | 11.50 | 203.87 | 0.4667 | -547.0 | -446.9 | |
| 0.00 | 1.90 | 0.00 | 1.05 | -18.10 | 236.63 | 11.25 | 204.53 | 0.4486 | -993.0 | -809.7 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -19.13 | 236.60 | 11.22 | 203.50 | 0.4630 | -787.0 | -574.1 | |
| 0.00 | 2.53 | 0.00 | 1.42 | -19.40 | 236.46 | 11.08 | 202.99 | 0.4659 | -742.0 | -651.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -19.29 | 236.25 | 10.87 | 202.70 | 0.4632 | -764.0 | -569.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -19.73 | 236.22 | 10.84 | 202.26 | 0.4692 | -671.0 | -579.5 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -17.98 | 235.81 | 10.43 | 203.05 | 0.4417 | -736.0 | -642.4 | |
| 0.63 | 2.90 | 0.35 | 1.60 | -18.58 | 233.96 | 8.58 | 198.82 | 0.4401 | -948.9 | -800.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
