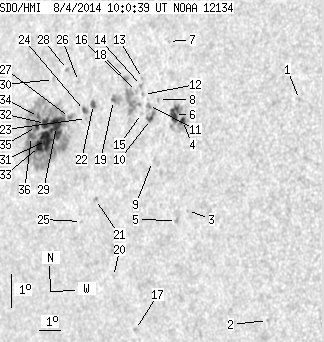

SDO HMI 2014-08-04 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.44 | 333.52 | 67.21 | 270.45 | 9.28 | 172.70 | -52.68 | 82.88 | 0.7926 | 298.8 | 124.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.61 | 10.87 | 182.80 | -42.58 | 80.44 | 0.6761 | -666.0 | -553.6 | |
| 0.00 | 0.63 | 0.00 | 0.43 | 4.07 | 182.27 | -43.11 | 90.47 | 0.6839 | -576.0 | -464.4 | |
| 0.00 | 0.90 | 0.00 | 0.65 | 7.16 | 178.50 | -46.88 | 85.82 | 0.7284 | -615.0 | -486.5 | |
| 2.81 | 29.32 | 2.05 | 21.47 | 9.87 | 177.84 | -47.54 | 82.10 | 0.7361 | -903.8 | -581.7 | |
| 0.00 | 1.99 | 0.00 | 1.45 | 6.82 | 178.05 | -47.33 | 86.26 | 0.7339 | -622.0 | -424.3 | |
| 8.51 | -4.00 | 6.25 | -4.00 | 10.02 | 177.44 | -47.94 | 81.90 | 0.7408 | -783.4 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.68 | 12.21 | 176.68 | -48.70 | 78.99 | 0.7503 | -532.0 | -433.5 | |
| 0.00 | 1.54 | 0.00 | 1.15 | 10.42 | 176.61 | -48.77 | 81.39 | 0.7504 | -449.0 | -471.1 | |
| 0.00 | 0.63 | 0.00 | 0.47 | 8.52 | 176.69 | -48.69 | 83.93 | 0.7493 | -419.0 | -435.6 | |
| 2.08 | 8.05 | 1.56 | 6.04 | 9.78 | 176.36 | -49.02 | 82.24 | 0.7531 | -662.4 | -549.8 | |
| 0.00 | 2.81 | 0.00 | 2.11 | 10.20 | 176.18 | -49.20 | 81.69 | 0.7552 | -546.0 | -449.2 | |
| 0.00 | 1.54 | 0.00 | 1.17 | 10.51 | 175.88 | -49.50 | 81.28 | 0.7587 | -434.0 | -371.0 | |
| 0.00 | 1.18 | 0.00 | 0.89 | 10.99 | 175.72 | -49.66 | 80.65 | 0.7605 | -515.0 | -424.8 | |
| 0.00 | 1.99 | 0.00 | 1.51 | 10.78 | 175.73 | -49.65 | 80.93 | 0.7604 | -585.0 | -471.7 | |
| 0.00 | 1.09 | 0.00 | 0.82 | 9.93 | 175.91 | -49.47 | 82.05 | 0.7583 | -256.0 | -187.6 | |
| 0.00 | 1.36 | 0.00 | 1.04 | 10.58 | 175.53 | -49.85 | 81.20 | 0.7626 | -272.0 | -170.7 | |
| 0.00 | 1.54 | 0.00 | 1.16 | 3.37 | 176.50 | -48.88 | 90.78 | 0.7544 | -559.0 | -411.7 | |
| 0.63 | 26.78 | 0.49 | 20.53 | 10.93 | 174.91 | -50.47 | 80.76 | 0.7695 | 495.6 | 196.2 | |
| 0.81 | 8.14 | 0.63 | 6.33 | 10.22 | 174.49 | -50.89 | 81.69 | 0.7740 | 801.3 | 617.7 | |
| 0.00 | 0.81 | 0.00 | 0.63 | 4.90 | 175.34 | -50.04 | 88.65 | 0.7662 | -223.0 | -192.7 | |
| 0.00 | 1.72 | 0.00 | 1.35 | 7.16 | 174.18 | -51.20 | 85.64 | 0.7778 | 641.0 | 530.1 | |
| 2.35 | 3.98 | 1.87 | 3.17 | 10.02 | 173.54 | -51.84 | 81.96 | 0.7843 | 817.3 | 667.0 | |
| 0.00 | 1.00 | 0.00 | 0.80 | 9.57 | 173.28 | -52.10 | 82.53 | 0.7870 | 629.0 | 622.9 | |
| 1.63 | 3.53 | 1.31 | 2.83 | 9.80 | 173.13 | -52.25 | 82.24 | 0.7886 | 719.3 | 616.8 | |
| 0.00 | 0.81 | 0.00 | 0.65 | 6.44 | 173.59 | -51.79 | 86.54 | 0.7845 | 492.0 | 508.8 | |
| 0.00 | 1.18 | 0.00 | 0.95 | 10.65 | 172.62 | -52.76 | 81.16 | 0.7940 | 492.0 | 373.5 | |
| 1.09 | 225.04 | 0.88 | 188.11 | 9.53 | 172.42 | -52.96 | 82.58 | 0.7960 | 783.8 | 212.6 | |
| 0.00 | 2.17 | 0.00 | 1.79 | 10.97 | 171.97 | -53.41 | 80.77 | 0.8008 | 630.0 | 536.7 | |
| 20.72 | -27.00 | 17.11 | -27.00 | 9.21 | 171.82 | -53.56 | 82.98 | 0.8023 | 856.0 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.66 | 10.61 | 171.33 | -54.05 | 81.23 | 0.8073 | 445.0 | 330.2 | |
| 17.74 | -27.00 | 14.79 | -27.00 | 8.74 | 171.40 | -53.98 | 83.55 | 0.8067 | 793.7 | 999999 | |
| 6.52 | -27.00 | 5.45 | -27.00 | 9.25 | 171.23 | -54.15 | 82.92 | 0.8083 | 598.0 | 999999 | |
| 9.59 | -27.00 | 8.07 | -27.00 | 8.53 | 171.07 | -54.31 | 83.81 | 0.8101 | 527.9 | 999999 | |
| 1.54 | -27.00 | 1.30 | -27.00 | 9.43 | 170.82 | -54.56 | 82.69 | 0.8125 | 396.9 | 999999 | |
| 2.35 | -27.00 | 1.99 | -27.00 | 9.12 | 170.78 | -54.60 | 83.07 | 0.8129 | 392.0 | 999999 | |
| 4.07 | -27.00 | 3.46 | -27.00 | 8.80 | 170.59 | -54.79 | 83.47 | 0.8149 | -354.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
