SDO HMI 2014-08-04 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.46 | 363.70 | 48.79 | 186.72 | -7.33 | 228.28 | 3.45 | 192.50 | 0.2591 | 334.6 | 298.0 | |
|
previous
or next observation for the same group /

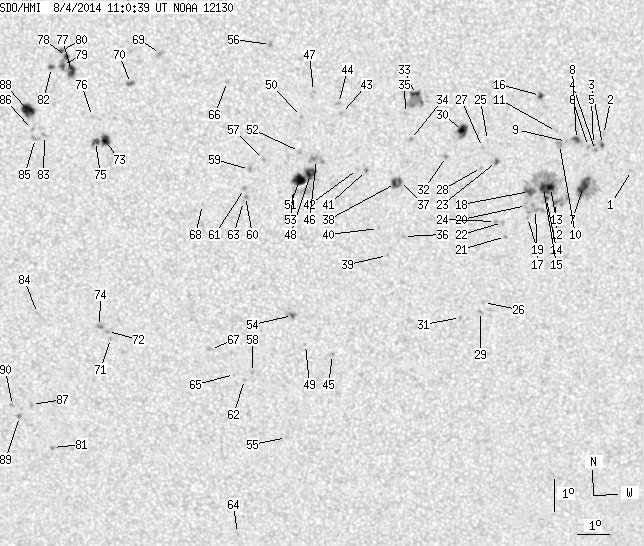

back to the solar disc SDO HMI 2014-08-04 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.56 | -7.30 | 236.37 | 11.54 | 221.03 | 0.3035 | 663.0 | 471.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -6.15 | 235.47 | 10.64 | 221.31 | 0.2793 | 754.0 | 646.8 | |
| 0.90 | 2.44 | 0.47 | 1.26 | -6.46 | 235.44 | 10.61 | 220.52 | 0.2829 | 947.7 | 810.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -6.65 | 235.23 | 10.40 | 219.52 | 0.2830 | 918.0 | 780.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -6.46 | 235.16 | 10.33 | 219.77 | 0.2798 | 851.0 | 753.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.52 | 235.01 | 10.18 | 219.21 | 0.2790 | 826.0 | 767.6 | |
| 9.95 | 31.76 | 5.16 | 16.47 | -7.73 | 234.88 | 10.05 | 216.24 | 0.2938 | 1095.5 | 438.1 | |
| 1.99 | 3.98 | 1.02 | 2.05 | -6.29 | 234.63 | 9.80 | 218.67 | 0.2720 | 1183.2 | 894.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -6.35 | 234.32 | 9.49 | 217.64 | 0.2696 | 900.0 | 676.2 | |
| 0.00 | 4.52 | 0.00 | 2.33 | -6.44 | 234.11 | 9.28 | 216.80 | 0.2686 | 1007.0 | 775.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -6.03 | 234.01 | 9.18 | 217.43 | 0.2621 | 686.0 | 529.8 | |
| 0.81 | 8.78 | 0.42 | 4.55 | -8.25 | 234.02 | 9.19 | 212.84 | 0.2927 | 992.8 | 793.0 | |
| 3.98 | 64.69 | 2.06 | 33.39 | -7.78 | 233.85 | 9.02 | 213.26 | 0.2846 | 1337.5 | 612.9 | |
| 1.36 | -13.00 | 0.70 | -13.00 | -8.12 | 233.74 | 8.91 | 212.26 | 0.2884 | 974.1 | 999999 | |
| 3.53 | -13.00 | 1.82 | -13.00 | -7.77 | 233.64 | 8.81 | 212.63 | 0.2826 | 1311.2 | 999999 | |
| 1.54 | 2.90 | 0.79 | 1.48 | -4.90 | 233.50 | 8.67 | 218.60 | 0.2417 | -1042.1 | -826.1 | |
| 0.00 | 9.68 | 0.00 | 5.01 | -8.46 | 233.40 | 8.57 | 210.67 | 0.2903 | 737.0 | 711.7 | |
| 3.71 | -13.00 | 1.91 | -13.00 | -7.89 | 233.20 | 8.37 | 211.11 | 0.2804 | 1173.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -8.70 | 233.16 | 8.33 | 209.52 | 0.2918 | 648.0 | 550.8 | |
| 0.00 | 3.35 | 0.00 | 1.73 | -8.33 | 233.12 | 8.29 | 210.06 | 0.2860 | 527.0 | 705.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.29 | 232.49 | 7.66 | 206.57 | 0.2952 | 852.0 | 716.8 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -8.85 | 232.38 | 7.55 | 206.95 | 0.2879 | 896.0 | 640.2 | |
| 1.00 | 2.71 | 0.51 | 1.39 | -6.93 | 232.17 | 7.34 | 209.60 | 0.2577 | 1085.6 | 872.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -8.81 | 232.17 | 7.34 | 206.33 | 0.2857 | 936.0 | 761.5 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -6.28 | 231.88 | 7.05 | 209.92 | 0.2456 | 853.0 | 618.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -11.37 | 231.85 | 7.02 | 201.90 | 0.3225 | 635.0 | 339.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.49 | 231.73 | 6.90 | 208.96 | 0.2476 | 879.0 | 675.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -7.12 | 231.70 | 6.87 | 207.70 | 0.2567 | 671.0 | 573.8 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -11.66 | 231.76 | 6.93 | 201.32 | 0.3264 | 885.0 | 699.7 | |
| 7.42 | 10.95 | 3.78 | 5.58 | -5.95 | 231.11 | 6.28 | 207.75 | 0.2345 | -1018.4 | -694.7 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -11.84 | 231.14 | 6.31 | 199.37 | 0.3257 | 1052.0 | 777.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -6.76 | 230.62 | 5.79 | 204.45 | 0.2432 | 1080.0 | 951.4 | |
| 3.71 | 20.54 | 1.88 | 10.40 | -4.82 | 229.65 | 4.82 | 204.08 | 0.2063 | -878.9 | 455.4 | |
| 0.00 | 1.81 | 0.00 | 0.92 | -6.22 | 229.51 | 4.68 | 200.99 | 0.2274 | 994.0 | 855.2 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -5.41 | 229.35 | 4.52 | 201.66 | 0.2135 | 998.0 | 770.8 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -9.25 | 229.32 | 4.49 | 196.39 | 0.2752 | 945.0 | 734.9 | |
| 1.72 | 8.96 | 0.88 | 4.58 | -7.52 | 229.18 | 4.35 | 197.85 | 0.2465 | 1034.4 | 896.6 | |
| 3.98 | -37.00 | 2.03 | -37.00 | -7.58 | 229.06 | 4.23 | 197.30 | 0.2469 | 1128.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.85 | 228.84 | 4.01 | 194.15 | 0.2827 | 914.0 | 763.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.99 | 228.55 | 3.72 | 193.92 | 0.2676 | 755.0 | 589.5 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -7.17 | 228.17 | 3.34 | 194.22 | 0.2360 | 1077.0 | 926.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.14 | 227.89 | 3.06 | 193.12 | 0.2344 | 851.0 | 713.9 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -5.39 | 227.39 | 2.56 | 192.70 | 0.2034 | 1012.0 | 780.5 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -5.08 | 227.30 | 2.47 | 192.59 | 0.1978 | 954.0 | 798.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -12.99 | 227.16 | 2.33 | 186.93 | 0.3293 | -954.0 | -792.4 | |
| 0.00 | 7.96 | 0.00 | 4.05 | -6.82 | 226.63 | 1.80 | 188.00 | 0.2251 | 961.0 | 893.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -4.70 | 226.54 | 1.70 | 189.07 | 0.1890 | 915.0 | 704.4 | |
| 7.24 | 26.69 | 3.69 | 13.60 | -7.25 | 226.45 | 1.62 | 186.96 | 0.2321 | 855.5 | 339.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -12.67 | 226.31 | 1.48 | 184.51 | 0.3225 | -757.0 | -613.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.48 | 226.17 | 1.34 | 186.67 | 0.2013 | 789.0 | 662.8 | |
| 10.04 | -48.00 | 5.12 | -48.00 | -7.44 | 226.11 | 1.28 | 185.45 | 0.2346 | 971.5 | 999999 | |
| 0.00 | 3.08 | 0.00 | 1.56 | -6.57 | 226.11 | 1.28 | 185.82 | 0.2198 | 838.0 | 664.5 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -7.75 | 225.93 | 1.10 | 184.56 | 0.2396 | 126.0 | 147.0 | |
| 1.18 | 2.80 | 0.61 | 1.46 | -11.74 | 225.90 | 1.07 | 183.45 | 0.3066 | 1060.7 | 842.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.68 | 225.73 | 0.90 | 182.34 | 0.3714 | -772.0 | -545.2 | |
| 0.00 | 2.80 | 0.00 | 1.41 | -3.25 | 225.22 | 0.39 | 182.44 | 0.1617 | -994.0 | -631.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -6.81 | 225.01 | 0.18 | 180.79 | 0.2229 | 857.0 | 679.1 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -13.56 | 224.66 | -0.17 | 179.50 | 0.3364 | -805.0 | -727.8 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -7.12 | 224.58 | -0.25 | 178.90 | 0.2282 | 1012.0 | 741.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.97 | 224.45 | -0.38 | 178.46 | 0.2427 | 955.0 | 844.0 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -7.72 | 224.42 | -0.41 | 178.30 | 0.2384 | 967.0 | 779.8 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -13.79 | 224.41 | -0.42 | 178.79 | 0.3402 | -745.0 | -499.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -8.13 | 224.39 | -0.44 | 178.22 | 0.2454 | 722.0 | 535.6 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -18.86 | 224.17 | -0.66 | 178.50 | 0.4224 | -720.0 | -546.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -13.63 | 224.10 | -0.73 | 177.88 | 0.3377 | -796.0 | -621.4 | |
| 0.00 | 2.08 | 0.00 | 1.05 | -4.39 | 223.91 | -0.92 | 174.94 | 0.1820 | -743.0 | -516.8 | |
| 0.00 | 3.26 | 0.00 | 1.71 | -12.82 | 223.35 | -1.48 | 175.54 | 0.3251 | -895.0 | -638.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -8.22 | 223.13 | -1.70 | 173.19 | 0.2486 | -847.0 | -600.4 | |
| 0.00 | 3.80 | 0.00 | 1.91 | -3.53 | 221.87 | -2.96 | 162.71 | 0.1741 | -1093.0 | -861.7 | |
| 1.09 | 3.98 | 0.55 | 2.01 | -4.46 | 220.95 | -3.88 | 159.60 | 0.1944 | -1096.0 | -877.7 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -12.48 | 220.23 | -4.60 | 166.12 | 0.3278 | -755.0 | -610.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -12.26 | 220.14 | -4.69 | 165.69 | 0.3245 | -833.0 | -713.6 | |
| 5.70 | 8.60 | 2.90 | 4.37 | -6.24 | 220.17 | -4.66 | 159.11 | 0.2276 | 1088.4 | 714.1 | |
| 0.00 | 2.80 | 0.00 | 1.47 | -12.10 | 219.90 | -4.93 | 164.84 | 0.3230 | -814.0 | -788.3 | |
| 2.53 | 4.52 | 1.29 | 2.30 | -6.27 | 219.86 | -4.97 | 157.92 | 0.2300 | 960.4 | 684.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -5.49 | 219.78 | -5.05 | 156.22 | 0.2184 | -817.0 | -552.3 | |
| 5.34 | 21.44 | 2.70 | 10.84 | -4.07 | 219.15 | -5.68 | 150.49 | 0.2014 | -1069.8 | -817.9 | |
| 2.08 | -77.00 | 1.05 | -77.00 | -3.64 | 219.00 | -5.83 | 148.74 | 0.1963 | -1153.4 | 999999 | |
| 1.90 | -77.00 | 0.96 | -77.00 | -3.92 | 218.87 | -5.96 | 148.93 | 0.2015 | -1039.8 | 999999 | |
| 0.90 | -77.00 | 0.46 | -77.00 | -3.46 | 218.85 | -5.98 | 147.58 | 0.1950 | -1137.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -16.04 | 218.31 | -6.52 | 163.76 | 0.3919 | -782.0 | -704.9 | |
| 1.27 | 2.80 | 0.64 | 1.42 | -3.99 | 218.53 | -6.30 | 147.68 | 0.2055 | -945.5 | -749.1 | |
| 0.00 | 2.35 | 0.00 | 1.20 | -6.10 | 218.30 | -6.53 | 151.57 | 0.2387 | -998.0 | -801.3 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -11.71 | 217.97 | -6.86 | 158.92 | 0.3267 | -837.0 | -653.8 | |
| 0.00 | 4.07 | 0.00 | 2.08 | -6.19 | 218.02 | -6.81 | 150.75 | 0.2424 | -792.0 | -681.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -5.91 | 217.93 | -6.90 | 149.85 | 0.2390 | -947.0 | -801.6 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -14.64 | 217.69 | -7.14 | 161.13 | 0.3734 | -777.0 | -669.9 | |
| 10.59 | 14.02 | 5.39 | 7.14 | -5.33 | 217.81 | -7.02 | 148.14 | 0.2315 | 820.7 | 399.3 | |
| 0.00 | 2.17 | 0.00 | 1.16 | -15.04 | 217.30 | -7.53 | 160.53 | 0.3815 | -749.0 | -647.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -14.68 | 217.09 | -7.74 | 159.70 | 0.3773 | -718.0 | -560.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
