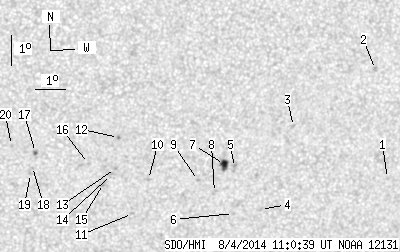

SDO HMI 2014-08-04 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.88 | 37.01 | 3.33 | 20.95 | -19.09 | 239.07 | 14.24 | 208.67 | 0.4851 | 35.2 | 72.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.48 | -19.78 | 245.84 | 21.01 | 218.22 | 0.5475 | 753.0 | 541.9 | |
| 0.00 | 2.44 | 0.00 | 1.39 | -16.12 | 244.99 | 20.16 | 221.78 | 0.4989 | 895.0 | 700.0 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -17.91 | 242.42 | 17.59 | 215.65 | 0.4952 | 740.0 | 580.7 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -20.67 | 241.60 | 16.77 | 211.25 | 0.5224 | 646.0 | 549.9 | |
| 0.00 | 4.25 | 0.00 | 2.42 | -19.22 | 240.57 | 15.74 | 211.23 | 0.4960 | 734.0 | 526.2 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -20.78 | 240.69 | 15.86 | 209.76 | 0.5169 | 705.0 | 594.4 | |
| 5.34 | 7.33 | 3.03 | 4.17 | -19.11 | 240.22 | 15.39 | 210.79 | 0.4919 | 939.6 | 696.6 | |
| 0.00 | 2.08 | 0.00 | 1.19 | -20.05 | 239.98 | 15.15 | 209.40 | 0.5021 | 611.0 | 569.6 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -19.62 | 239.40 | 14.57 | 208.90 | 0.4924 | 846.0 | 629.4 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -19.54 | 237.73 | 12.90 | 206.14 | 0.4796 | -599.0 | -439.5 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -20.68 | 237.29 | 12.46 | 204.32 | 0.4923 | -712.0 | -553.1 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -18.11 | 236.64 | 11.81 | 205.58 | 0.4524 | -936.0 | -814.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -19.14 | 236.61 | 11.78 | 204.52 | 0.4667 | -760.0 | -567.8 | |
| 0.00 | 2.08 | 0.00 | 1.17 | -19.34 | 236.50 | 11.67 | 204.12 | 0.4688 | -775.0 | -459.2 | |
| 0.00 | 1.90 | 0.00 | 1.07 | -19.64 | 236.25 | 11.42 | 203.41 | 0.4714 | -735.0 | -651.6 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -18.96 | 235.71 | 10.88 | 203.02 | 0.4585 | -492.0 | -369.2 | |
| 0.54 | 1.63 | 0.30 | 0.90 | -18.55 | 233.96 | 9.13 | 199.96 | 0.4426 | -906.5 | -795.1 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -19.02 | 233.89 | 9.06 | 199.44 | 0.4491 | -339.0 | -415.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -19.25 | 233.84 | 9.01 | 199.15 | 0.4523 | -722.0 | -579.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -18.30 | 233.17 | 8.34 | 198.54 | 0.4349 | -743.0 | -579.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
