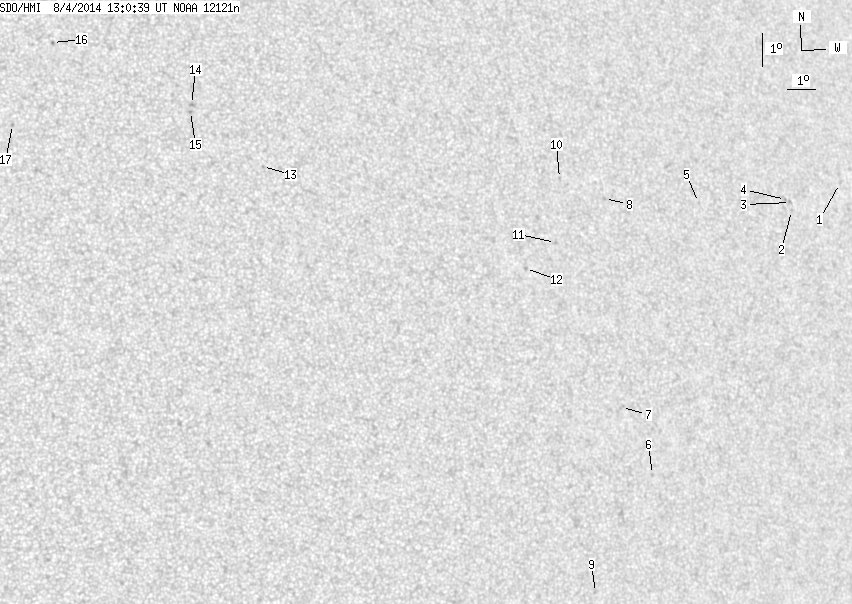

SDO HMI 2014-08-04 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.47 | 0.00 | 13.49 | 15.69 | 256.09 | 32.36 | 291.74 | 0.5542 | 390.1 | 302.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.51 | 16.44 | 268.89 | 45.16 | 287.21 | 0.7142 | -249.0 | -333.8 | |
| 0.00 | 1.09 | 0.00 | 0.74 | 15.76 | 266.57 | 42.85 | 286.69 | 0.6855 | -442.0 | -446.6 | |
| 0.00 | 1.54 | 0.00 | 1.04 | 16.01 | 266.60 | 42.87 | 287.05 | 0.6863 | -516.0 | -435.2 | |
| 0.00 | 1.18 | 0.00 | 0.80 | 16.11 | 266.41 | 42.68 | 287.24 | 0.6842 | -511.0 | -389.6 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 16.26 | 262.79 | 39.06 | 288.34 | 0.6396 | -379.0 | -346.0 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 8.09 | 259.61 | 35.88 | 275.52 | 0.5851 | 662.0 | 528.1 | |
| 0.00 | 1.81 | 0.00 | 1.09 | 10.20 | 258.68 | 34.95 | 279.24 | 0.5733 | 672.0 | 429.0 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 16.62 | 259.12 | 35.39 | 290.07 | 0.5930 | 737.0 | 608.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 4.64 | 257.21 | 33.48 | 269.32 | 0.5520 | 637.0 | 530.4 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 17.34 | 257.53 | 33.80 | 291.89 | 0.5744 | 610.0 | 486.9 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 15.38 | 256.99 | 33.26 | 288.73 | 0.5605 | 748.0 | 580.8 | |
| 0.00 | 1.63 | 0.00 | 0.96 | 14.64 | 255.74 | 32.01 | 287.89 | 0.5410 | 699.0 | 566.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 18.24 | 246.86 | 23.13 | 300.50 | 0.4349 | 641.0 | 479.0 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 20.26 | 244.68 | 20.95 | 307.00 | 0.4218 | 875.0 | 731.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 20.05 | 244.62 | 20.89 | 306.63 | 0.4191 | 944.0 | 708.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 22.37 | 240.17 | 16.44 | 317.51 | 0.3891 | 811.0 | 669.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 19.83 | 238.54 | 14.81 | 315.22 | 0.3428 | 693.0 | 534.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
