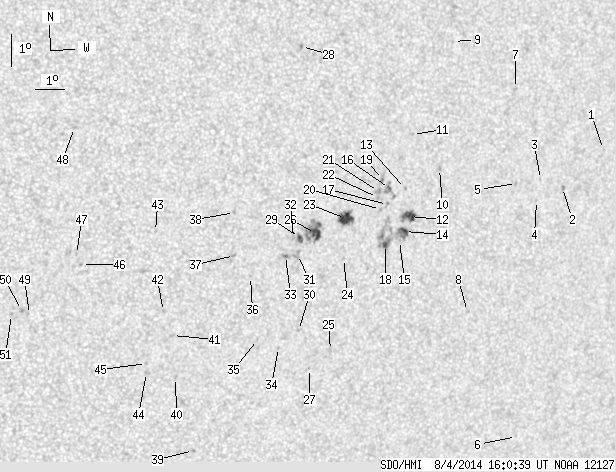

SDO HMI 2014-08-04 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.00 | 170.17 | 19.19 | 98.85 | -7.21 | 250.51 | 28.44 | 245.15 | 0.5224 | 309.2 | 312.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.58 | -5.17 | 259.66 | 37.59 | 254.16 | 0.6338 | 472.0 | 402.7 | |
| 0.00 | 1.81 | 0.00 | 1.14 | -6.25 | 258.17 | 36.10 | 251.81 | 0.6188 | 633.0 | 602.3 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -5.95 | 257.32 | 35.25 | 251.85 | 0.6063 | 570.0 | 422.3 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -6.60 | 257.22 | 35.15 | 250.78 | 0.6078 | 544.0 | 424.8 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -6.02 | 256.43 | 34.36 | 251.27 | 0.5948 | 712.0 | 590.2 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -14.07 | 257.42 | 35.35 | 239.95 | 0.6506 | 605.0 | 439.1 | |
| 0.00 | 1.81 | 0.00 | 1.10 | -3.07 | 256.23 | 34.16 | 256.00 | 0.5801 | 530.0 | 433.6 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -9.94 | 254.98 | 32.91 | 244.24 | 0.5964 | 505.0 | 470.4 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -1.49 | 253.94 | 31.87 | 257.72 | 0.5422 | 555.0 | 385.2 | |
| 0.00 | 2.08 | 0.00 | 1.24 | -5.39 | 253.58 | 31.51 | 250.69 | 0.5534 | 584.0 | 485.7 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -4.28 | 252.56 | 30.49 | 252.02 | 0.5340 | 633.0 | 477.2 | |
| 7.14 | 12.93 | 4.22 | 7.64 | -6.82 | 252.59 | 30.52 | 247.61 | 0.5475 | 886.7 | 641.8 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -5.94 | 252.40 | 30.33 | 248.99 | 0.5400 | 755.0 | 597.0 | |
| 3.26 | 12.39 | 1.92 | 7.32 | -7.28 | 252.45 | 30.38 | 246.73 | 0.5482 | 767.0 | 499.6 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -7.55 | 252.29 | 30.22 | 246.16 | 0.5476 | 184.0 | 219.9 | |
| 0.72 | 9.40 | 0.42 | 5.50 | -5.91 | 251.83 | 29.76 | 248.66 | 0.5321 | 849.1 | 642.1 | |
| 0.00 | 1.99 | 0.00 | 1.16 | -6.40 | 251.79 | 29.72 | 247.77 | 0.5343 | 667.0 | 538.2 | |
| 1.99 | 25.86 | 1.17 | 15.20 | -7.65 | 251.80 | 29.73 | 245.64 | 0.5417 | -615.0 | -151.8 | |
| 0.00 | 3.07 | 0.00 | 1.79 | -5.62 | 251.56 | 29.49 | 249.00 | 0.5269 | 944.0 | 738.6 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -6.55 | 251.55 | 29.48 | 247.35 | 0.5318 | 664.0 | 497.0 | |
| 0.00 | 3.26 | 0.00 | 1.89 | -5.98 | 251.44 | 29.37 | 248.27 | 0.5272 | 756.0 | 709.9 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -6.17 | 251.42 | 29.35 | 247.93 | 0.5279 | 810.0 | 734.6 | |
| 11.48 | 16.82 | 6.64 | 9.72 | -6.76 | 250.34 | 28.27 | 246.07 | 0.5166 | 975.9 | 663.8 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -8.01 | 250.35 | 28.28 | 243.89 | 0.5246 | 566.0 | 495.9 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -10.90 | 250.15 | 28.08 | 238.90 | 0.5419 | -730.0 | -573.0 | |
| 7.32 | 25.77 | 4.20 | 14.76 | -7.18 | 249.32 | 27.25 | 244.50 | 0.5054 | 973.1 | 745.7 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -11.44 | 249.47 | 27.40 | 237.41 | 0.5375 | -787.0 | -512.9 | |
| 0.00 | 1.99 | 0.00 | 1.11 | -1.37 | 248.63 | 26.56 | 255.29 | 0.4640 | 780.0 | 621.1 | |
| 1.09 | 4.43 | 0.62 | 2.53 | -7.28 | 248.78 | 26.71 | 243.86 | 0.4986 | 1127.4 | 927.6 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -10.21 | 248.97 | 26.90 | 238.94 | 0.5218 | -748.0 | -481.3 | |
| 0.00 | 4.88 | 0.00 | 2.79 | -7.81 | 248.75 | 26.68 | 242.88 | 0.5017 | 662.0 | 605.4 | |
| 0.00 | 1.99 | 0.00 | 1.13 | -7.27 | 248.57 | 26.50 | 243.70 | 0.4957 | 933.0 | 692.3 | |
| 0.00 | 2.35 | 0.00 | 1.34 | -7.82 | 248.33 | 26.26 | 242.49 | 0.4963 | 709.0 | 559.7 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -10.71 | 248.32 | 26.25 | 237.47 | 0.5175 | -645.0 | -523.7 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -10.42 | 247.58 | 25.51 | 237.20 | 0.5058 | -664.0 | -492.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -8.42 | 247.18 | 25.11 | 240.30 | 0.4852 | -562.0 | -439.1 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -7.73 | 246.59 | 24.52 | 240.97 | 0.4723 | 768.0 | 601.2 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -6.39 | 246.52 | 24.45 | 243.46 | 0.4616 | 789.0 | 602.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -13.88 | 245.72 | 23.65 | 229.57 | 0.5136 | -723.0 | -660.6 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -11.51 | 244.88 | 22.81 | 232.36 | 0.4817 | -684.0 | -559.6 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -10.16 | 244.67 | 22.60 | 234.42 | 0.4671 | -695.0 | -536.9 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -9.39 | 244.32 | 22.25 | 235.37 | 0.4558 | -706.0 | -581.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -6.87 | 243.91 | 21.84 | 239.74 | 0.4294 | -524.0 | -492.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -11.31 | 243.89 | 21.82 | 231.46 | 0.4679 | -730.0 | -503.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -11.02 | 243.87 | 21.80 | 231.93 | 0.4649 | -749.0 | -610.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -7.81 | 241.53 | 19.46 | 234.79 | 0.4056 | -812.0 | -669.0 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -7.49 | 241.35 | 19.28 | 235.19 | 0.4004 | -759.0 | -662.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -3.54 | 241.16 | 19.09 | 243.86 | 0.3651 | -727.0 | -672.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -9.32 | 239.91 | 17.84 | 229.37 | 0.4001 | -581.0 | -575.2 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -9.18 | 239.65 | 17.58 | 229.21 | 0.3955 | -857.0 | -762.9 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -9.30 | 239.33 | 17.26 | 228.46 | 0.3929 | -763.0 | -658.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
