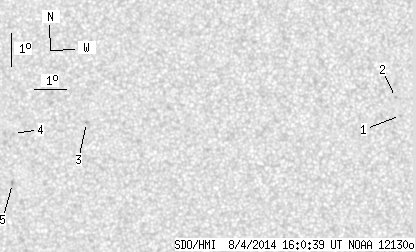

SDO HMI 2014-08-04 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.42 | 0.00 | 2.80 | 5.79 | 206.60 | -15.47 | 88.57 | 0.2662 | 106.2 | 207.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.50 | 6.63 | 214.38 | -7.69 | 84.93 | 0.1341 | -844.0 | -654.5 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 7.18 | 214.21 | -7.86 | 81.06 | 0.1379 | -965.0 | -847.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 6.21 | 204.53 | -17.54 | 88.42 | 0.3010 | 799.0 | 670.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 5.80 | 202.19 | -19.88 | 89.58 | 0.3398 | 658.0 | 471.5 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 4.28 | 202.20 | -19.87 | 94.06 | 0.3413 | 883.0 | 775.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
