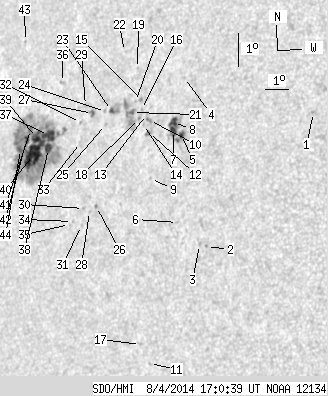

SDO HMI 2014-08-04 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.39 | 332.04 | 58.33 | 248.85 | 9.23 | 172.63 | -48.89 | 82.96 | 0.7511 | 279.9 | 145.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.09 | 10.90 | 183.01 | -38.51 | 80.03 | 0.6230 | -755.0 | -655.3 | |
| 0.00 | 0.99 | 0.00 | 0.66 | 6.55 | 179.23 | -42.29 | 86.89 | 0.6717 | -715.0 | -623.1 | |
| 0.00 | 1.63 | 0.00 | 1.09 | 6.59 | 178.94 | -42.58 | 86.81 | 0.6755 | -683.0 | -496.8 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 11.60 | 177.55 | -43.97 | 79.49 | 0.6940 | -763.0 | -647.7 | |
| 2.08 | 29.38 | 1.42 | 20.16 | 9.87 | 177.73 | -43.78 | 81.99 | 0.6907 | -970.8 | -615.6 | |
| 0.00 | 0.90 | 0.00 | 0.62 | 7.19 | 177.94 | -43.57 | 85.89 | 0.6879 | -548.0 | -470.7 | |
| 4.70 | -5.00 | 3.23 | -5.00 | 9.96 | 177.37 | -44.14 | 81.87 | 0.6952 | -876.7 | 999999 | |
| 4.97 | -5.00 | 3.42 | -5.00 | 10.21 | 177.33 | -44.19 | 81.52 | 0.6958 | -828.2 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.63 | 8.44 | 176.62 | -44.90 | 84.07 | 0.7043 | -324.0 | -313.9 | |
| 0.00 | 2.71 | 0.00 | 1.90 | 10.19 | 176.29 | -45.23 | 81.59 | 0.7086 | -593.0 | -541.9 | |
| 0.00 | 0.81 | 0.00 | 0.56 | 2.83 | 177.11 | -44.40 | 92.11 | 0.7016 | -550.0 | -505.3 | |
| 0.00 | 3.44 | 0.00 | 2.40 | 9.83 | 176.31 | -45.21 | 82.10 | 0.7083 | -768.0 | -622.5 | |
| 0.00 | 1.45 | 0.00 | 1.02 | 10.37 | 176.12 | -45.39 | 81.35 | 0.7107 | -303.0 | -289.1 | |
| 0.00 | 0.90 | 0.00 | 0.64 | 10.05 | 176.05 | -45.47 | 81.79 | 0.7115 | -316.0 | -269.2 | |
| 0.00 | 1.63 | 0.00 | 1.15 | 10.80 | 175.82 | -45.70 | 80.75 | 0.7146 | -592.0 | -524.4 | |
| 0.00 | 0.81 | 0.00 | 0.57 | 10.50 | 175.88 | -45.64 | 81.17 | 0.7137 | -397.0 | -314.9 | |
| 0.00 | 1.54 | 0.00 | 1.07 | 3.38 | 176.70 | -44.82 | 91.27 | 0.7061 | -711.0 | -486.0 | |
| 0.00 | 1.08 | 0.00 | 0.77 | 10.22 | 175.84 | -45.68 | 81.56 | 0.7141 | -359.0 | -360.3 | |
| 0.00 | 0.63 | 0.00 | 0.45 | 11.73 | 175.45 | -46.07 | 79.48 | 0.7195 | -427.0 | -368.6 | |
| 0.00 | 0.72 | 0.00 | 0.51 | 10.72 | 175.57 | -45.95 | 80.87 | 0.7175 | -337.0 | -275.8 | |
| 0.99 | 21.97 | 0.71 | 15.62 | 10.38 | 175.50 | -46.02 | 81.35 | 0.7182 | -347.0 | 126.2 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 12.20 | 174.76 | -46.76 | 78.87 | 0.7280 | -353.0 | -298.5 | |
| 1.54 | 9.58 | 1.11 | 6.90 | 10.37 | 174.55 | -46.96 | 81.40 | 0.7294 | 871.2 | 543.1 | |
| 0.00 | 1.45 | 0.00 | 1.05 | 10.32 | 174.29 | -47.23 | 81.48 | 0.7325 | 480.0 | 466.6 | |
| 0.00 | 1.18 | 0.00 | 0.85 | 9.93 | 174.36 | -47.15 | 82.02 | 0.7315 | 544.0 | 447.3 | |
| 0.00 | 1.45 | 0.00 | 1.05 | 7.42 | 174.36 | -47.15 | 85.46 | 0.7316 | 334.0 | 361.6 | |
| 0.99 | 2.71 | 0.73 | 1.99 | 10.22 | 173.71 | -47.81 | 81.64 | 0.7392 | 808.3 | 644.5 | |
| 0.00 | 0.81 | 0.00 | 0.59 | 7.24 | 174.07 | -47.45 | 85.69 | 0.7351 | 675.0 | 536.8 | |
| 0.00 | 1.27 | 0.00 | 0.93 | 10.43 | 173.34 | -48.17 | 81.36 | 0.7435 | 614.0 | 517.6 | |
| 0.00 | 1.27 | 0.00 | 0.93 | 7.31 | 173.79 | -47.73 | 85.59 | 0.7384 | 589.0 | 452.9 | |
| 0.00 | 1.18 | 0.00 | 0.86 | 6.79 | 173.77 | -47.75 | 86.29 | 0.7389 | 615.0 | 469.5 | |
| 0.00 | 0.99 | 0.00 | 0.74 | 9.90 | 173.22 | -48.30 | 82.08 | 0.7449 | 653.0 | 604.1 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 9.30 | 173.33 | -48.19 | 82.89 | 0.7435 | 534.0 | 581.0 | |
| 0.00 | 0.72 | 0.00 | 0.53 | 6.88 | 173.34 | -48.18 | 86.15 | 0.7438 | 587.0 | 538.6 | |
| 0.00 | 0.81 | 0.00 | 0.60 | 6.78 | 173.21 | -48.30 | 86.28 | 0.7453 | 498.0 | 428.4 | |
| 0.00 | 2.26 | 0.00 | 1.71 | 11.05 | 172.12 | -49.39 | 80.58 | 0.7576 | 697.0 | 571.2 | |
| 10.40 | 230.81 | 7.90 | 177.50 | 9.39 | 171.80 | -49.71 | 82.77 | 0.7609 | 876.3 | 246.8 | |
| 5.42 | -37.00 | 4.12 | -37.00 | 9.00 | 171.88 | -49.64 | 83.29 | 0.7601 | 906.5 | 999999 | |
| 7.78 | -37.00 | 5.98 | -37.00 | 9.29 | 171.24 | -50.27 | 82.91 | 0.7671 | 676.5 | 999999 | |
| 30.47 | -37.00 | 23.45 | -37.00 | 8.76 | 171.20 | -50.32 | 83.59 | 0.7676 | 740.7 | 999999 | |
| 1.72 | -37.00 | 1.33 | -37.00 | 9.51 | 170.91 | -50.61 | 82.62 | 0.7708 | 567.5 | 999999 | |
| 2.98 | -37.00 | 2.32 | -37.00 | 9.19 | 170.78 | -50.74 | 83.04 | 0.7723 | 448.9 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.57 | 12.15 | 170.04 | -51.48 | 79.23 | 0.7808 | 432.0 | 381.0 | |
| 3.35 | -37.00 | 2.61 | -37.00 | 8.87 | 170.55 | -50.97 | 83.46 | 0.7748 | -341.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
