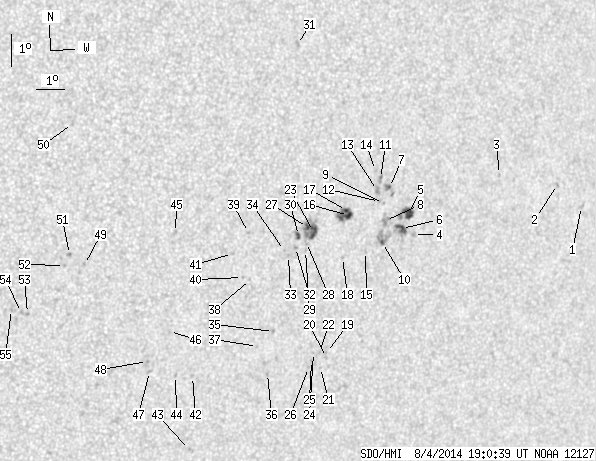

SDO HMI 2014-08-04 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.93 | 162.46 | 17.13 | 95.57 | -7.43 | 250.01 | 29.61 | 245.64 | 0.5395 | 116.6 | 215.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 1.42 | -7.02 | 259.28 | 38.87 | 251.98 | 0.6573 | 577.0 | 506.8 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -6.27 | 258.27 | 37.86 | 252.62 | 0.6415 | 661.0 | 565.5 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -5.81 | 256.02 | 35.61 | 252.24 | 0.6105 | 691.0 | 544.8 | |
| 0.00 | 2.62 | 0.00 | 1.59 | -7.49 | 252.96 | 32.55 | 247.84 | 0.5782 | 566.0 | 377.2 | |
| 7.14 | 13.47 | 4.30 | 8.11 | -6.82 | 252.73 | 32.32 | 248.77 | 0.5716 | 871.8 | 713.1 | |
| 4.43 | 10.94 | 2.67 | 6.59 | -7.27 | 252.51 | 32.10 | 247.89 | 0.5711 | 708.2 | 393.2 | |
| 0.99 | 6.60 | 0.59 | 3.93 | -5.97 | 251.98 | 31.57 | 249.73 | 0.5573 | 797.7 | 612.9 | |
| 0.00 | 7.77 | 0.00 | 4.65 | -6.99 | 251.91 | 31.50 | 247.97 | 0.5616 | -329.0 | -3.7 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -6.45 | 251.80 | 31.39 | 248.79 | 0.5573 | 648.0 | 589.4 | |
| 1.27 | 15.37 | 0.76 | 9.20 | -7.67 | 251.85 | 31.44 | 246.80 | 0.5646 | -760.9 | -251.6 | |
| 0.00 | 3.43 | 0.00 | 2.04 | -5.67 | 251.64 | 31.23 | 250.02 | 0.5511 | 859.0 | 706.8 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -6.38 | 251.65 | 31.24 | 248.81 | 0.5549 | 721.0 | 548.8 | |
| 0.00 | 4.52 | 0.00 | 2.68 | -6.04 | 251.55 | 31.15 | 249.34 | 0.5518 | 932.0 | 739.0 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -5.41 | 251.45 | 31.04 | 250.35 | 0.5472 | 676.0 | 659.6 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -7.92 | 251.26 | 30.85 | 245.99 | 0.5582 | -502.0 | -409.6 | |
| 3.25 | 16.09 | 1.92 | 9.46 | -6.76 | 250.57 | 30.16 | 247.45 | 0.5423 | 850.9 | 825.7 | |
| 1.27 | -16.00 | 0.74 | -16.00 | -6.60 | 250.49 | 30.08 | 247.67 | 0.5403 | 1007.4 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -8.06 | 250.45 | 30.05 | 245.16 | 0.5484 | 737.0 | 609.0 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -11.04 | 250.17 | 29.76 | 240.12 | 0.5640 | -651.0 | -469.5 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -11.20 | 250.19 | 29.78 | 239.89 | 0.5654 | -489.0 | -358.4 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -11.51 | 250.01 | 29.60 | 239.26 | 0.5653 | -482.0 | -368.5 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -11.03 | 249.92 | 29.51 | 239.93 | 0.5608 | -717.0 | -555.6 | |
| 6.51 | 22.60 | 3.79 | 13.15 | -7.19 | 249.36 | 28.96 | 245.82 | 0.5286 | 875.8 | 756.3 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -11.02 | 249.70 | 29.30 | 239.77 | 0.5580 | -658.0 | -533.8 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -11.27 | 249.66 | 29.25 | 239.34 | 0.5593 | -755.0 | -635.0 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -11.49 | 249.58 | 29.17 | 238.92 | 0.5598 | -775.0 | -586.1 | |
| 2.26 | -23.00 | 1.31 | -23.00 | -7.06 | 249.14 | 28.74 | 245.89 | 0.5248 | 1109.2 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.11 | -7.52 | 249.14 | 28.73 | 245.08 | 0.5276 | 559.0 | 561.8 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -7.77 | 249.12 | 28.72 | 244.63 | 0.5289 | 527.0 | 470.8 | |
| 1.81 | 3.62 | 1.05 | 2.10 | -7.29 | 248.85 | 28.44 | 245.25 | 0.5222 | 1054.9 | 861.3 | |
| 0.00 | 2.89 | 0.00 | 1.64 | -1.37 | 248.57 | 28.17 | 256.15 | 0.4880 | 705.0 | 636.4 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -7.66 | 248.77 | 28.36 | 244.54 | 0.5234 | 860.0 | 680.6 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -7.90 | 248.54 | 28.13 | 243.94 | 0.5219 | 858.0 | 712.2 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -7.73 | 248.39 | 27.98 | 244.11 | 0.5188 | 720.0 | 574.1 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -10.27 | 248.22 | 27.81 | 239.66 | 0.5340 | -726.0 | -541.3 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -11.60 | 248.14 | 27.73 | 237.45 | 0.5429 | -685.0 | -532.8 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -10.72 | 247.70 | 27.29 | 238.45 | 0.5308 | -789.0 | -646.1 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -8.59 | 247.27 | 26.87 | 241.65 | 0.5097 | -651.0 | -458.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -7.11 | 247.10 | 26.70 | 244.14 | 0.4974 | 774.0 | 606.0 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -8.51 | 246.99 | 26.58 | 241.53 | 0.5055 | -377.0 | -331.4 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -7.74 | 246.59 | 26.19 | 242.54 | 0.4948 | 615.0 | 442.4 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -11.57 | 245.53 | 25.13 | 234.89 | 0.5106 | -590.0 | -461.9 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -13.91 | 245.68 | 25.27 | 231.36 | 0.5326 | -715.0 | -540.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -11.51 | 244.95 | 24.54 | 234.34 | 0.5029 | -751.0 | -612.0 | |
| 0.00 | 2.62 | 0.00 | 1.46 | -6.99 | 244.62 | 24.21 | 242.04 | 0.4627 | -705.0 | -482.2 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -10.10 | 244.62 | 24.21 | 236.37 | 0.4869 | -472.0 | -522.6 | |
| 0.00 | 2.08 | 0.00 | 1.18 | -11.34 | 244.05 | 23.64 | 233.60 | 0.4904 | -763.0 | -581.0 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -11.02 | 243.95 | 23.54 | 234.03 | 0.4864 | -779.0 | -593.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -7.86 | 241.63 | 21.23 | 237.00 | 0.4295 | -827.0 | -651.5 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -3.46 | 241.08 | 20.67 | 245.83 | 0.3878 | -683.0 | -579.9 | |
| 0.00 | 1.99 | 0.00 | 1.08 | -7.53 | 241.12 | 20.72 | 237.01 | 0.4198 | -902.0 | -727.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -7.87 | 240.98 | 20.57 | 236.15 | 0.4208 | -851.0 | -688.9 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -9.33 | 239.84 | 19.44 | 231.75 | 0.4199 | -748.0 | -639.9 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -9.29 | 239.65 | 19.24 | 231.53 | 0.4171 | -986.0 | -737.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -9.18 | 239.31 | 18.91 | 231.25 | 0.4119 | -759.0 | -548.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
