SDO HMI 2014-08-04 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.88 | 348.03 | 48.51 | 254.57 | 9.31 | 172.85 | -47.55 | 82.85 | 0.7356 | 231.5 | 133.4 | |
|
previous
or next observation for the same group /

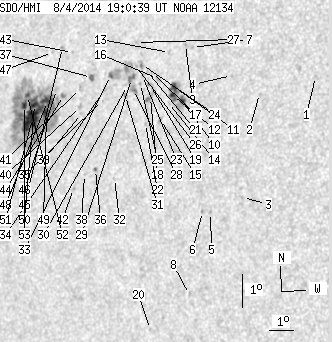

back to the solar disc SDO HMI 2014-08-04 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.73 | 10.94 | 182.96 | -37.45 | 79.85 | 0.6087 | -673.0 | -507.5 | |
| 0.00 | 1.27 | 0.00 | 0.81 | 10.28 | 180.84 | -39.57 | 81.12 | 0.6367 | -461.0 | -422.4 | |
| 0.00 | 1.63 | 0.00 | 1.05 | 7.08 | 180.56 | -39.85 | 86.16 | 0.6396 | -572.0 | -523.3 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 10.75 | 179.63 | -40.78 | 80.49 | 0.6529 | -632.0 | -481.0 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 6.54 | 179.32 | -41.09 | 86.96 | 0.6561 | -686.0 | -504.5 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 6.55 | 178.99 | -41.42 | 86.93 | 0.6604 | -697.0 | -594.4 | |
| 0.00 | 1.08 | 0.00 | 0.73 | 11.49 | 177.87 | -42.53 | 79.53 | 0.6760 | -591.0 | -478.4 | |
| 0.00 | 1.45 | 0.00 | 0.96 | 4.00 | 178.66 | -41.74 | 90.76 | 0.6665 | -555.0 | -400.2 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 11.57 | 177.56 | -42.84 | 79.46 | 0.6799 | -795.0 | -674.7 | |
| 2.17 | 9.76 | 1.46 | 6.56 | 9.83 | 177.74 | -42.67 | 82.01 | 0.6766 | -939.9 | -617.7 | |
| 4.34 | 16.54 | 2.93 | 11.17 | 10.23 | 177.34 | -43.07 | 81.44 | 0.6819 | -814.0 | -677.2 | |
| 2.98 | -11.00 | 2.02 | -11.00 | 9.98 | 177.29 | -43.12 | 81.81 | 0.6824 | -884.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 11.28 | 176.94 | -43.47 | 79.94 | 0.6875 | -366.0 | -381.3 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 9.76 | 177.16 | -43.25 | 82.14 | 0.6840 | -534.0 | -438.0 | |
| 0.00 | 1.81 | 0.00 | 1.23 | 9.22 | 176.90 | -43.51 | 82.94 | 0.6870 | -453.0 | -352.8 | |
| 0.00 | 2.44 | 0.00 | 1.67 | 10.45 | 176.57 | -43.84 | 81.16 | 0.6916 | -535.0 | -467.4 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 10.62 | 176.28 | -44.12 | 80.94 | 0.6952 | -396.0 | -326.4 | |
| 0.00 | 5.06 | 0.00 | 3.47 | 9.85 | 176.37 | -44.04 | 82.03 | 0.6938 | -742.0 | -598.8 | |
| 0.00 | 2.71 | 0.00 | 1.86 | 10.22 | 176.31 | -44.10 | 81.51 | 0.6947 | -528.0 | -553.5 | |
| 0.00 | 0.90 | 0.00 | 0.62 | 2.82 | 177.11 | -43.30 | 92.29 | 0.6878 | -631.0 | -511.4 | |
| 0.00 | 0.99 | 0.00 | 0.69 | 10.63 | 176.11 | -44.30 | 80.92 | 0.6974 | -471.0 | -418.9 | |
| 0.00 | 1.18 | 0.00 | 0.81 | 9.05 | 176.28 | -44.12 | 83.19 | 0.6947 | -459.0 | -328.7 | |
| 0.00 | 1.36 | 0.00 | 0.94 | 10.50 | 175.91 | -44.49 | 81.13 | 0.6997 | -446.0 | -339.5 | |
| 0.00 | 3.43 | 0.00 | 2.38 | 10.83 | 175.81 | -44.60 | 80.66 | 0.7012 | -627.0 | -452.3 | |
| 0.00 | 1.18 | 0.00 | 0.81 | 10.25 | 175.87 | -44.54 | 81.49 | 0.7002 | -460.0 | -402.8 | |
| 0.00 | 0.81 | 0.00 | 0.57 | 10.75 | 175.60 | -44.80 | 80.78 | 0.7036 | -386.0 | -301.7 | |
| 0.00 | 1.18 | 0.00 | 0.82 | 11.48 | 175.46 | -44.94 | 79.76 | 0.7058 | -500.0 | -392.4 | |
| 0.00 | 5.51 | 0.00 | 3.83 | 10.04 | 175.60 | -44.81 | 81.79 | 0.7034 | 300.0 | 37.5 | |
| 1.99 | 15.64 | 1.39 | 10.92 | 10.37 | 175.46 | -44.95 | 81.33 | 0.7053 | -57.5 | 126.6 | |
| 0.00 | 0.81 | 0.00 | 0.57 | 10.15 | 175.32 | -45.09 | 81.66 | 0.7069 | 95.0 | 107.0 | |
| 0.00 | 2.35 | 0.00 | 1.64 | 9.84 | 175.29 | -45.12 | 82.10 | 0.7072 | -295.0 | -163.0 | |
| 0.00 | 0.81 | 0.00 | 0.57 | 7.29 | 175.19 | -45.22 | 85.71 | 0.7083 | -254.0 | -239.0 | |
| 1.36 | 10.40 | 0.96 | 7.33 | 10.40 | 174.52 | -45.88 | 81.34 | 0.7166 | 935.7 | 577.0 | |
| 0.00 | 1.36 | 0.00 | 0.96 | 9.95 | 174.34 | -46.07 | 81.96 | 0.7187 | 776.0 | 598.9 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 9.61 | 174.31 | -46.10 | 82.44 | 0.7190 | 615.0 | 565.0 | |
| 0.54 | 1.27 | 0.39 | 0.90 | 7.50 | 174.32 | -46.08 | 85.38 | 0.7188 | 497.0 | 431.4 | |
| 1.90 | 3.53 | 1.36 | 2.53 | 10.27 | 173.69 | -46.71 | 81.54 | 0.7265 | 812.4 | 659.2 | |
| 0.00 | 0.90 | 0.00 | 0.65 | 7.31 | 173.86 | -46.55 | 85.63 | 0.7244 | 531.0 | 421.2 | |
| 0.00 | 1.18 | 0.00 | 0.85 | 9.15 | 173.44 | -46.96 | 83.09 | 0.7292 | 310.0 | 349.2 | |
| 0.00 | 2.44 | 0.00 | 1.76 | 9.36 | 173.36 | -47.05 | 82.81 | 0.7302 | 727.0 | 562.9 | |
| 0.00 | 2.89 | 0.00 | 2.09 | 9.90 | 173.26 | -47.14 | 82.06 | 0.7314 | 703.0 | 575.2 | |
| 0.00 | 1.08 | 0.00 | 0.78 | 6.85 | 173.42 | -46.98 | 86.25 | 0.7298 | 664.0 | 552.6 | |
| 0.00 | 0.81 | 0.00 | 0.60 | 10.96 | 172.68 | -47.72 | 80.63 | 0.7385 | 626.0 | 577.3 | |
| 0.72 | 2.62 | 0.53 | 1.92 | 9.63 | 172.53 | -47.87 | 82.44 | 0.7399 | 778.5 | 666.7 | |
| 0.00 | 1.45 | 0.00 | 1.07 | 11.08 | 172.19 | -48.21 | 80.50 | 0.7442 | 643.0 | 576.9 | |
| 0.00 | 2.08 | 0.00 | 1.54 | 9.79 | 172.18 | -48.23 | 82.24 | 0.7440 | 302.0 | 315.1 | |
| 0.00 | 0.90 | 0.00 | 0.67 | 10.89 | 171.77 | -48.64 | 80.76 | 0.7490 | 576.0 | 469.9 | |
| 7.86 | 225.99 | 5.85 | 170.11 | 9.40 | 171.83 | -48.57 | 82.77 | 0.7480 | 919.6 | 259.5 | |
| 5.33 | -48.00 | 3.97 | -48.00 | 9.03 | 171.85 | -48.55 | 83.26 | 0.7477 | 936.7 | 999999 | |
| 5.33 | -48.00 | 4.01 | -48.00 | 9.26 | 171.25 | -49.16 | 82.96 | 0.7546 | 708.5 | 999999 | |
| 26.21 | -48.00 | 19.73 | -48.00 | 8.83 | 171.23 | -49.18 | 83.53 | 0.7548 | 808.3 | 999999 | |
| 1.81 | -48.00 | 1.37 | -48.00 | 9.50 | 170.87 | -49.54 | 82.63 | 0.7589 | 535.6 | 999999 | |
| 3.34 | -48.00 | 2.54 | -48.00 | 9.19 | 170.78 | -49.62 | 83.05 | 0.7599 | 497.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
