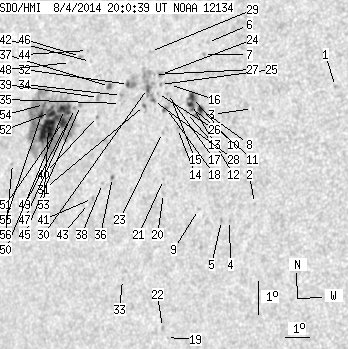

SDO HMI 2014-08-04 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.27 | 338.44 | 56.40 | 245.54 | 9.27 | 172.73 | -47.12 | 82.91 | 0.7306 | 276.7 | 139.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.78 | 10.92 | 182.99 | -36.86 | 79.82 | 0.6006 | -755.0 | -650.1 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 7.17 | 180.28 | -39.58 | 86.04 | 0.6359 | -483.0 | -386.6 | |
| 0.00 | 0.72 | 0.00 | 0.47 | 10.04 | 179.84 | -40.02 | 81.54 | 0.6424 | -627.0 | -412.9 | |
| 0.00 | 0.99 | 0.00 | 0.65 | 6.59 | 179.33 | -40.52 | 86.92 | 0.6487 | -669.0 | -479.6 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 6.56 | 179.01 | -40.84 | 86.94 | 0.6529 | -560.0 | -510.8 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 11.92 | 177.66 | -42.19 | 78.87 | 0.6720 | -681.0 | -576.7 | |
| 0.00 | 1.36 | 0.00 | 0.91 | 11.55 | 177.57 | -42.29 | 79.44 | 0.6729 | -787.0 | -687.1 | |
| 2.89 | 8.14 | 1.92 | 5.42 | 9.87 | 177.73 | -42.13 | 81.93 | 0.6697 | -965.0 | -640.5 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 6.83 | 178.04 | -41.81 | 86.49 | 0.6655 | -590.0 | -411.7 | |
| 3.34 | 13.56 | 2.24 | 9.08 | 10.21 | 177.34 | -42.52 | 81.44 | 0.6749 | -887.2 | -724.0 | |
| 0.27 | -10.00 | 0.18 | -10.00 | 9.88 | 177.39 | -42.46 | 81.94 | 0.6740 | -868.3 | 999999 | |
| 2.62 | -10.00 | 1.76 | -10.00 | 10.00 | 177.33 | -42.52 | 81.76 | 0.6749 | -941.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.67 | 9.74 | 177.16 | -42.69 | 82.15 | 0.6769 | -586.0 | -470.1 | |
| 0.00 | 1.36 | 0.00 | 0.91 | 9.23 | 176.86 | -42.99 | 82.92 | 0.6806 | -583.0 | -439.5 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 10.18 | 176.41 | -43.44 | 81.54 | 0.6866 | -610.0 | -531.7 | |
| 0.00 | 0.63 | 0.00 | 0.43 | 10.54 | 176.30 | -43.55 | 81.02 | 0.6880 | -562.0 | -422.6 | |
| 0.00 | 0.90 | 0.00 | 0.62 | 10.26 | 176.27 | -43.59 | 81.43 | 0.6884 | -581.0 | -518.5 | |
| 0.00 | 4.61 | 0.00 | 3.14 | 9.80 | 176.30 | -43.55 | 82.10 | 0.6878 | -766.0 | -619.0 | |
| 0.00 | 0.36 | 0.00 | 0.24 | 2.86 | 177.01 | -42.84 | 92.31 | 0.6819 | -495.0 | -458.2 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 7.22 | 176.54 | -43.32 | 85.87 | 0.6847 | -211.0 | -301.1 | |
| 0.00 | 0.63 | 0.00 | 0.43 | 7.64 | 176.48 | -43.37 | 85.25 | 0.6852 | -366.0 | -332.3 | |
| 0.00 | 1.54 | 0.00 | 1.04 | 3.15 | 176.83 | -43.02 | 91.85 | 0.6839 | -663.0 | -527.2 | |
| 0.00 | 1.08 | 0.00 | 0.74 | 9.06 | 176.25 | -43.61 | 83.18 | 0.6882 | -427.0 | -380.0 | |
| 0.00 | 2.80 | 0.00 | 1.92 | 10.81 | 175.87 | -43.98 | 80.65 | 0.6936 | -684.0 | -539.0 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 10.51 | 175.92 | -43.93 | 81.08 | 0.6928 | -498.0 | -390.0 | |
| 0.00 | 0.63 | 0.00 | 0.43 | 10.23 | 175.84 | -44.01 | 81.50 | 0.6936 | -451.0 | -368.4 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 10.80 | 175.61 | -44.24 | 80.69 | 0.6968 | -395.0 | -256.0 | |
| 0.81 | 26.03 | 0.56 | 17.99 | 10.00 | 175.71 | -44.14 | 81.83 | 0.6952 | -400.9 | 73.1 | |
| 0.00 | 1.54 | 0.00 | 1.06 | 11.48 | 175.31 | -44.55 | 79.73 | 0.7009 | -387.0 | -352.4 | |
| 2.08 | -28.00 | 1.44 | -28.00 | 10.35 | 175.39 | -44.46 | 81.34 | 0.6993 | 131.1 | 999999 | |
| 0.54 | 3.07 | 0.37 | 2.12 | 9.83 | 175.35 | -44.50 | 82.10 | 0.6996 | -267.0 | -244.4 | |
| 1.36 | 10.40 | 0.95 | 7.27 | 10.41 | 174.55 | -45.31 | 81.30 | 0.7096 | 883.2 | 575.9 | |
| 0.00 | 0.90 | 0.00 | 0.63 | 4.49 | 175.05 | -44.80 | 89.72 | 0.7048 | -448.0 | -352.7 | |
| 0.00 | 1.36 | 0.00 | 0.95 | 10.06 | 174.30 | -45.55 | 81.81 | 0.7125 | 857.0 | 744.6 | |
| 0.00 | 0.36 | 0.00 | 0.25 | 9.81 | 174.30 | -45.55 | 82.15 | 0.7124 | 660.0 | 681.2 | |
| 0.63 | 1.54 | 0.45 | 1.08 | 7.55 | 174.30 | -45.56 | 85.34 | 0.7124 | 534.0 | 486.3 | |
| 1.45 | 2.98 | 1.03 | 2.12 | 10.29 | 173.72 | -46.13 | 81.50 | 0.7195 | 828.2 | 710.9 | |
| 0.00 | 0.99 | 0.00 | 0.70 | 7.33 | 173.88 | -45.97 | 85.63 | 0.7175 | 657.0 | 510.6 | |
| 0.00 | 2.89 | 0.00 | 2.07 | 9.92 | 173.30 | -46.56 | 82.03 | 0.7245 | 703.0 | 573.8 | |
| 0.00 | 1.27 | 0.00 | 0.91 | 9.34 | 173.36 | -46.50 | 82.83 | 0.7237 | 692.0 | 613.2 | |
| 0.00 | 0.99 | 0.00 | 0.71 | 6.84 | 173.50 | -46.35 | 86.30 | 0.7222 | 682.0 | 574.1 | |
| 0.00 | 1.18 | 0.00 | 0.85 | 10.98 | 172.73 | -47.13 | 80.59 | 0.7315 | 619.0 | 475.4 | |
| 0.00 | 0.54 | 0.00 | 0.39 | 6.68 | 173.34 | -46.51 | 86.52 | 0.7242 | 416.0 | 371.2 | |
| 0.00 | 0.90 | 0.00 | 0.66 | 11.31 | 172.52 | -47.33 | 80.15 | 0.7341 | 609.0 | 531.5 | |
| 0.00 | 1.54 | 0.00 | 1.12 | 9.62 | 172.54 | -47.32 | 82.46 | 0.7334 | 806.0 | 741.2 | |
| 0.00 | 1.18 | 0.00 | 0.86 | 11.10 | 172.24 | -47.61 | 80.45 | 0.7372 | 699.0 | 614.5 | |
| 0.00 | 1.18 | 0.00 | 0.86 | 9.51 | 172.28 | -47.57 | 82.62 | 0.7364 | 825.0 | 718.7 | |
| 0.00 | 1.08 | 0.00 | 0.80 | 10.88 | 171.82 | -48.03 | 80.76 | 0.7420 | 672.0 | 537.2 | |
| 0.90 | 224.81 | 0.66 | 167.35 | 9.19 | 172.11 | -47.74 | 83.05 | 0.7383 | 663.4 | 243.7 | |
| 10.12 | -49.00 | 7.45 | -49.00 | 9.44 | 171.83 | -48.02 | 82.71 | 0.7416 | 911.6 | 999999 | |
| 6.51 | -49.00 | 4.79 | -49.00 | 9.04 | 171.81 | -48.04 | 83.25 | 0.7418 | 973.2 | 999999 | |
| 7.68 | -49.00 | 5.72 | -49.00 | 9.30 | 171.21 | -48.65 | 82.90 | 0.7488 | 713.9 | 999999 | |
| 31.91 | -49.00 | 23.76 | -49.00 | 8.81 | 171.20 | -48.65 | 83.56 | 0.7488 | 785.8 | 999999 | |
| 1.18 | -49.00 | 0.88 | -49.00 | 9.52 | 170.88 | -48.97 | 82.61 | 0.7525 | 549.1 | 999999 | |
| 2.98 | -49.00 | 2.24 | -49.00 | 9.21 | 170.80 | -49.05 | 83.03 | 0.7534 | 523.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.04 | 7.62 | 169.69 | -50.16 | 85.11 | 0.7661 | 353.0 | 333.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
