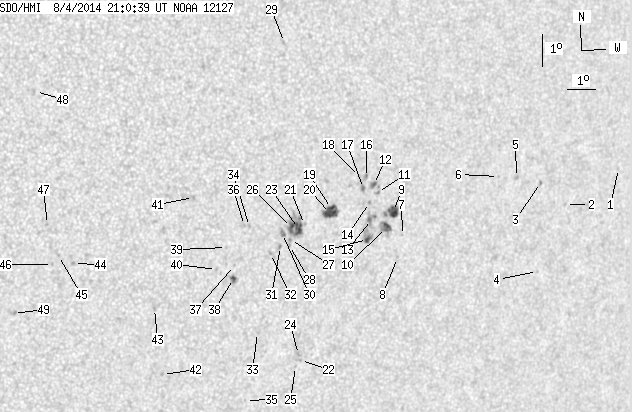

SDO HMI 2014-08-04 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.52 | 146.85 | 23.03 | 87.66 | -7.20 | 250.38 | 31.08 | 247.10 | 0.5574 | 377.5 | 282.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.43 | -6.07 | 261.48 | 42.18 | 254.71 | 0.6945 | 448.0 | 392.0 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -7.04 | 259.41 | 40.11 | 252.50 | 0.6728 | 532.0 | 503.3 | |
| 0.00 | 1.63 | 0.00 | 1.07 | -6.28 | 258.34 | 39.04 | 253.12 | 0.6566 | 507.0 | 451.5 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -9.07 | 258.53 | 39.23 | 249.20 | 0.6703 | 576.0 | 515.4 | |
| 0.00 | 1.81 | 0.00 | 1.17 | -6.06 | 257.38 | 38.08 | 253.02 | 0.6436 | 592.0 | 513.7 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -5.98 | 256.68 | 37.38 | 252.82 | 0.6342 | 610.0 | 533.8 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -7.59 | 253.19 | 33.89 | 248.48 | 0.5963 | 508.0 | 427.2 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -8.27 | 253.06 | 33.77 | 247.34 | 0.5982 | 455.0 | 337.4 | |
| 7.50 | 13.47 | 4.58 | 8.22 | -6.82 | 252.79 | 33.49 | 249.47 | 0.5872 | 838.4 | 675.3 | |
| 4.25 | 11.84 | 2.59 | 7.23 | -7.31 | 252.57 | 33.27 | 248.56 | 0.5868 | 712.5 | 501.5 | |
| 0.00 | 1.90 | 0.00 | 1.15 | -6.19 | 252.16 | 32.86 | 250.12 | 0.5757 | 476.0 | 464.4 | |
| 1.27 | 5.24 | 0.76 | 3.16 | -5.93 | 251.99 | 32.69 | 250.45 | 0.5723 | 786.9 | 591.1 | |
| 0.00 | 9.58 | 0.00 | 5.80 | -7.02 | 252.00 | 32.70 | 248.67 | 0.5778 | -296.0 | 1.3 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -6.49 | 251.89 | 32.59 | 249.47 | 0.5736 | 643.0 | 549.9 | |
| 2.17 | 9.31 | 1.32 | 5.65 | -7.64 | 251.90 | 32.60 | 247.61 | 0.5798 | -623.5 | -431.9 | |
| 0.00 | 2.17 | 0.00 | 1.30 | -5.70 | 251.72 | 32.43 | 250.67 | 0.5676 | 787.0 | 711.0 | |
| 0.00 | 2.98 | 0.00 | 1.79 | -6.04 | 251.64 | 32.34 | 250.06 | 0.5680 | 867.0 | 803.8 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -5.65 | 251.47 | 32.17 | 250.60 | 0.5639 | 673.0 | 607.5 | |
| 2.98 | 14.73 | 1.77 | 8.77 | -6.59 | 250.52 | 31.22 | 248.43 | 0.5558 | 948.5 | 655.9 | |
| 8.05 | -19.00 | 4.79 | -19.00 | -6.75 | 250.50 | 31.20 | 248.16 | 0.5563 | 905.0 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.28 | -7.04 | 249.59 | 30.29 | 247.05 | 0.5457 | 429.0 | 368.5 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -11.33 | 249.85 | 30.55 | 240.30 | 0.5759 | -656.0 | -562.7 | |
| 7.05 | 26.94 | 4.15 | 15.85 | -7.15 | 249.38 | 30.08 | 246.71 | 0.5436 | 858.1 | 607.8 | |
| 0.00 | 2.08 | 0.00 | 1.25 | -11.14 | 249.76 | 30.46 | 240.53 | 0.5734 | -879.0 | -618.6 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -11.52 | 249.69 | 30.39 | 239.90 | 0.5752 | -587.0 | -469.8 | |
| 3.62 | -23.00 | 2.13 | -23.00 | -7.11 | 249.13 | 29.83 | 246.60 | 0.5400 | 1071.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -7.48 | 249.12 | 29.83 | 245.96 | 0.5420 | 723.0 | 599.3 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -7.67 | 249.10 | 29.80 | 245.63 | 0.5429 | 715.0 | 598.5 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -1.37 | 248.65 | 29.35 | 256.75 | 0.5054 | 556.0 | 531.1 | |
| 0.00 | 3.71 | 0.00 | 2.17 | -7.28 | 248.83 | 29.53 | 246.09 | 0.5369 | 1183.0 | 943.0 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -7.68 | 248.79 | 29.49 | 245.37 | 0.5387 | 786.0 | 626.1 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -7.88 | 248.45 | 29.15 | 244.77 | 0.5355 | 846.0 | 658.7 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -10.36 | 248.21 | 28.91 | 240.48 | 0.5486 | -459.0 | -309.6 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -7.00 | 247.65 | 28.35 | 245.68 | 0.5193 | 667.0 | 604.5 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -12.51 | 248.02 | 28.72 | 236.94 | 0.5619 | -725.0 | -598.7 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -6.96 | 247.47 | 28.17 | 245.61 | 0.5166 | 793.0 | 672.4 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -8.19 | 247.21 | 27.91 | 243.23 | 0.5210 | 503.0 | 394.8 | |
| 1.63 | 3.62 | 0.94 | 2.10 | -8.60 | 247.21 | 27.91 | 242.53 | 0.5237 | -829.4 | -630.1 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -7.61 | 246.89 | 27.59 | 243.98 | 0.5129 | 424.0 | 354.1 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -8.29 | 246.59 | 27.29 | 242.54 | 0.5134 | 786.0 | 537.3 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -5.99 | 245.66 | 26.36 | 245.90 | 0.4857 | 778.0 | 568.2 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -11.52 | 245.01 | 25.71 | 235.56 | 0.5175 | -769.0 | -601.5 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -9.41 | 244.55 | 25.25 | 238.64 | 0.4948 | -776.0 | -677.5 | |
| 0.00 | 1.90 | 0.00 | 1.05 | -7.87 | 241.72 | 22.42 | 238.39 | 0.4455 | -777.0 | -520.7 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -7.60 | 241.21 | 21.91 | 238.32 | 0.4364 | -873.0 | -676.4 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -7.87 | 241.02 | 21.73 | 237.56 | 0.4362 | -771.0 | -602.7 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -6.62 | 240.80 | 21.50 | 239.81 | 0.4229 | -795.0 | -637.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -2.48 | 240.28 | 20.98 | 248.46 | 0.3862 | -543.0 | -535.8 | |
| 0.00 | 2.80 | 0.00 | 1.54 | -9.36 | 239.82 | 20.52 | 233.18 | 0.4339 | -701.0 | -588.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
