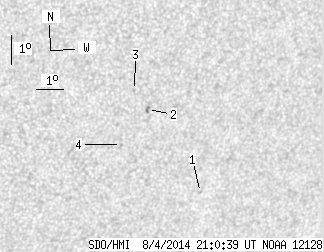

SDO HMI 2014-08-04 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.41 | 0.00 | 3.40 | -19.78 | 247.51 | 28.21 | 226.39 | 0.6163 | 651.0 | 566.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.65 | -22.06 | 249.86 | 30.56 | 225.85 | 0.6590 | 595.0 | 454.4 | |
| 0.00 | 2.35 | 0.00 | 1.46 | -19.10 | 247.26 | 27.96 | 227.00 | 0.6081 | 834.0 | 699.2 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -18.44 | 246.67 | 27.37 | 227.26 | 0.5961 | 573.0 | 446.9 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -20.24 | 246.53 | 27.23 | 224.83 | 0.6111 | 602.0 | 496.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
