SDO HMI 2014-08-04 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.80 | 13.20 | 1.76 | 8.38 | 18.17 | 181.73 | -37.56 | 68.30 | 0.6258 | -285.7 | -267.0 | |
|
previous
or next observation for the same group /

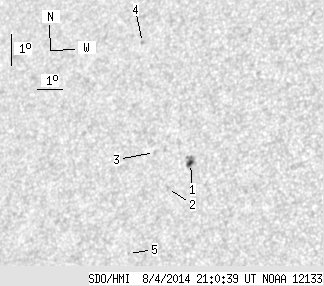

back to the solar disc SDO HMI 2014-08-04 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.80 | 7.23 | 1.76 | 4.54 | 18.01 | 182.53 | -36.76 | 68.23 | 0.6151 | -1029.5 | -716.8 | |
| 0.00 | 1.90 | 0.00 | 1.20 | 17.18 | 181.81 | -37.49 | 69.79 | 0.6218 | -529.0 | -459.2 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 18.26 | 181.02 | -38.28 | 68.38 | 0.6351 | 568.0 | 448.8 | |
| 0.00 | 1.63 | 0.00 | 1.08 | 21.64 | 179.52 | -39.78 | 63.88 | 0.6647 | 694.0 | 573.8 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 15.09 | 180.71 | -38.59 | 73.40 | 0.6307 | -567.0 | -403.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
