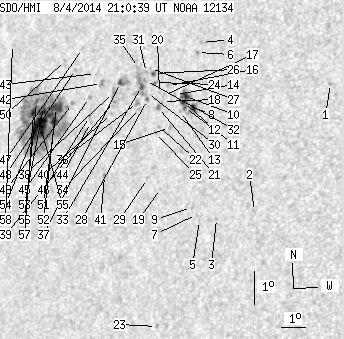

SDO HMI 2014-08-04 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.52 | 343.94 | 47.16 | 247.32 | 9.29 | 172.68 | -46.62 | 82.88 | 0.7246 | 217.1 | 175.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.83 | 10.95 | 183.02 | -36.28 | 79.69 | 0.5927 | -648.0 | -586.7 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 6.89 | 180.54 | -38.76 | 86.52 | 0.6249 | -722.0 | -643.3 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 6.58 | 179.06 | -40.24 | 86.96 | 0.6449 | -480.0 | -477.9 | |
| 0.00 | 1.36 | 0.00 | 0.90 | 11.87 | 177.71 | -41.59 | 78.89 | 0.6643 | -715.0 | -558.3 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 6.47 | 178.38 | -40.92 | 87.09 | 0.6539 | -469.0 | -430.8 | |
| 0.00 | 0.90 | 0.00 | 0.60 | 11.56 | 177.60 | -41.70 | 79.37 | 0.6654 | -767.0 | -725.0 | |
| 0.00 | 0.72 | 0.00 | 0.47 | 6.64 | 178.24 | -41.06 | 86.82 | 0.6557 | -445.0 | -420.2 | |
| 2.71 | 9.85 | 1.79 | 6.50 | 9.88 | 177.71 | -41.59 | 81.90 | 0.6628 | -971.4 | -570.5 | |
| 0.00 | 1.08 | 0.00 | 0.71 | 6.84 | 178.02 | -41.28 | 86.51 | 0.6585 | -558.0 | -460.9 | |
| 4.43 | 13.47 | 2.94 | 8.94 | 10.19 | 177.33 | -41.97 | 81.45 | 0.6679 | -899.5 | -704.5 | |
| 0.99 | -10.00 | 0.66 | -10.00 | 9.85 | 177.34 | -41.96 | 81.96 | 0.6675 | -817.5 | 999999 | |
| 2.44 | -10.00 | 1.62 | -10.00 | 10.00 | 177.28 | -42.02 | 81.74 | 0.6684 | -962.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.66 | 9.72 | 177.20 | -42.10 | 82.16 | 0.6694 | -544.0 | -477.4 | |
| 0.00 | 0.36 | 0.00 | 0.24 | 10.22 | 176.91 | -42.39 | 81.43 | 0.6733 | -328.0 | -260.2 | |
| 0.00 | 1.63 | 0.00 | 1.09 | 9.20 | 176.81 | -42.49 | 82.95 | 0.6741 | -607.0 | -490.5 | |
| 0.00 | 1.18 | 0.00 | 0.79 | 10.47 | 176.57 | -42.73 | 81.07 | 0.6777 | -576.0 | -567.2 | |
| 0.00 | 1.81 | 0.00 | 1.22 | 10.16 | 176.41 | -42.89 | 81.55 | 0.6795 | -604.0 | -501.3 | |
| 0.00 | 0.72 | 0.00 | 0.49 | 9.97 | 176.40 | -42.90 | 81.83 | 0.6796 | -710.0 | -604.2 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 7.33 | 176.68 | -42.61 | 85.73 | 0.6757 | -438.0 | -449.3 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 10.23 | 176.23 | -43.07 | 81.45 | 0.6819 | -585.0 | -502.8 | |
| 0.00 | 2.44 | 0.00 | 1.65 | 9.78 | 176.26 | -43.04 | 82.12 | 0.6813 | -751.0 | -665.9 | |
| 0.00 | 1.08 | 0.00 | 0.73 | 9.20 | 176.35 | -42.95 | 82.96 | 0.6800 | -582.0 | -475.7 | |
| 0.00 | 1.90 | 0.00 | 1.27 | 3.13 | 176.86 | -42.44 | 91.97 | 0.6764 | -626.0 | -473.0 | |
| 0.00 | 2.35 | 0.00 | 1.59 | 10.53 | 176.01 | -43.29 | 81.03 | 0.6848 | -625.0 | -461.6 | |
| 0.00 | 1.18 | 0.00 | 0.79 | 9.01 | 176.25 | -43.05 | 83.25 | 0.6812 | -503.0 | -403.8 | |
| 0.90 | 1.99 | 0.61 | 1.35 | 10.79 | 175.88 | -43.42 | 80.65 | 0.6866 | -655.3 | -516.2 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 10.94 | 175.72 | -43.58 | 80.45 | 0.6886 | -414.0 | -339.0 | |
| 0.45 | 14.82 | 0.31 | 10.15 | 9.99 | 175.76 | -43.54 | 81.83 | 0.6877 | -485.2 | 99.9 | |
| 0.00 | 1.08 | 0.00 | 0.73 | 7.59 | 176.11 | -43.19 | 85.33 | 0.6830 | -355.0 | -326.7 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 10.17 | 175.73 | -43.57 | 81.57 | 0.6881 | -27.0 | -96.1 | |
| 0.00 | 1.45 | 0.00 | 0.99 | 10.80 | 175.58 | -43.72 | 80.66 | 0.6904 | -269.0 | -245.4 | |
| 0.00 | 1.90 | 0.00 | 1.30 | 10.56 | 175.58 | -43.72 | 81.01 | 0.6902 | -301.0 | -282.1 | |
| 1.63 | -28.00 | 1.11 | -28.00 | 10.36 | 175.44 | -43.86 | 81.30 | 0.6918 | 93.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.80 | 9.69 | 175.47 | -43.83 | 82.27 | 0.6912 | -429.0 | -347.7 | |
| 0.00 | 1.99 | 0.00 | 1.37 | 10.93 | 175.21 | -44.09 | 80.50 | 0.6950 | 277.0 | 172.4 | |
| 0.00 | 3.07 | 0.00 | 2.11 | 9.87 | 175.35 | -43.95 | 82.02 | 0.6927 | -178.0 | -41.4 | |
| 1.90 | 8.68 | 1.32 | 6.02 | 10.42 | 174.52 | -44.78 | 81.27 | 0.7032 | 893.6 | 609.0 | |
| 0.00 | 3.89 | 0.00 | 2.71 | 10.09 | 174.27 | -45.03 | 81.74 | 0.7061 | 951.0 | 697.7 | |
| 0.00 | 0.99 | 0.00 | 0.69 | 9.82 | 174.32 | -44.98 | 82.12 | 0.7055 | 889.0 | 714.5 | |
| 0.00 | 1.08 | 0.00 | 0.76 | 9.45 | 174.29 | -45.01 | 82.65 | 0.7057 | 720.0 | 588.2 | |
| 0.00 | 1.27 | 0.00 | 0.88 | 7.55 | 174.27 | -45.03 | 85.35 | 0.7060 | 559.0 | 551.6 | |
| 0.00 | 2.98 | 0.00 | 2.10 | 10.33 | 173.70 | -45.60 | 81.43 | 0.7132 | 842.0 | 671.6 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 10.61 | 173.38 | -45.92 | 81.05 | 0.7171 | 602.0 | 580.8 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 9.11 | 173.42 | -45.88 | 83.14 | 0.7162 | 704.0 | 585.4 | |
| 0.00 | 1.45 | 0.00 | 1.03 | 9.87 | 173.25 | -46.05 | 82.09 | 0.7184 | 678.0 | 589.9 | |
| 0.00 | 1.36 | 0.00 | 0.96 | 9.29 | 173.35 | -45.95 | 82.90 | 0.7171 | 625.0 | 542.4 | |
| 0.00 | 0.99 | 0.00 | 0.71 | 11.33 | 172.65 | -46.65 | 80.09 | 0.7261 | 605.0 | 483.1 | |
| 0.00 | 1.36 | 0.00 | 0.98 | 10.67 | 172.47 | -46.83 | 81.01 | 0.7280 | 291.0 | 273.1 | |
| 0.00 | 1.45 | 0.00 | 1.04 | 9.63 | 172.53 | -46.77 | 82.44 | 0.7270 | 784.0 | 738.8 | |
| 0.00 | 1.36 | 0.00 | 0.99 | 10.91 | 171.96 | -47.34 | 80.71 | 0.7340 | 546.0 | 472.1 | |
| 10.21 | 236.65 | 7.44 | 174.34 | 9.45 | 171.83 | -47.47 | 82.69 | 0.7352 | 922.3 | 280.8 | |
| 4.97 | -51.00 | 3.62 | -51.00 | 9.02 | 171.81 | -47.49 | 83.28 | 0.7353 | 966.5 | 999999 | |
| 1.18 | -51.00 | 0.87 | -51.00 | 9.44 | 171.23 | -48.07 | 82.72 | 0.7421 | 652.9 | 999999 | |
| 3.34 | -51.00 | 2.46 | -51.00 | 9.25 | 171.22 | -48.08 | 82.97 | 0.7422 | 778.9 | 999999 | |
| 25.94 | -51.00 | 19.12 | -51.00 | 8.82 | 171.20 | -48.10 | 83.55 | 0.7424 | 834.4 | 999999 | |
| 1.27 | -51.00 | 0.94 | -51.00 | 9.57 | 170.88 | -48.42 | 82.55 | 0.7461 | 545.5 | 999999 | |
| 3.16 | -51.00 | 2.35 | -51.00 | 9.22 | 170.81 | -48.49 | 83.01 | 0.7470 | 553.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.83 | 11.20 | 169.40 | -49.90 | 80.41 | 0.7632 | 598.0 | 476.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
